Fsb mode jumper: j10, Cpu fsb frequency jumper: j11, This jumper allows you to set the cpu fsb mode – MSI G52-M6570XA-G22 User Manual

Page 53

Text mode
Original mode

2-31

Hardware Setup

User mode

(default)

133 MHz

Safe mode

100 MHz

open

100MHz

Short

133/166MHz

MSI Reminds You...
If your computer hang while overclocking, please reset J10 to
safe mode and reboot. After rebooting, enter BIOS Setup menu
to reload the BIOS Setup Defaults and reset J10 to user mode.

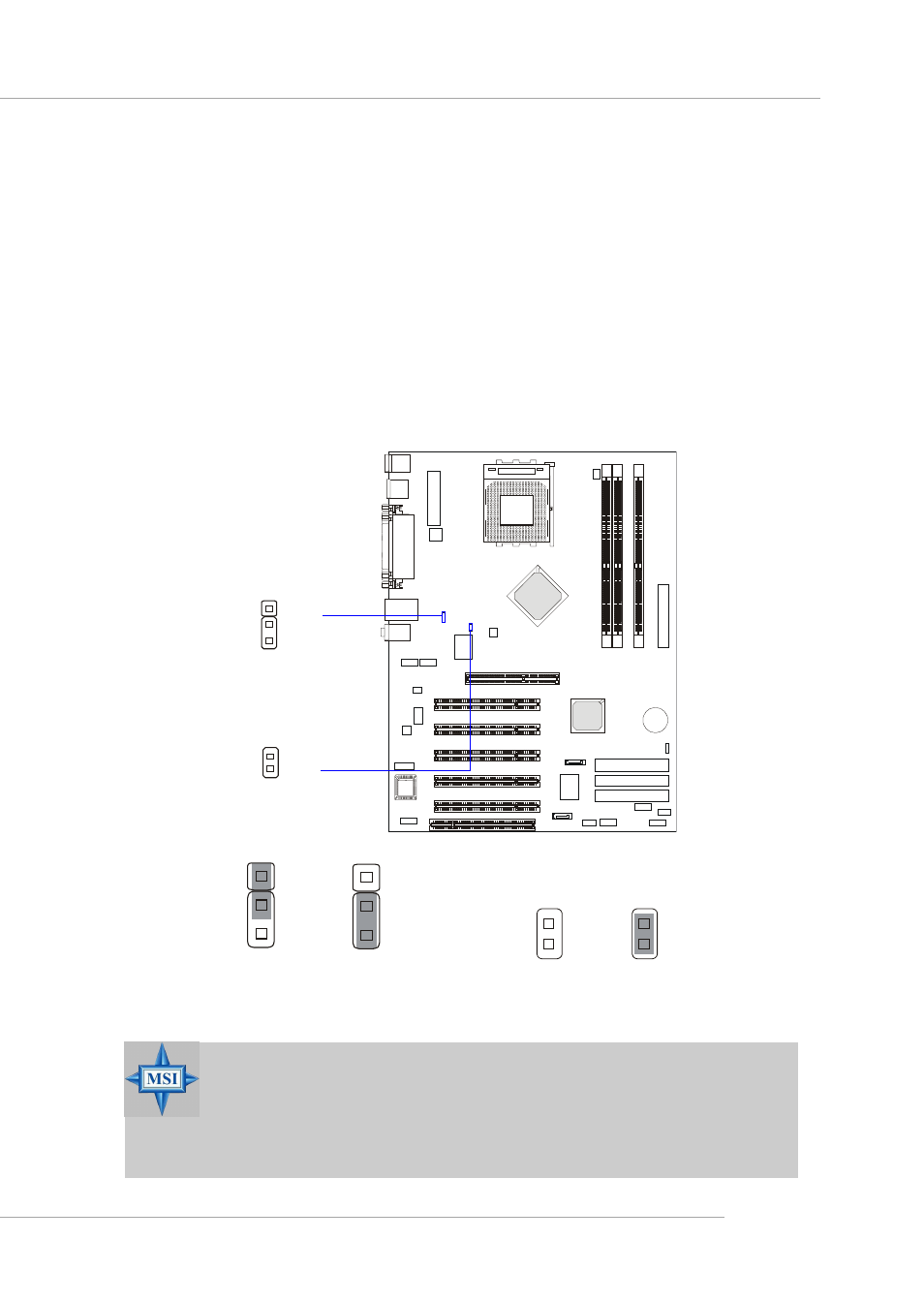

FSB Mode Jumper: J10

This jumper allows you to set the CPU FSB mode.

CPU FSB Frequency Jumper: J11

This jumper is used to specify the CPU FSB (Front Side Bus) frequency.

Leave the jumper short connected if a 133/166MHz FSB CPU is installed. If
the CPU supports 100MHz FSB, leave the jumper open connected. To use a
200MHz FSB CPU, set the jumper short connected and enter the BIOS Setup
Utility to adjust the CPU FSB Clock Frequency (see p. 3-12).

J10

J11
