3-28
MS-6570 ATX Mainboard

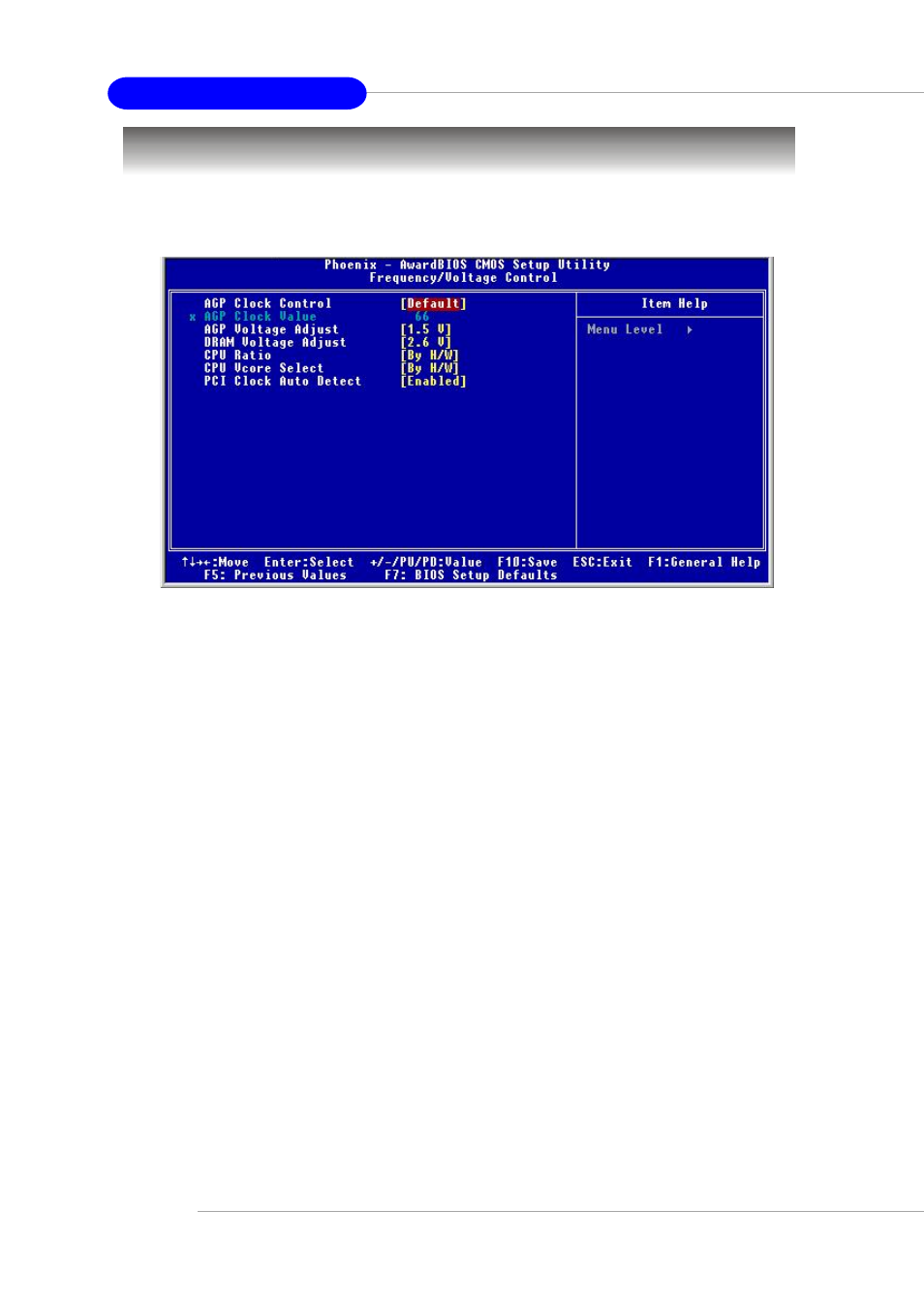

Use this menu to specify your settings for frequency/voltage control.
Frequency/Voltage Control
AGP Clock Control
This item allows users to set the AGP clock manually or by default. Options:
Default, Manual.
AGP Clock Value
When AGP Clock Control is set to Manual, users can key in a DEC number
between 66 and 120.
AGP Voltage Adjust
AGP voltage is adjustable in the field, allowing you to increase the perfor-
mance of your AGP display card when overclocking, but the stability may be
affected.
DRAM Voltage Adjust
Adjusting the DDR voltage can increase the DDR speed. Any changes made
to this setting may cause a stability issue, so changing the DDR voltage for
long-term purpose is NOT recommended.
CPU Ratio/CPU Vcore Select
The settings are used to adjust the CPU clock multiplier (ratio) and CPU core
voltage (Vcore). These settings offer users a tool to overclock the system.
