Using 4- or 6-Channel Audio Function

Using the Optional S-Bracket

S-Bracket integrates the SPDIF (Sony & Philips Digital Interface) and

analog LINE OUT connectors together. With this optional accessory, users
will be able to decide either analog or digital audio output when applying the
speakers to the connectors.

Read the following instructions to have the Multi-Channel Audio Func-

tion mode properly set in the software utility, and then have your speakers
correctly connected to the S-Bracket:

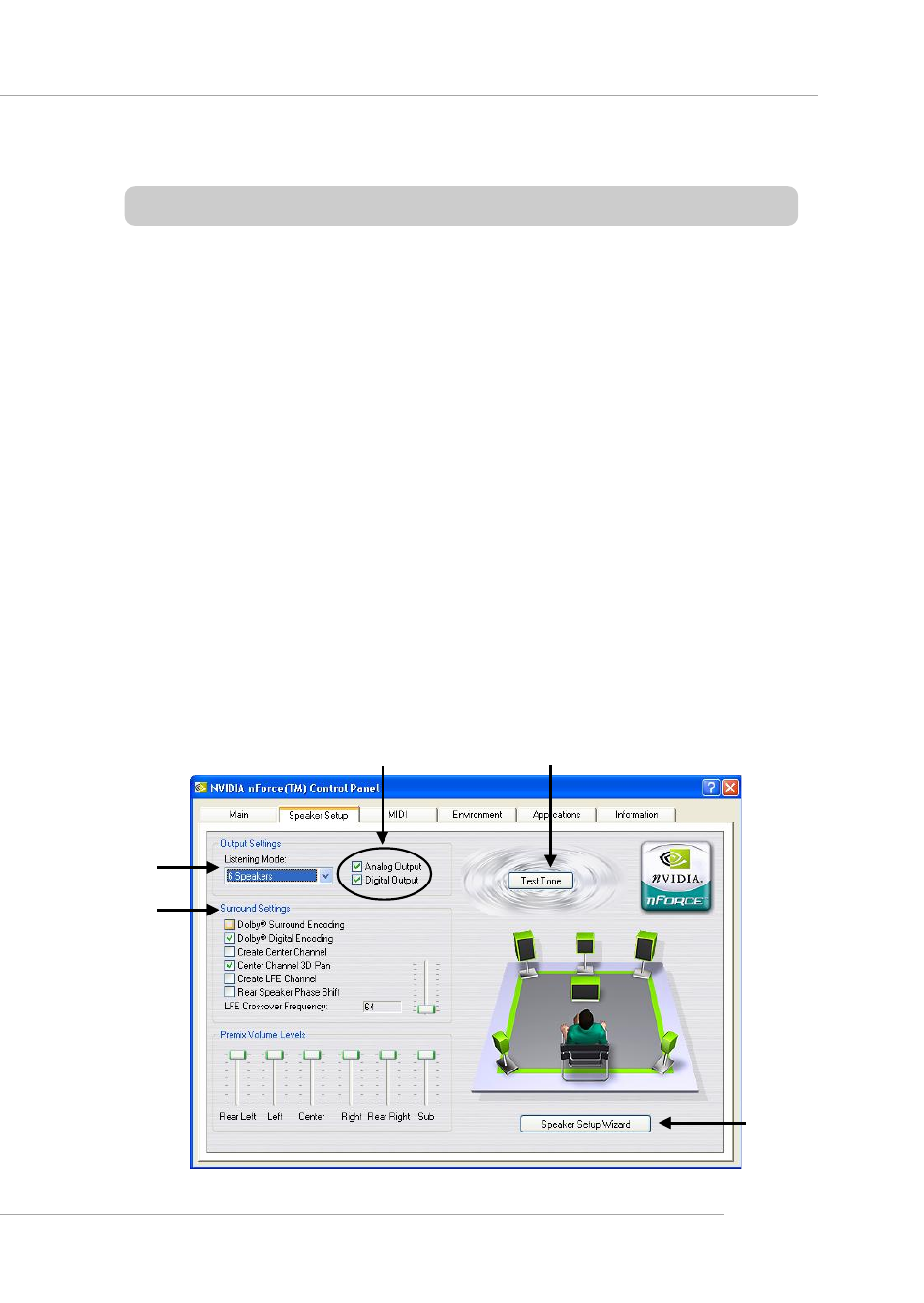

Configuration in the Software Utility

1. Click the audio icon at the lower-right corner of the screen.

2. Click the Speaker Setup tab.

3. Select a desired multi-channel operation from Listening Mode.

a. Headphones Mode for headphone Output

b. 2-Channel Mode for Stereo-Speaker Output

c. 4-Channel Mode for 4-Speaker Output

d. 6-Channel Mode for 5.1-Speaker Output

4. Select Analog Output and Digital Output when using S-Bracket.
