A-18
MS-6570 ATX Mainboard

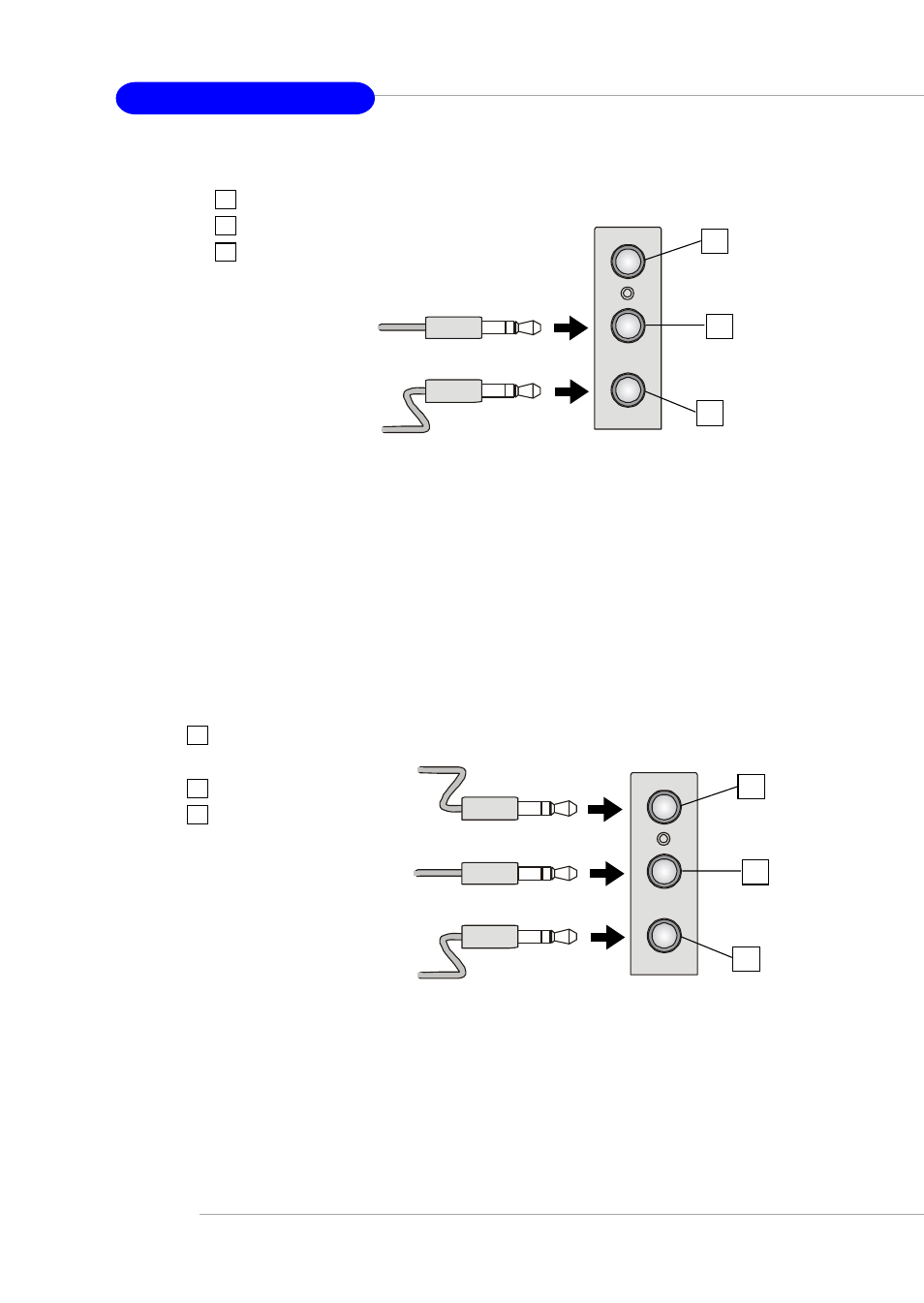

1 MIC
2 * Line Out (Rear channels)
3 Line Out (Front channels)
* Line In function is converted to Line Out function when 4-Channel Mode for
4-Speaker Output is selected.
Back Panel
2
3
1
1 Line Out (Center and
Subwoofer channel)
2 Line Out (Rear channels)
3 Line Out (Front channels)
* Both Line In and MIC function are converted to Line Out function when 4-
Channel Mode for 6-Speaker Output is selected.
„ 6-Channel Mode for 6-Speaker Output
Refer to the following diagram and caption for the founction of each
jack on the back panel when 6-Channel Mode is selected.
Back Panel
2
3
1
*
*
