MS-6570 ATX Mainboard

Integrated Peripherals

IDE Function Setup

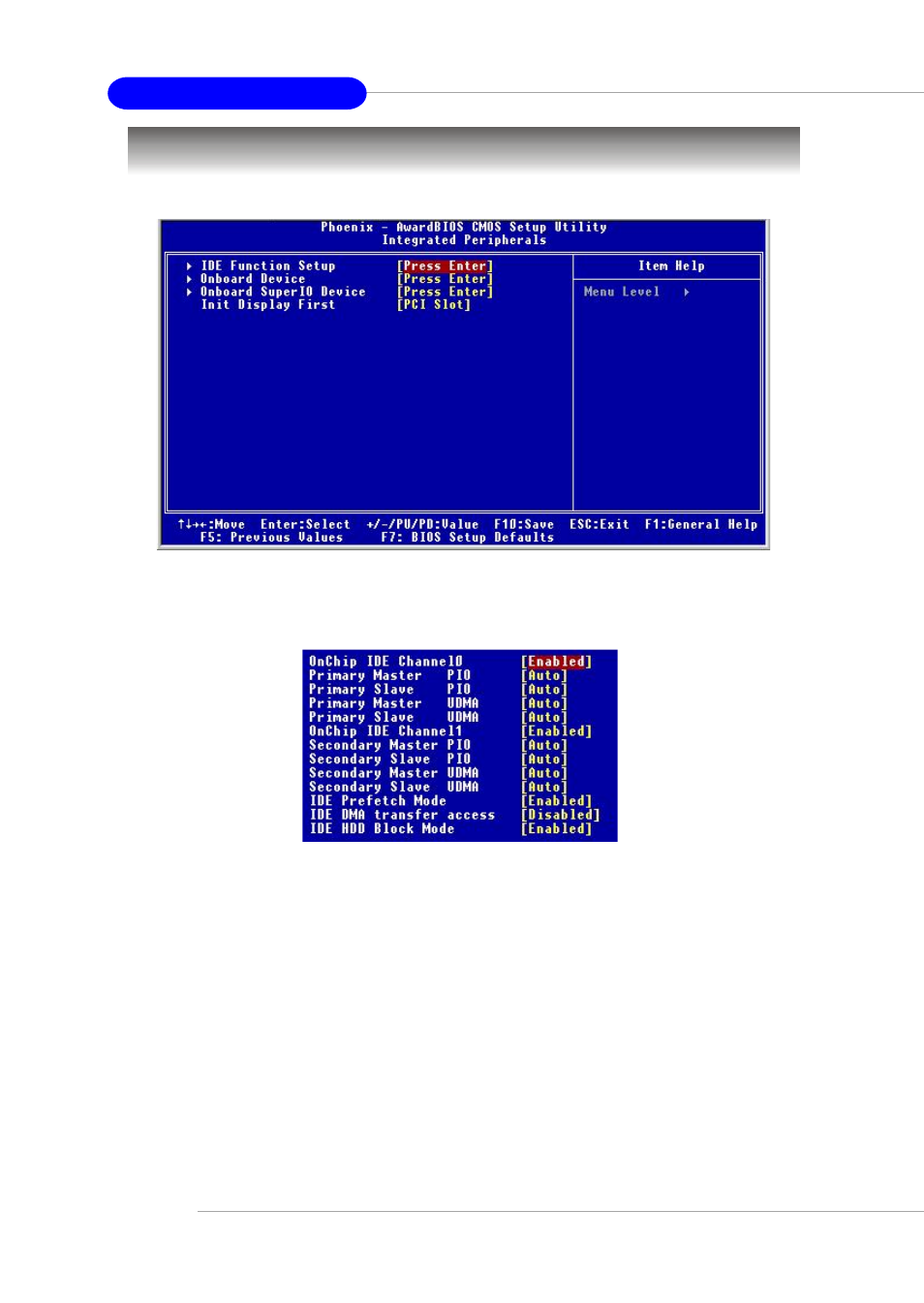

Press to enter the sub-menu and the following screen appears:

OnChip IDE Channel 0/1
The integrated peripheral controller contains an IDE interface with support
for two IDE channels. Choose [Enabled] to activate each channel
separately. Settings: Enabled, Disabled.

IDE Primary/Secondary Master/Slave PIO
The four IDE PIO (Programmed Input/Output) fields let you set a PIO
mode (0-4) for each of the four IDE devices that the onboard IDE interface
supports. Modes 0 through 4 provide successively increased performance.
In Auto mode, the system automatically determines the best mode for
each device. The settings are: Auto, Mode 0, Mode 1, Mode 2, Mode 3,
Mode 4.
