Adding paper, Toner and Staples
96
6
Note
❒ When performing the auto color calibration from the copy function, press
[Start] under Copier Function. When performing from the printer function,
press [Start] under Printer Function.
❒ The test pattern will not be read if it is set in the ADF.
❒ When performing the auto color calibration from the printer function, se-
lect test patterns from [600 × 600 dpi], [1800 × 600 dpi] and [2400 × 600 dpi] and
then press [Start Printing].
❒ The test pattern will be printed on an A4K, 8 1 /
2
”× 11”K size page (If
A4K is not available then A3 L, B4 JISL will be used.). Make sure to
check the paper set in the paper tray.

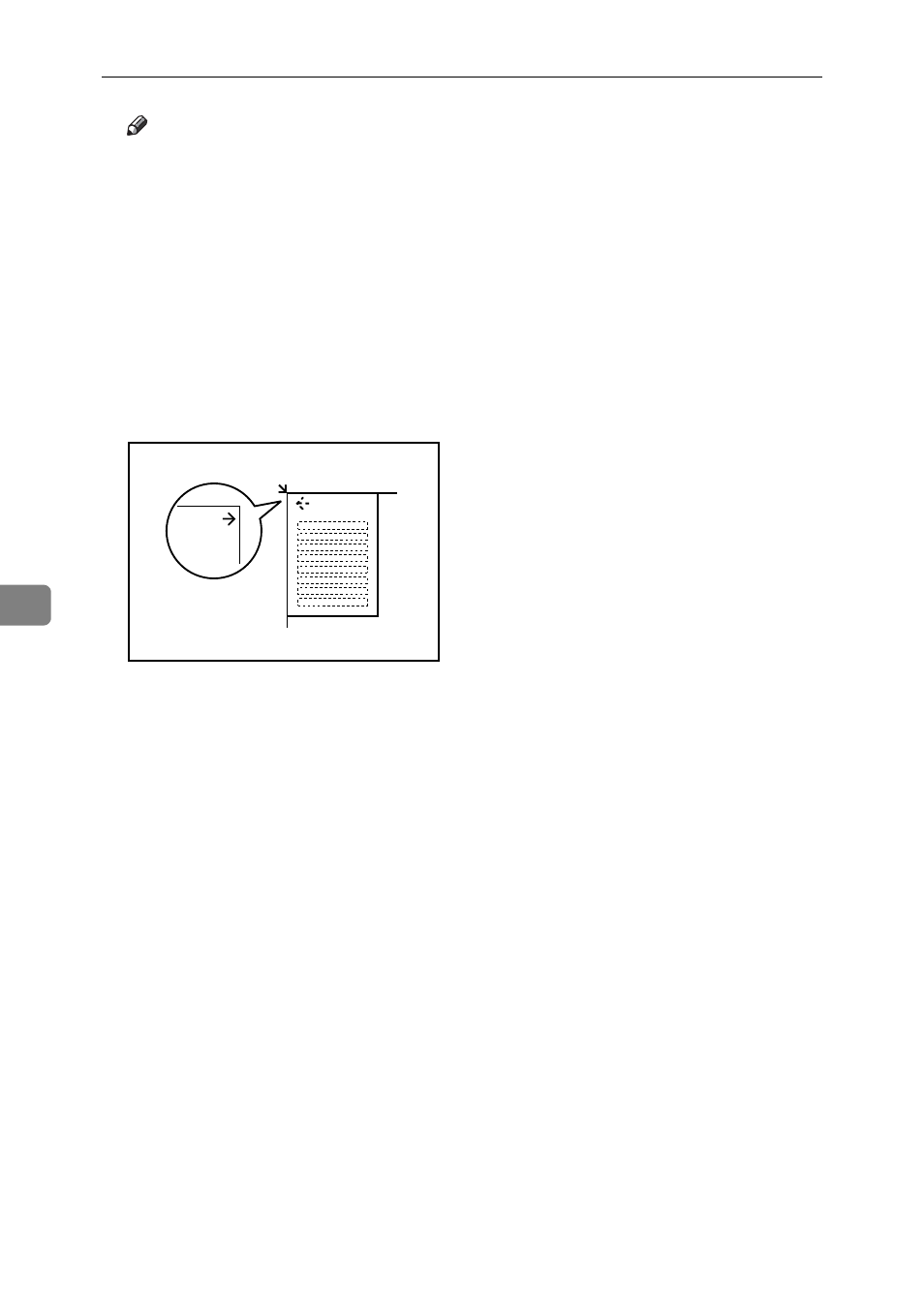

❒ Set the test pattern in the following way:
❒ When the ADF is installed, make sure to set the test pattern on the expo-
sure glass, and then 2 or 3 white sheets, same size as the test pattern, above
the test pattern.
GCCLCPIE
