Quick Start Instructions MultiVOIP User Guide
52

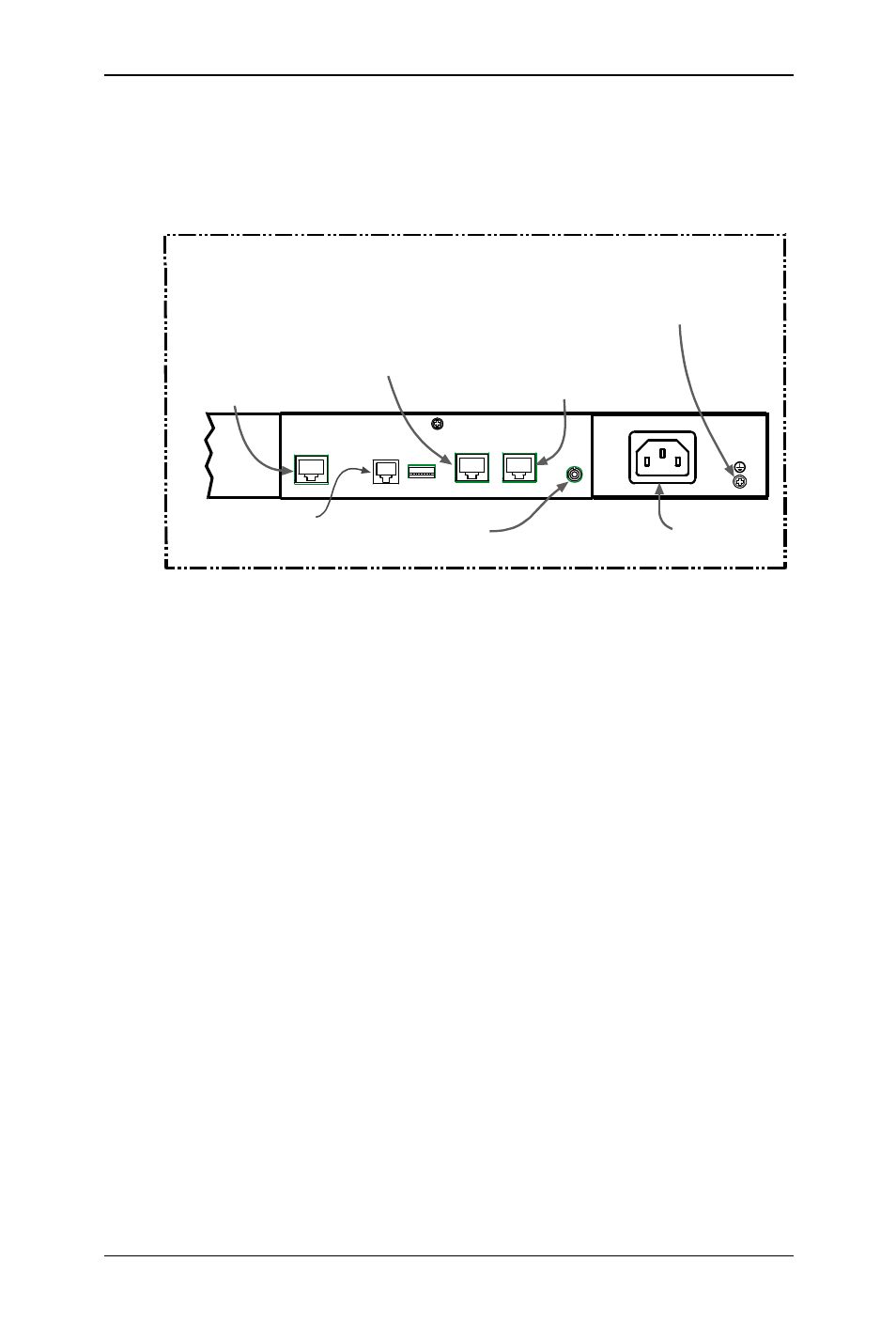

Quick Hookups
Hookup for MVP2410 & MVP3010
Digital Voice
Trunk O
l
10 /100 RS-232
Ethernet Command
Cabling to your IP network.
RJ-45 connector.
T1/E1/PRI cabling to your PBX,
and/or to the PSTN.
RJ-45 connector.
On/Off Switch Power Cable
Receptacle
Cabling to computer running
MultiVOIP software.
RJ-45 to serial connector (DB9).
Grounding
Screw
T1/E1 MultiVOIP Hookup
(MVP-2410/3010)
Cabling to POTS line
(RJ-11 connector) for remote
configuration via the built-in
modem.
Command
Modem
