MultiVOIP User Guide Quick Start Instructions
53
Hookup for MVP410 & MVP810
E&M FXS/FXO E&M FXS/FXO E&M FXS/FXO E&M FXS/FXO
E&M FXS/FXO E&M FXS/FXO E&M FXS/FXO E&M FXS/FXO
Grounding
Screw:
Connect to
Earth Ground
On/Off
Switch
Power Cable
Receptacle
Cabling to your IP network.
RJ-45 connector.
Cabling to computer running
MultiVOIP software.
Connector at MultiVOIP: DB-25.
Connector at computer: DB-9.
Cabling to phone equipment.
MVP810 has 8 connector pairs.
MVP410 has 4 connector pairs.
Only 1 connector of any pair is
used at a time.

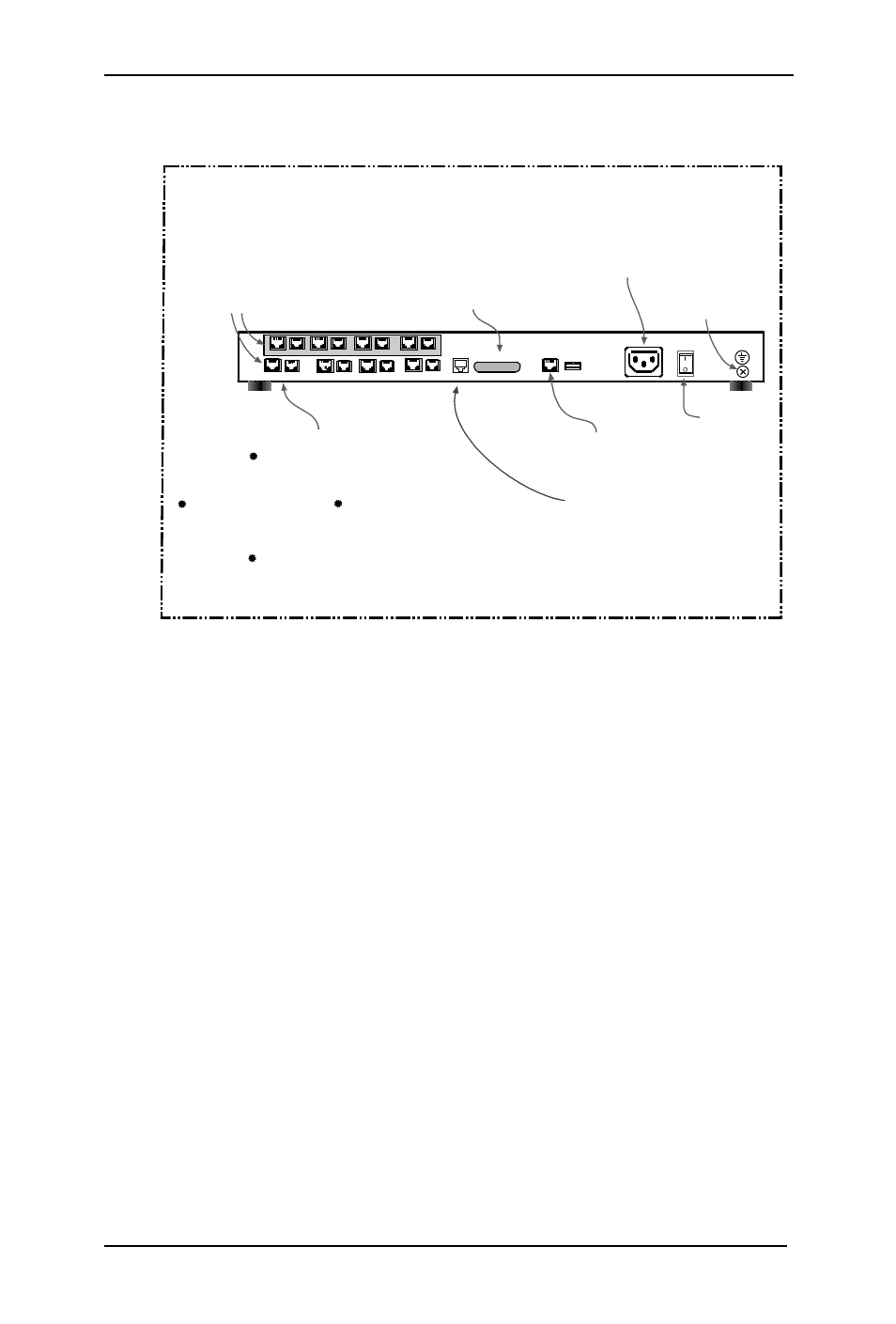

Analog MultiVOIP Hookup
MVP-410/810
E&M (RJ-45 connector):
connects to E&M trunk line
from PBX or telco office.
FXS (RJ-11 connector):
connects to phone, fax,
or key phone system.
FXO (RJ-11 connector):
connects to analog phone line
or analog PBX extension.
Cabling to POTS line,
for remote configuration.
RJ-11 connector.
Command
Modem
DID-DPO (RJ-11 connector):
connects to DID line
from telco office. DPO functionality
not yet supported.
Ethernet Command
