Quick Start Instructions MultiVOIP User Guide
54

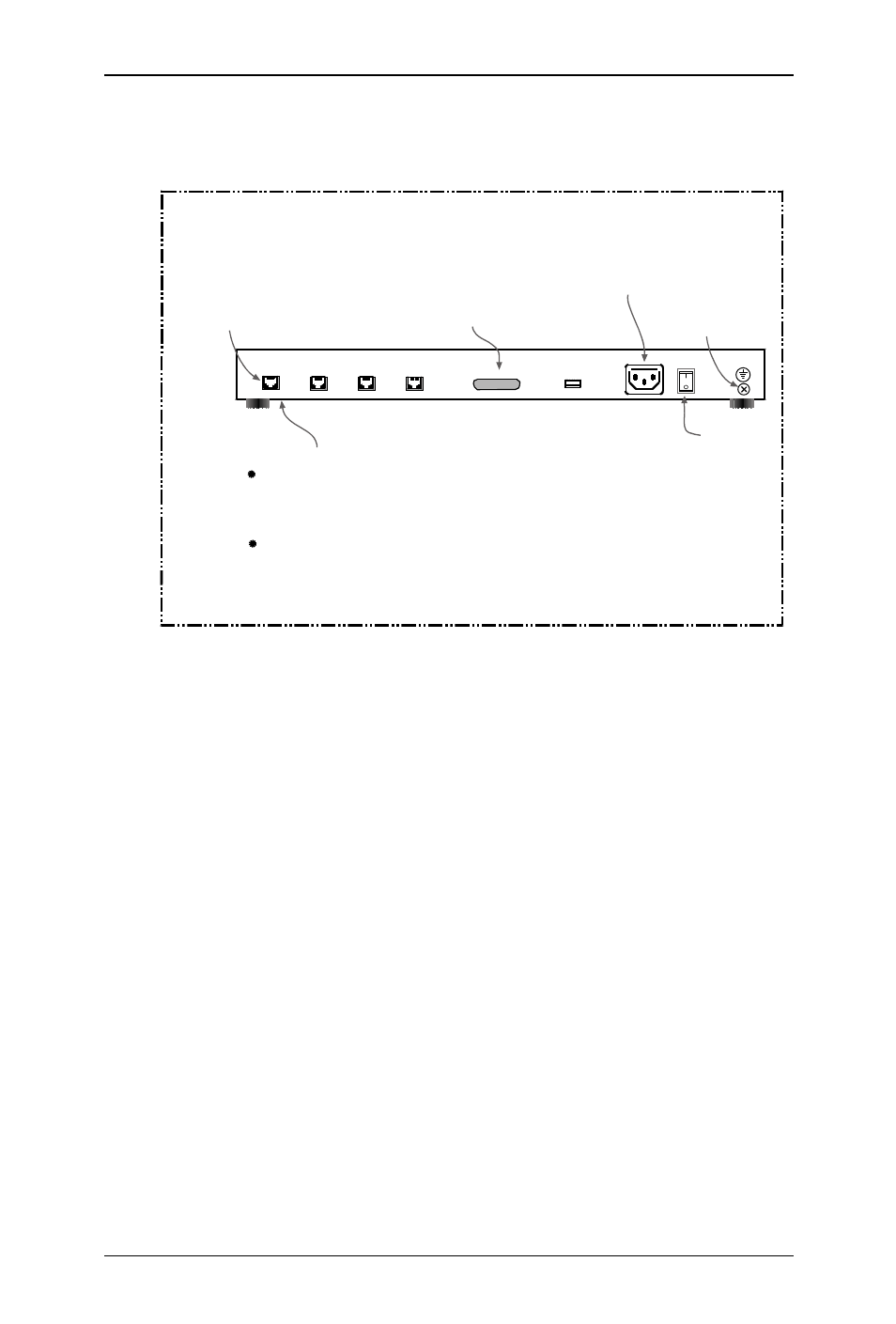

Hookup for MVP410ST & MVP810ST
Grounding
Screw:
Connect to
Earth Ground
On/Off
Switch
Power Cable
Receptacle
Cabling to computer running
MultiVOIP software.
Connector at MultiVOIP: DB-25.
Connector at computer: DB-9.
Cabling to phone equipment.
MVP810ST has 4 ISDN connectors.
MVP410ST has 2 ISDN connectors.
ISDN MultiVOIP Hookup
MVP-410ST/810ST
ISDNn (RJ-45 connector):
connects to ISDN BRI line
from PBX or telco office.
Or connects to ISDN phone
or terminal adapter.
NT1 Device required between
voip interface (ports ISDN1 - ISDN4)
and network equipment with
“U” interface. Not needed for
connection to network equipment
with “S/T” interface.
Command ISDN1 ISDN2 ISDN3 ISDN4
