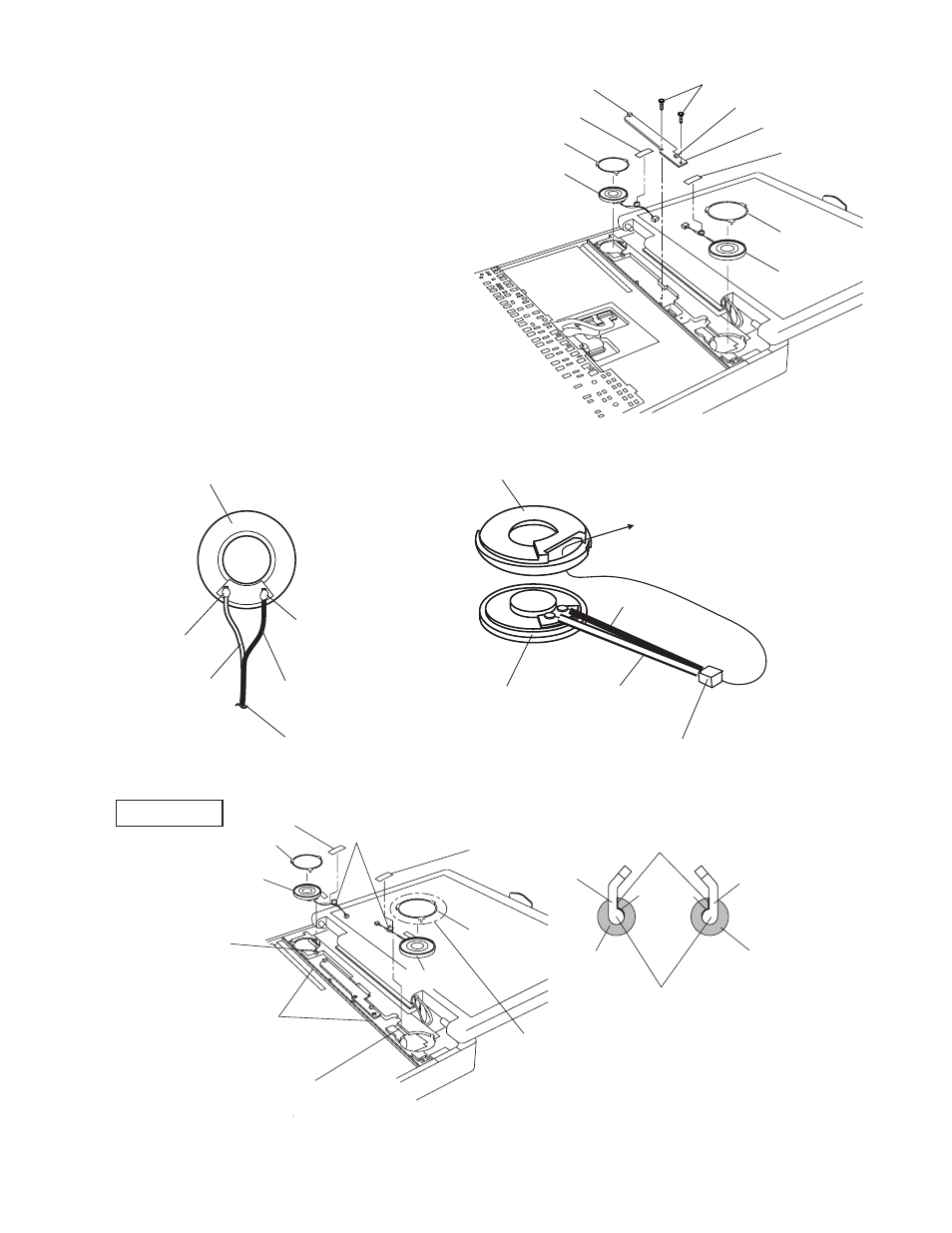

9.2.14. Setting the Speaker and the LED PCB
1. Fix the LED PCB using the two Screws.
2. Set the Speaker L and R to the computer.
3. Connect the Speaker Cable L and R to the two Connec-
tors (CN1002, CN1003) on the LED PCB.
4. Fix the Speaker Cable L and R using the Tape.
5. Fix the Speaker L and R using the Speaker Holder.
Note:
Ensure the three Hooks of the Speaker Holder are securely
set in the computer.
Screws : DFHE5025XA
Q Soldering the Speaker Cable and Setting the Speaker Rubber
Q Cautions for Setting the Speaker
Speaker
Holder
Speaker
Holder
CN1002
Tape
Tape
CN1003
LED PCB
Speaker L
Speaker R
Speaker
Speaker Rubber
Speaker
Speaker Cable
White Line
Red Line
White Line Red Line
Speaker Cable
Soldering
Soldering
Speaker
Holder
Tape
Speaker L
Speaker
Holder
Tape
Speaker R
Pass the Speaker Cables
through the notch.
(Avoid running over.)
Set as the loop of the Speaker Cable
is on the upper side.
Ensure the Cable does not
touch the Steel Plate.
Pass the Speaker Cables through the notch.
(Avoid running over.)
Safety Working
SP Conductive
Cloth R
SP Conductive
Cloth L
Speaker L Speaker R
Securely attach the SP Conductive Cloth
to the round frame of the Speaker.
Fit to the stand wall.
Fit to
the corner.
Ensure the Hooks are
securely set in. (3 points)
