9-14

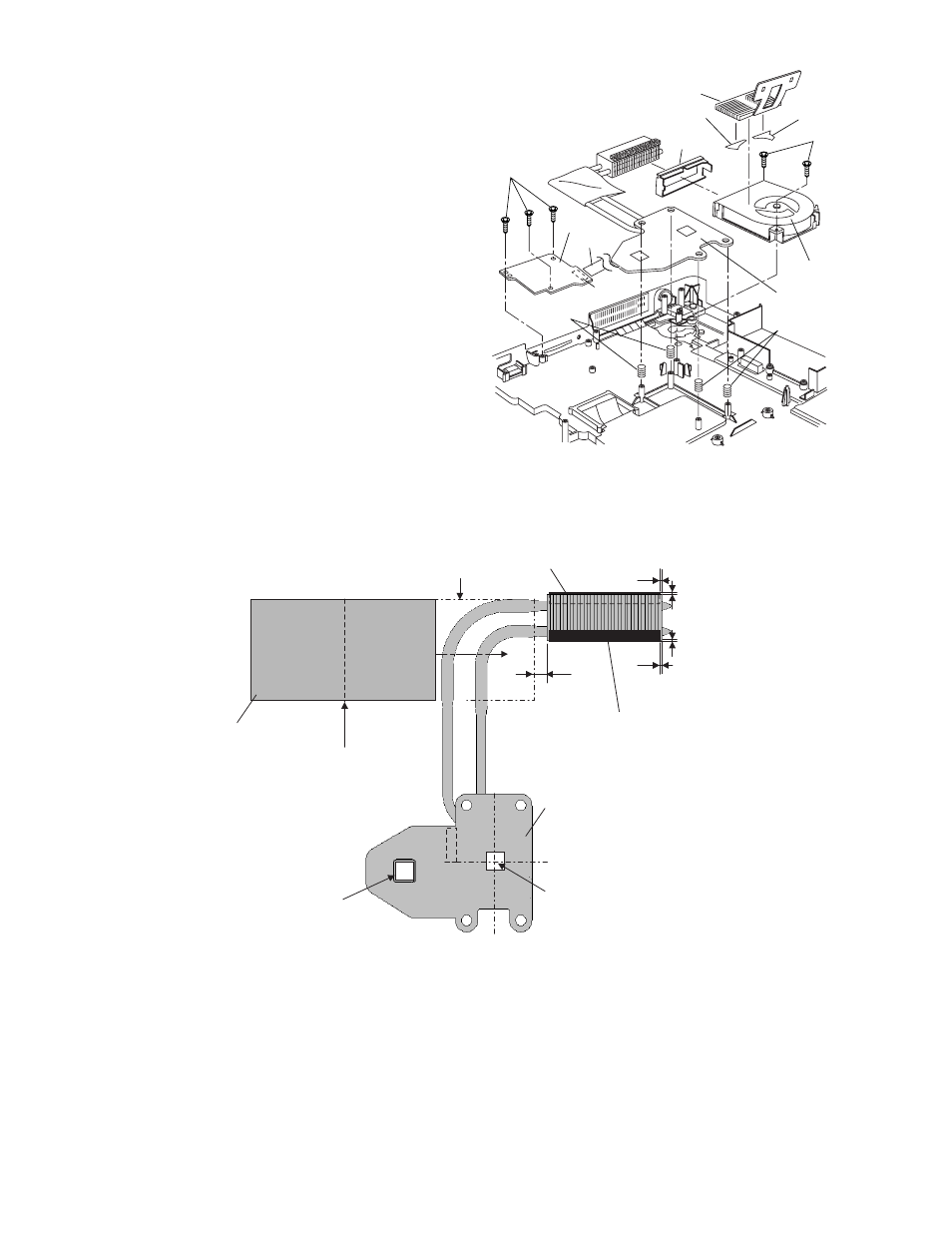

9.2.7. Setting the SD PCB, Heat Sink and FAN Motor
1. Connect the SD FFC to the Connector (CN1401).
2. Fix the SD PCB to the computer using the three
Screws.
3. Set the Heat Sink, Fan Duct and the four Heat Sink
Springs.
4. Fix the FAN Motor to the computer using the two
Screws.
5. Attach the Fan Tape 1 and 2 on the FAN Motor, and fix
the Cable Holder on them.
Screws : DXSB2+6FNL
Screws : DFHE5025XA
Q Applying Grease on the Heat Sink
1. Apply grease on two points of the Heat Sink.
2. Attach the Pipe Sheet on the Heat Pipe.
Cable Holder
FAN Motor
Heat Sink
Fan Duct
Fan Tape1 Fan Tape2
Heat Sink
Spring Heat Sink
Spring
SD PCB
CN1401
SD FFC
Grease is applied.
Fan Dust Sheet
Fan Dust Sheet
0~1mm
G751(10mmX10mmXt0.3)
Grease is applied.
G751(10mmX10mmXt0.3)
0~1mm
0~1mm
0~1mm
5~10mm
Pipe Sheet
Heat Sink
(Attach the Fan Duct Sheet
to the back side.)
Match the end of the Pipe Sheet.
(0 ~ -2mm)
Fold on the center line
and attach it.
