9-19

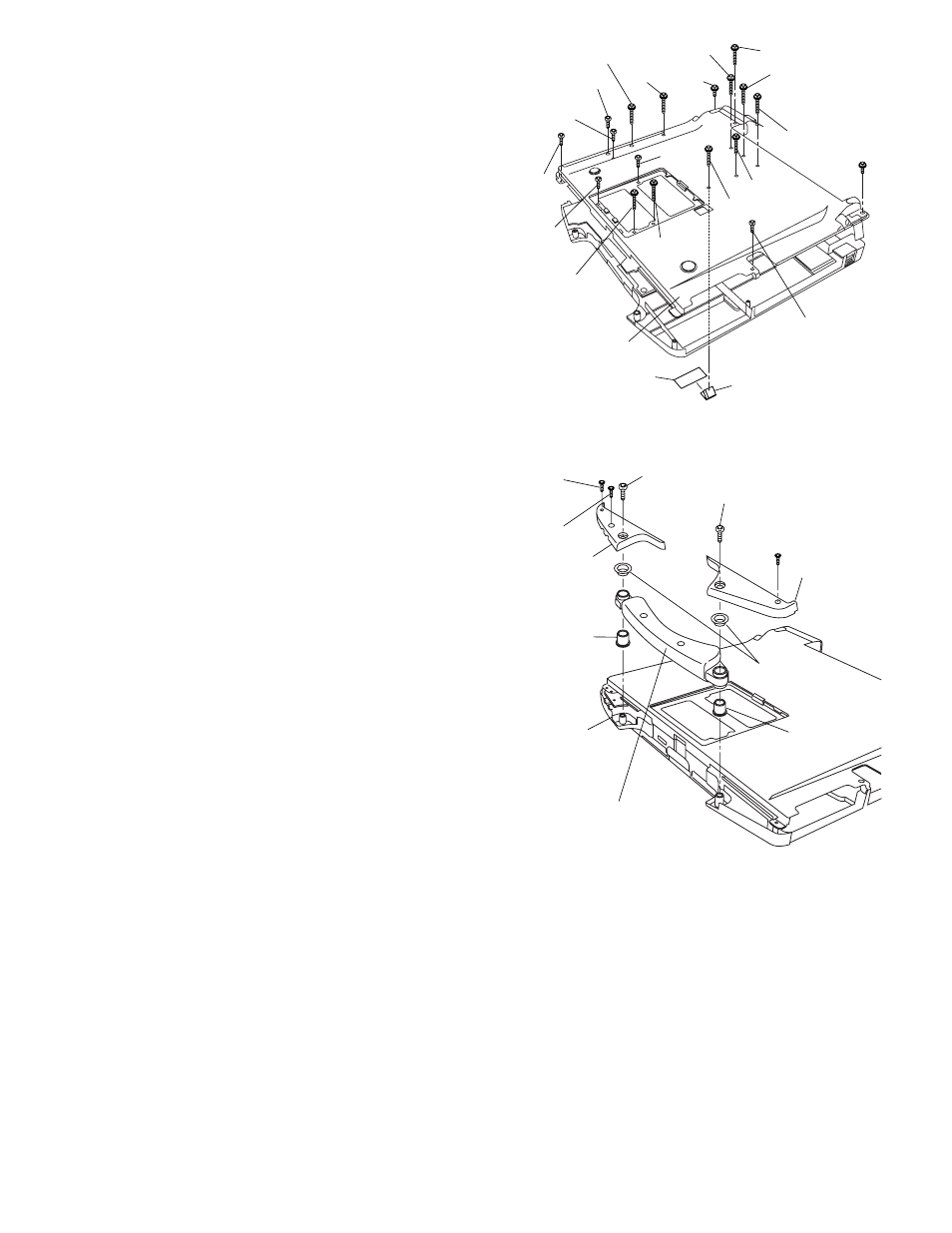

9.2.12. Setting the Bottom Case
1. Attach the Gasket and Sheet.
2. Set the Bottom Case.
3. Fix the Bottom Case using the ten Screws. No1 to
No10
4. Fix the Bottom Case using the six Screws. No11 to
No16
5. Fix the Bottom Case using the two Screws. No17,
No18
6. Close the Lid Covers.
Note:
Tighten the Screws in the numbered order (No1 to No18).
Screws : DXSB2+6FNL
Screws : DXYN2+J16FNL
Screws : DXYN2+J8FNL
9.2.13. Setting the Handle Ass'y
1. Set the two Sleeves A, the Handle Ass'y and the two
Sleeves B.
2. Fix the Handle Cover L and R using the two Screws.
No1, No2
3. Fix the Handle Cover L and R using the three
Screws. No3 to No5
Note:
Tighten the Screws in the numbered order (No1 to No5).
Screws : DRHM4+10FKS
Screws : DRSB2+6FKL
:No10
:No1
:No18
:No17
:No16
:No11
Bottom Cover
:No2
:No6
:No7
:No3
:No4
:No8
:No5
:No9
:No15
:No13
:No12
:No14
Sheet
Gasket
Handle Cover R Handle Cover L
Handle Ass’y
Sleeves B
Sleeves A
Sleeves A
:No4
:No3
:No1
Top Case
:No2
:No5
