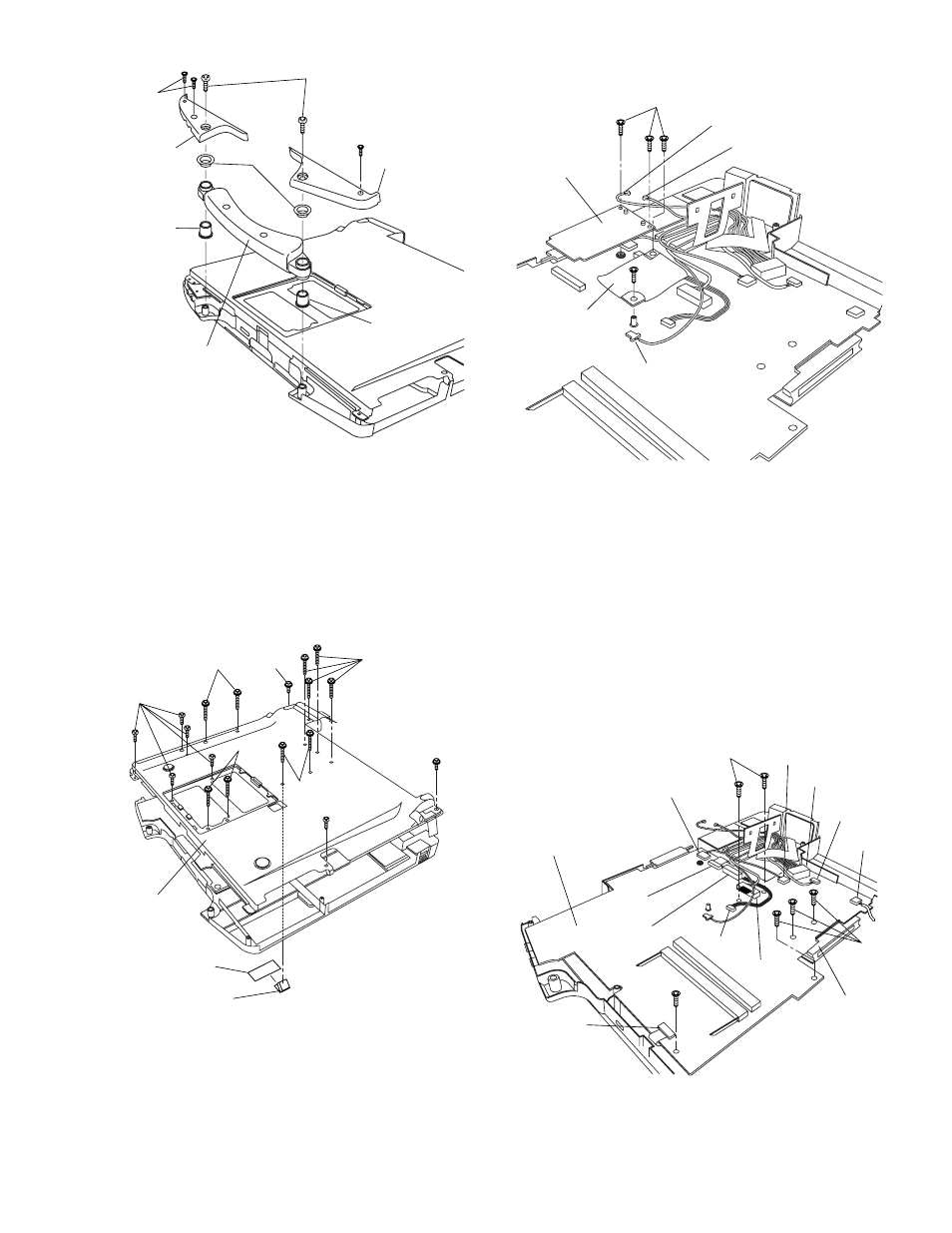

9.1.7. Removing the Handle Ass'y
1. Remove the two Screws .
2. Remove the three Screws , and remove the Handle
Cover L and R.
3. Remove the two Sleeves A, Handle Ass'y and two
Sleeves B.
Screws : DRHM4+10FKS
Screws : DRSB2+6FKL
9.1.8. Removing the Bottom Case
1. Remove the six Screws .
2. Remove the ten Screws .
3. Remove the two Screws .
4. Open the Lid Rubbers and remove the Bottom Cover.
5. Remove the Sheet and Gasket.
Screws : DXSB2+6FNL
Screws : DXYN2+J16FNL
Screws : DXYN2+J8FNL
9.1.9. Removing the Wireless Module and
MDC Module
1. Remove the two Antenna Cables from the two Connec-
tors.
• Antenna Cable (Black): MAIN Connector
• Antenna Cable (Gray): AUX Connector
2. Remove the two Screws .
3. Remove the Wireless Module.
4. Remove the two Screws .
5. Disconnect the Modem Cable from the Connector.
6. Remove the MDC Module.
Screws : DFHE5025XA
9.1.10. Removing the Main PCB
Handle Cover R Handle Cover L
Handle Ass’y
Sleeves B
Sleeves A
Sleeves A
Bottom Cover
Sheet
Gasket
Antenna Cable (Black)
Antenna Cable (Gray)
MDC Module
Wireless Module
Modem Cable
CN6
CN7
CN24
CN19
CN28
CN21
CN802
CN18
CN15
CN26
Main PCB
MP Guide
