8 wiring connection diagram, 8wiring connection diagram, Dc-in pcb usb pcb – Matsushita CF-74ECBAXBM User Manual

Page 22: Led pcb sd pcb i o pcb ts pcb lcd, Main pcb pad sw pcb, Finger sensor pcb

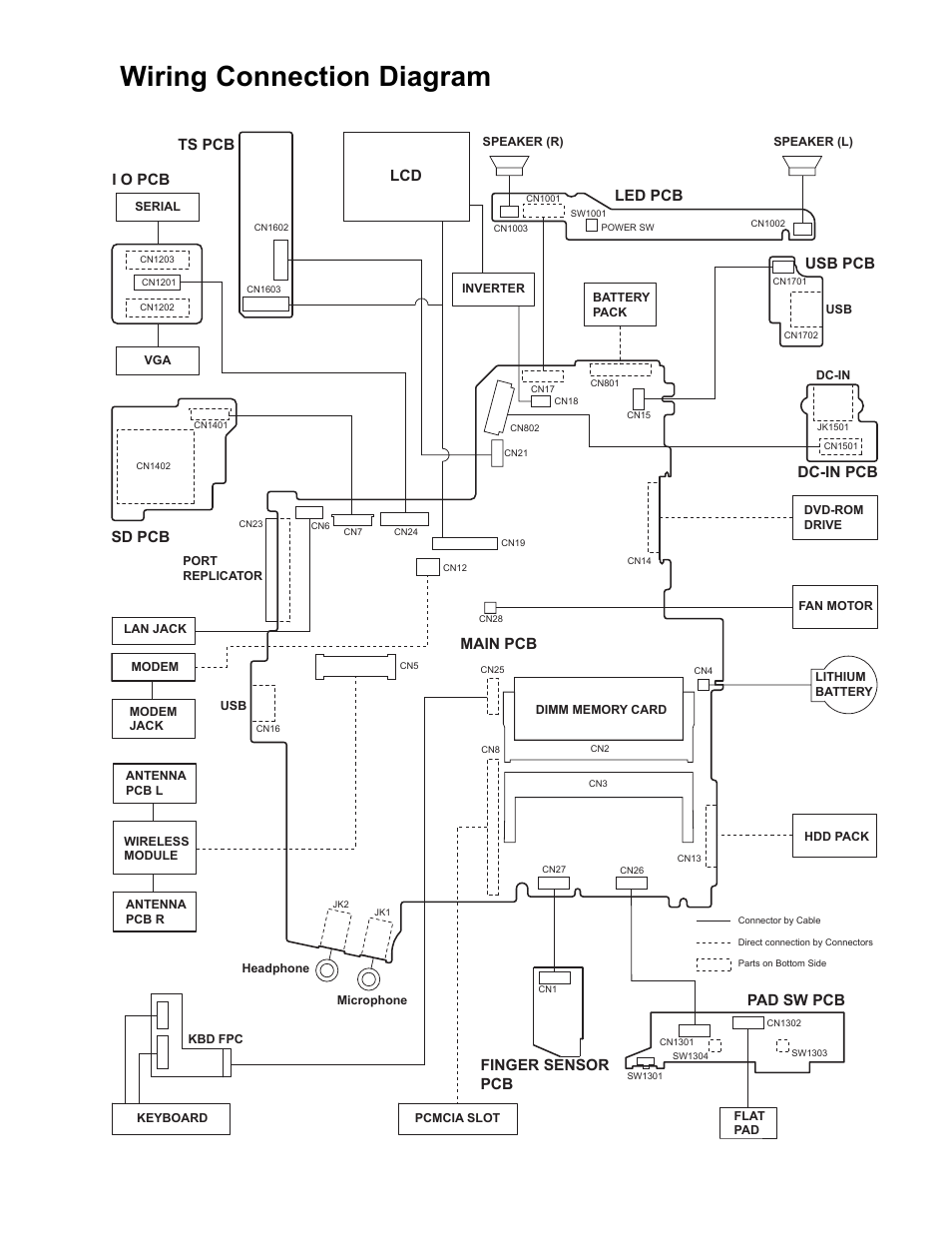

8 wiring connection diagram, 8wiring connection diagram, Dc-in pcb usb pcb | Led pcb sd pcb i o pcb ts pcb lcd, Main pcb pad sw pcb, Finger sensor pcb | Matsushita CF-74ECBAXBM User Manual | Page 22 / 50 8 wiring connection diagram, 8wiring connection diagram, Dc-in pcb usb pcb | Led pcb sd pcb i o pcb ts pcb lcd, Main pcb pad sw pcb, Finger sensor pcb | Matsushita CF-74ECBAXBM User Manual | Page 22 / 50
