qFuse Panel Description

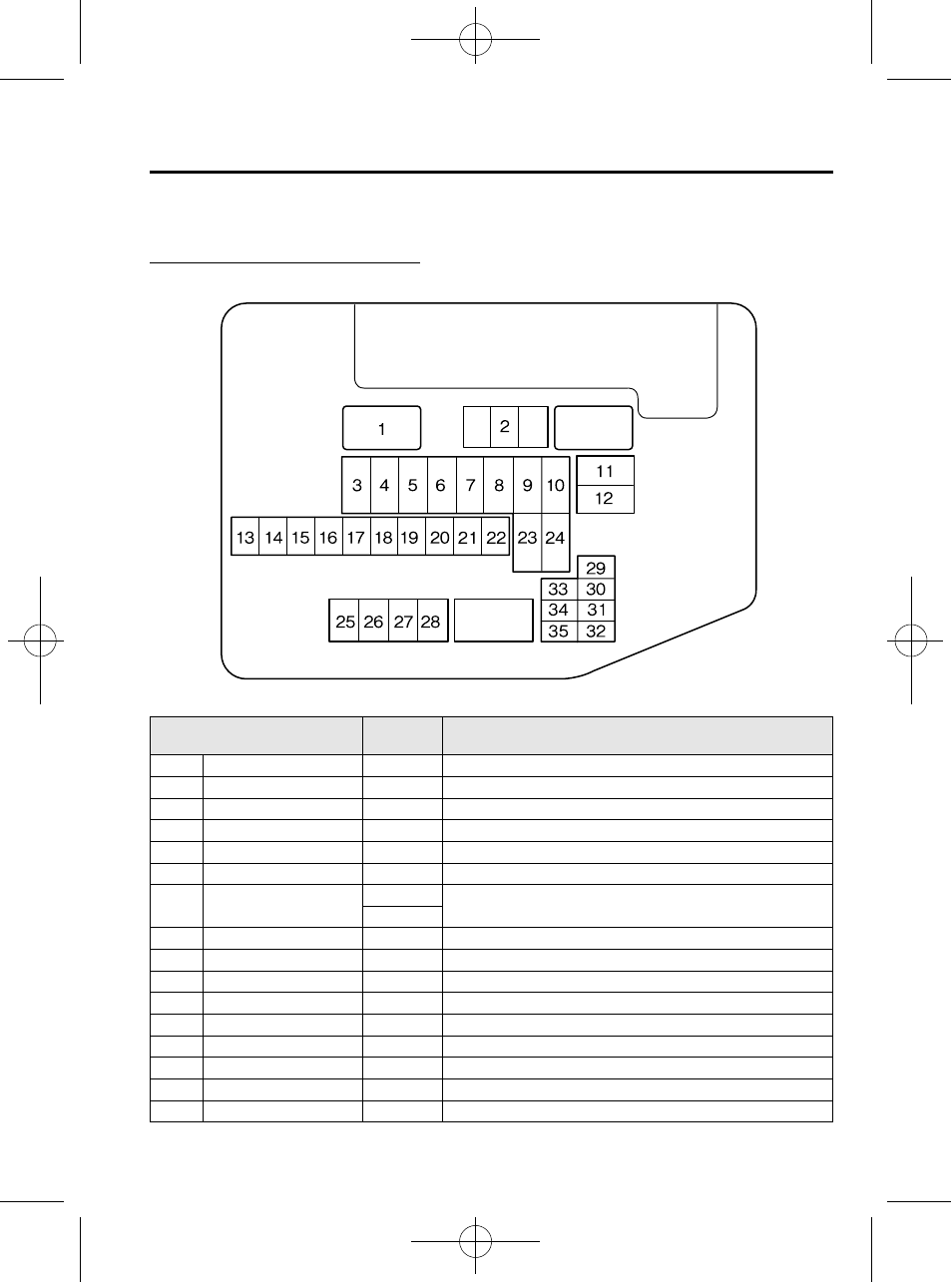

Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 MAIN 150A For protection of all circuits
2 ENGINE 20A Transaxle control system
3 R HEATER 40A Heater
4 P.SEAT R 30A Power seat (RH)
í
5 HEATER 50A Heater
6 IGKEY2 40A For protection of various circuits
7 FAN1
30A
í
Cooling fan
40A
í
8 P.SEAT L 40A Power seat (LH)
í
9 DEFOG 30A Rear window defroster
10 BTN 40A For protection of various circuits
11 FUEL PUMP 30A Fuel pump
12 IGKEY1 30A For protection of various circuits
13 FOG 15A Fog lights
í
14 ABS (SOL) 30A ABS solenoid
15 D/L 25A Power door locks
16 ROOM 15A Overhead light
Maintenance and Care
Owner Maintenance
8-47 í
Some models.
