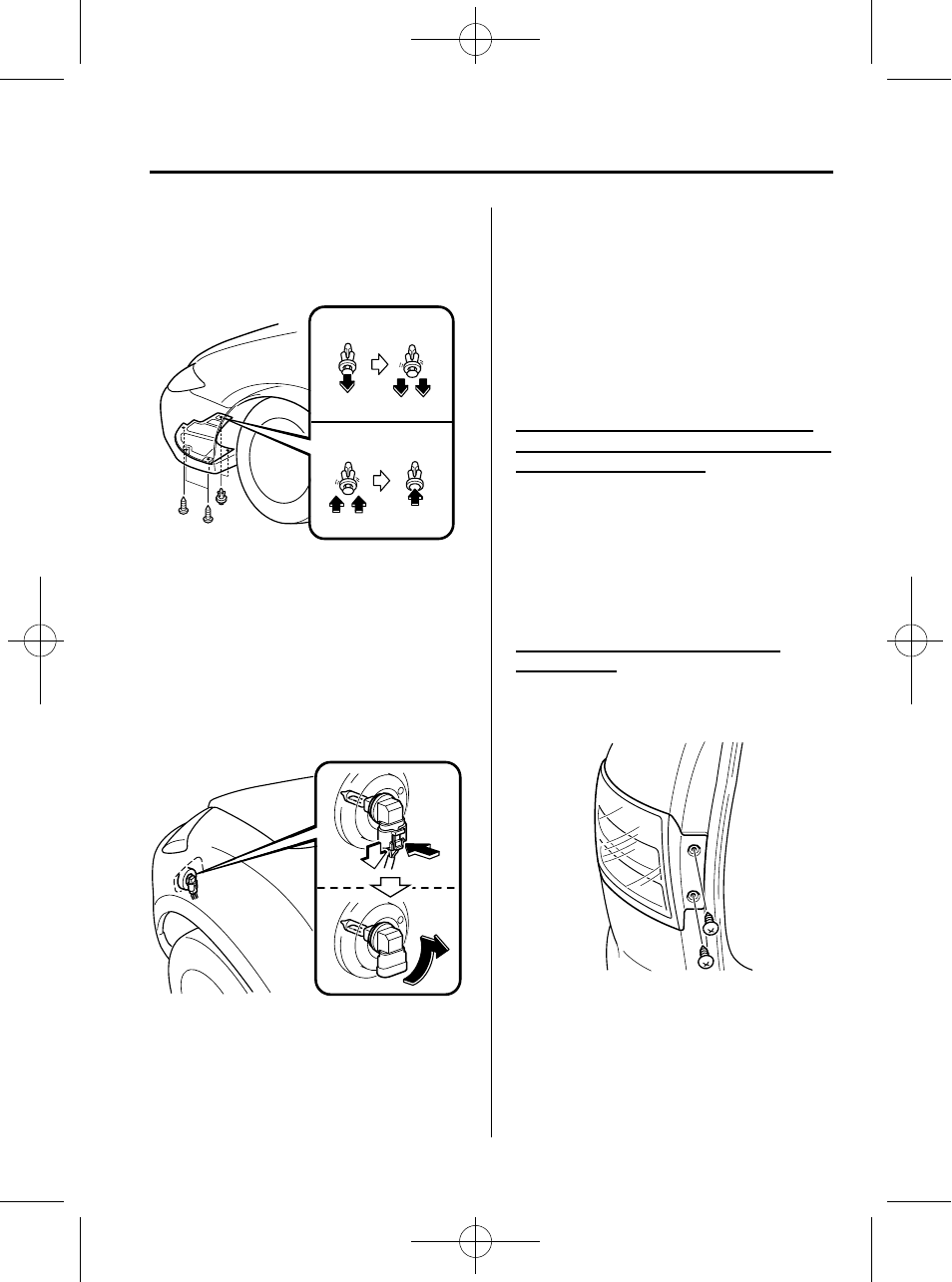

3. Turn the screws and the center section
of the plastic retainers
counterclockwise and remove them,
then remove the mudguard.
Removal
Installation
4. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
5. Turn the socket and bulb assembly
counterclockwise and remove it.
Carefully remove the bulb from its
socket in the reflector by gently pulling
it straight backward out of the socket.
6. Install the new bulb in the reverse order
of removal.
NOTE
l To replace the bulb, contact an Authorized
Mazda Dealer.
l If the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
l Use the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
Side turn signal lights
í
, Brake lights,
Taillights (Rear combination light side),
High-mount brake light
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible. The
rear combination component must be replaced.
Rear turn signal lights/Rear side-
marker light
1. Turn the bolts counterclockwise and
remove them.
Maintenance and Care
Owner Maintenance
8-41 í
Some models.
