qControl Switches

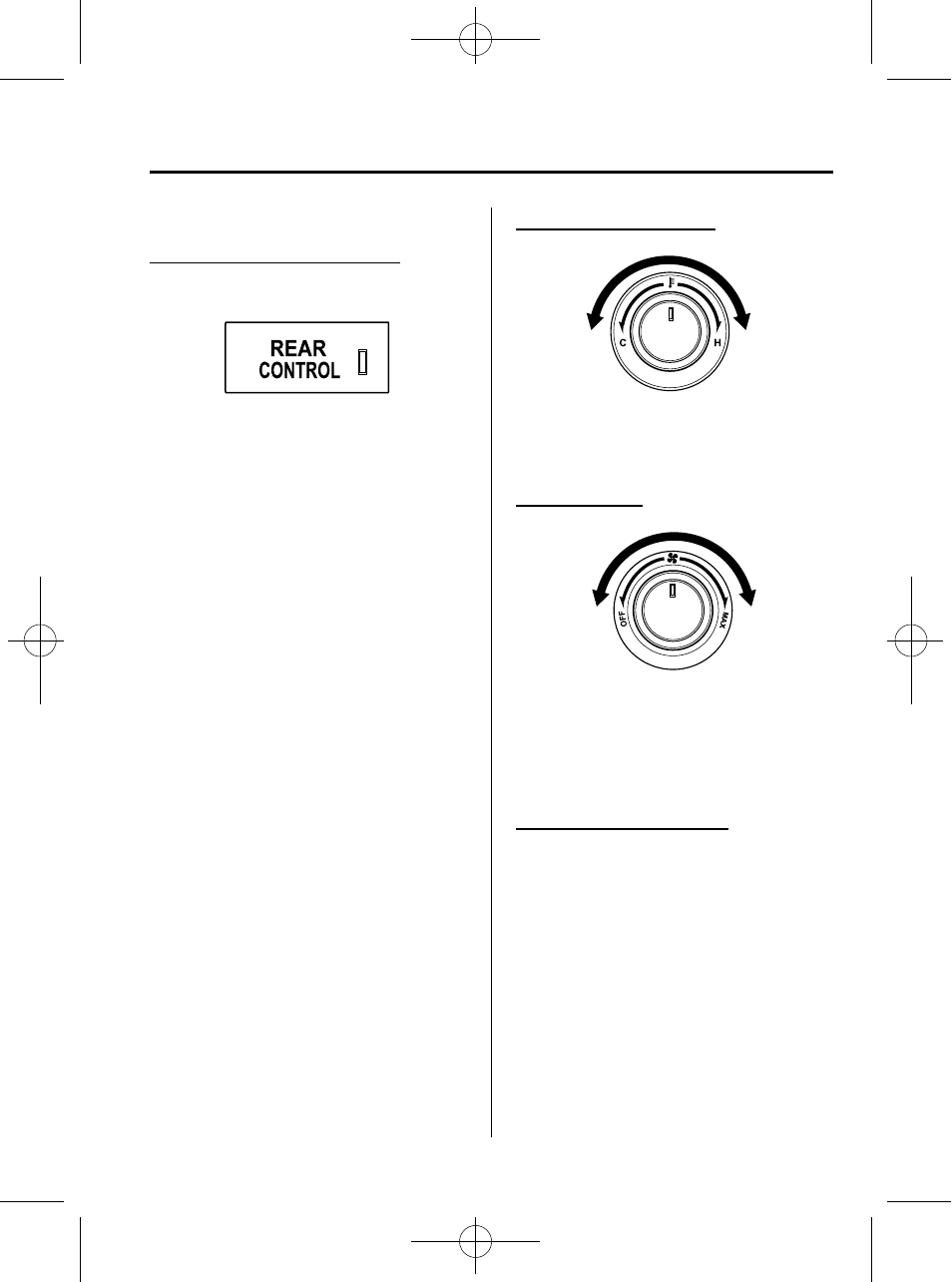

Rear air conditioning on switch
Press the REAR CONTROL switch to
operate the rear air conditioning from the
rear seats.
Fan and temperature adjustment from the
rear control panel is possible only when
“CONTROL ON” in the rear control
panel is illuminated.
NOTE
l When the rear control switch is off,
operation of the rear airflow amount and
vent temperature from the rear seats is not
possible.
l When the rear control switch is off, the
airflow amount and the vent temperature
for the rear are changed by operating the
temperature control dial of the front control
panel.
Airflow amount automatically changes
according to the fan control dial of the front
control panel.
l When the rear control switch is off, the
mode for the rear is changed according to
the mode selector switch and the
temperature control dial of the front control
panel.
Temperature control dial
Cold Hot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
Slow Fast
The airflow speed can be adjusted from
slow to fast.
qOperation of Automatic Air
Conditioning
Operation from front seats
1. Turn the front air conditioning on.
2. Turn the REAR CONTROL switch off.
(indicator light turned off.)
Interior Comfort
Climate Control System
6-15
