1. Turn the ignition switch to the LOCK
position.
2. If a power supply is necessary, connect
the outlet to the power outlet.
Refer to Power outlet on page 6-101.

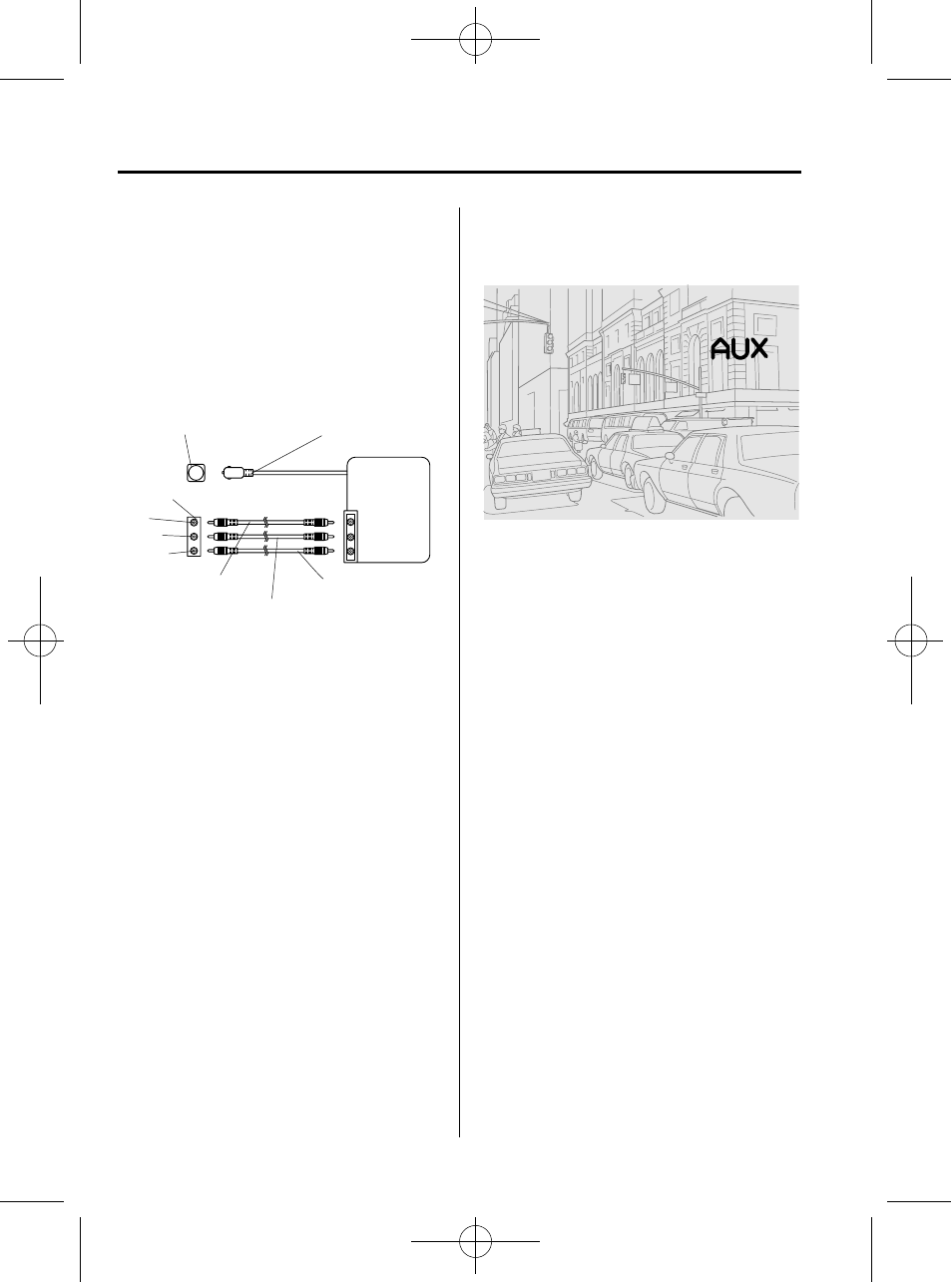

3. Connect the image cable and sound
cables to the input terminals.
Auxiliary
terminals
Accessory socket
(DC12 V, 10 A)
Plug
Red
White
Yellow
Sound cable (Right)
Sound cable (Left)
Image cable
AV
equipment
NOTE
l For monaural equipment (with one sound
output terminal), connect the terminal to
either of the sound input terminals (Red)
and (White). The sound is output from the
speaker to which the terminal has been
connected.
l Noise may occur depending on the
connected equipment.
4. Turn the ignition switch to the ACC or
ON position.
5. Press the SOURCE button and select
the AUX mode.
Refer to Mode on page 6-86.
6. Operate the equipment following the
instruction manual accompanying the
equipment.
