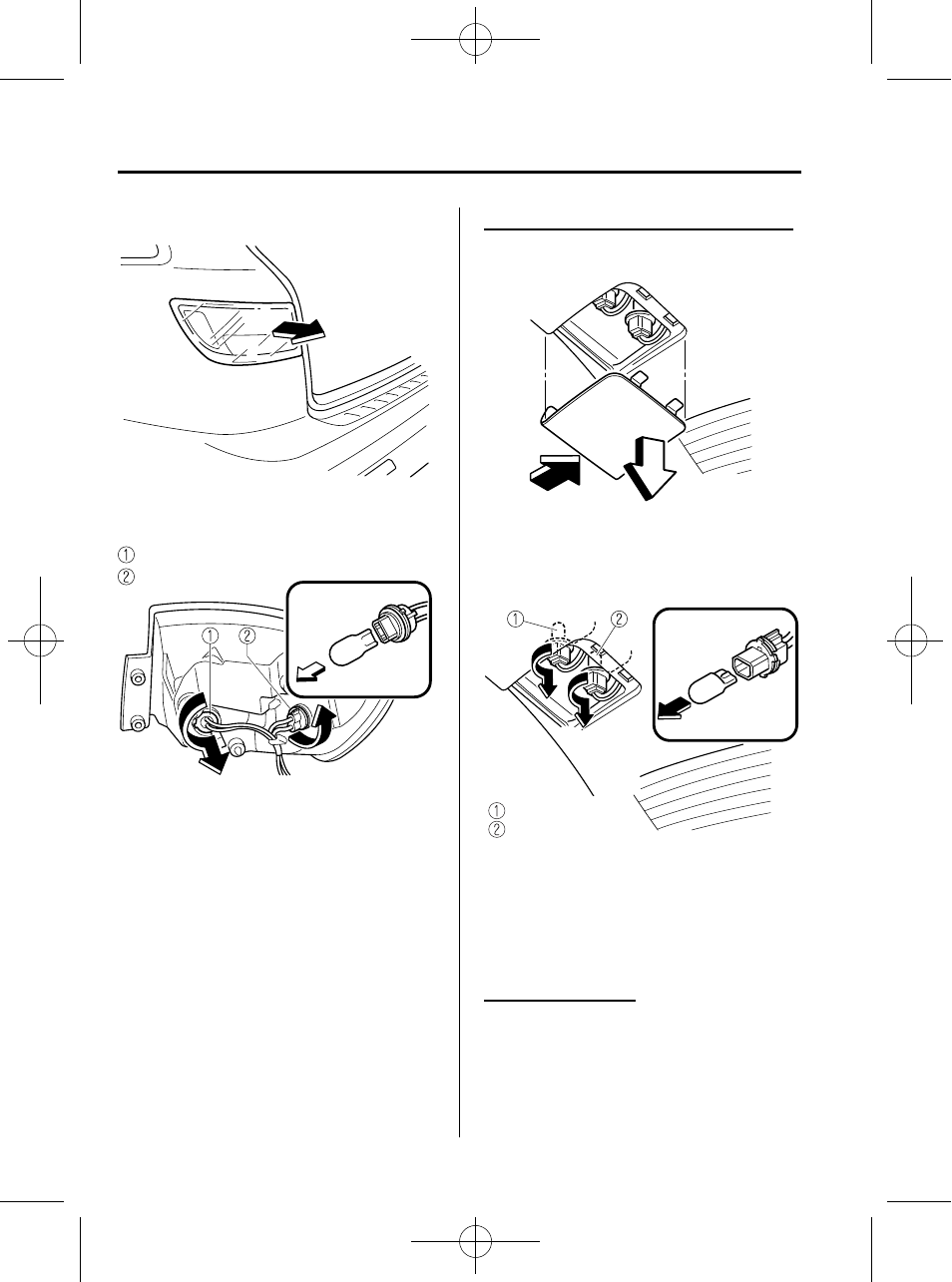

2. Pull the unit rearward to remove it.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
Rear side-maker
light
Rear turn signal light
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
Taillights (Liftgate side), Reverse lights
1. Remove the cover.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Reverse light
Taillight
4. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
License plate lights
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens with a flathead
screwdriver.
