4. In the Device Name column type a description.
5. Click Apply. On the Home page Monitor icons representing the direct
connection IP units appear. See Figure 38.

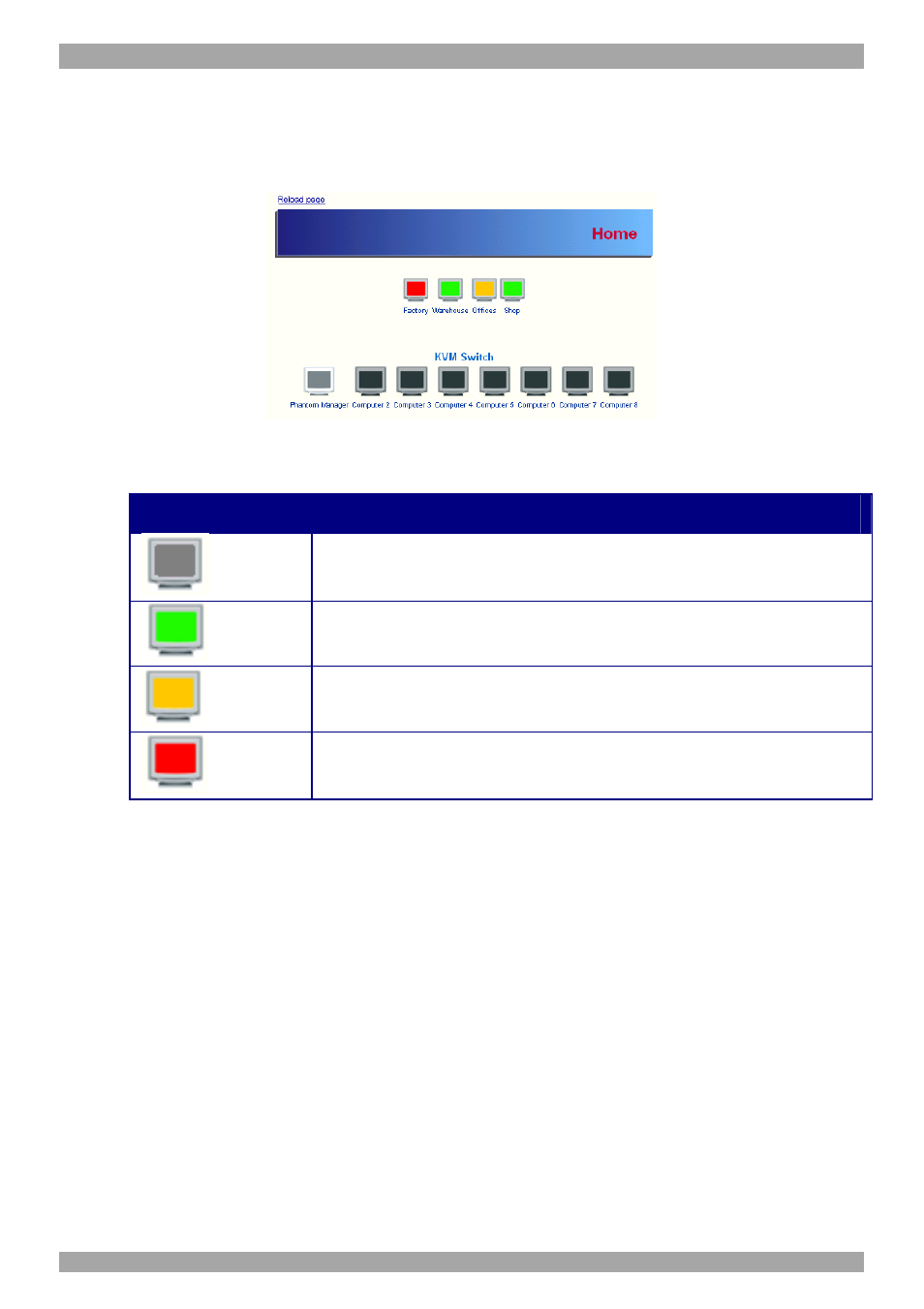

Figure 38 The Monitor icons
The icons are color coded as follows:
Icon Meaning
Gray Powered off or disconnected from the network
Green Powered on but no user is logged in
Orange A user is logged in
Red User is working with the remote console
Note! If the state of one device changes, there may be a delay of some seconds
until icon colors reflect the true situation especially where the network link of this
device is going down.
To connect to an IP unit:
Click the desired icon on the Home page. The Login page of that IP unit appears.
Figure 39 below illustrates a direct connections link scenario.
