Internal power
Once connected enable the internal power option using the Serial settings on page
37.
The Power Control panel enables access to the most important external buttons of
your host system. These buttons are the reset and the ATX power button.
The power button represents the ATX power button on your host system. It is
used to switch the power supply on and off. The ATX power button has 2
operation modes: a short press, and a press of about 4 seconds. As shown in
Figure 12 these two modes are supported separately. The 2 operation modes are
explained in the next section.

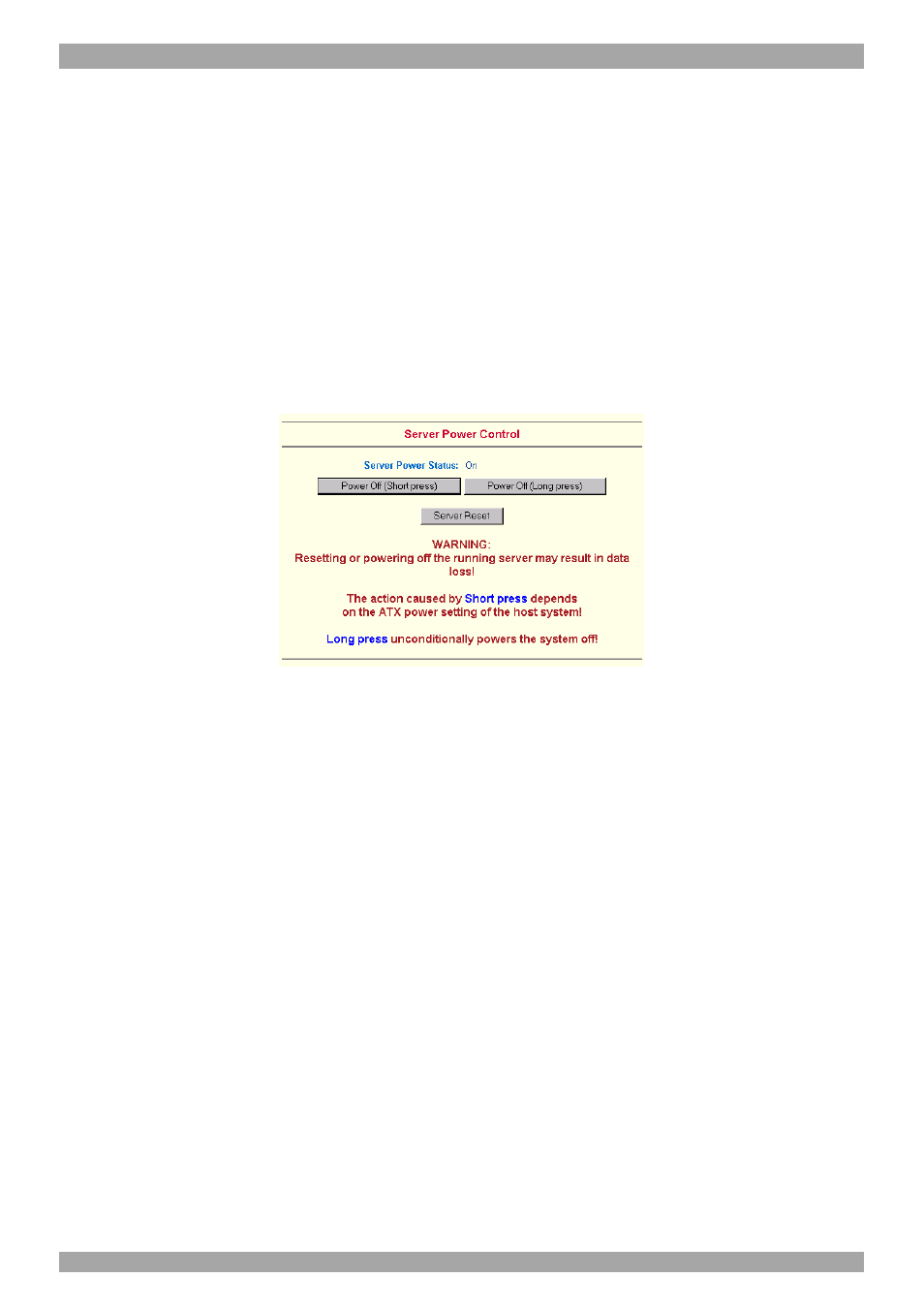

Figure 12 Internal Power Control
Note: The prerequisite for the remote power/reset button to work is a correct
installation of Smart 16 IP.
The Remote reset and power button effects are as follows:
Reset - This is similar to pressing the reset button directly on the remote system.
Pressing the reset button will result in a cold start of the system. This might
damage open files and the file system itself.
Power (short press) - A short press on the ATX button is normally caught by the
running operating system that tries to initiate a controlled shut down. Do this to
switch off the system. If this does not work try the long press button.
After pressing, the power state displayed in the administration panel won't
immediately reflect the requested change. A controlled shut down of the system
may take some minutes. Observe the action caused by your button press using the
Remote Console window or by reloading the Server Power Control panel.
Power (long press) - This will unconditionally power off the system. Even if you
have submitted a short press before, this will shut down the power supply of the
host system. The effect of the long button press can be immediately observed on
