Practical hints
Replacing bulbs
Front fog lamp
Removing
Right front fog lamp, left front fog lamp lat-
erally reversed

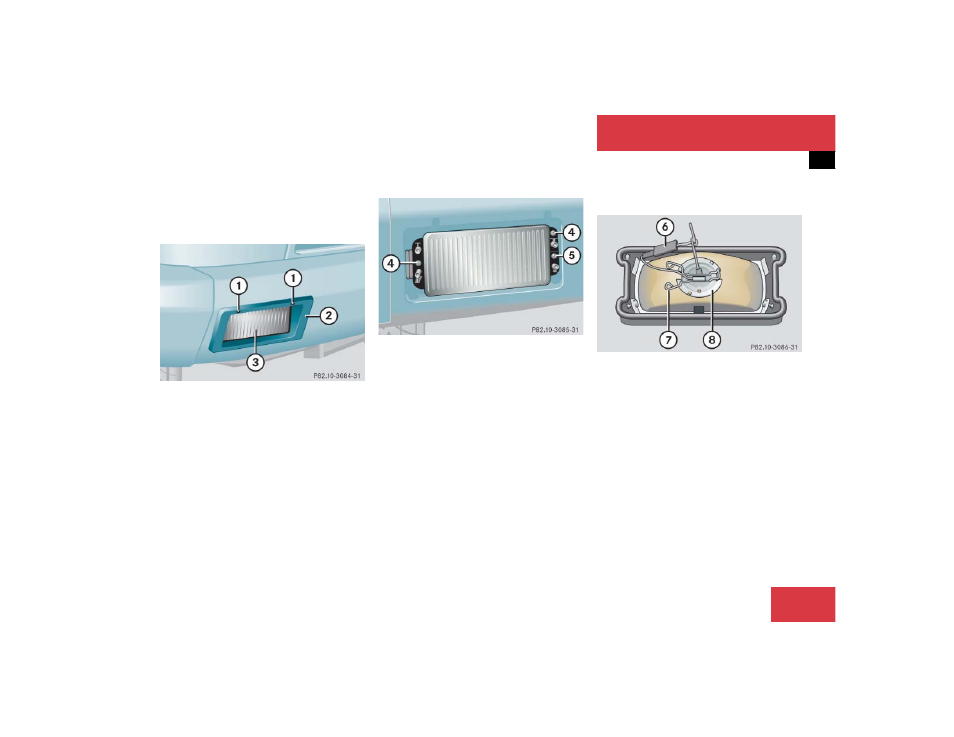

1 Securing screw (trim panel)
2 Fog lamp trim panel
3 Fog lamp
̈ Switch off the lights.
̈ Unscrew securing screws 1.
̈ Remove fog lamp trim panel 2 and
seal.
4 Securing screw (fog lamp)
5 Adjusting screw (fog lamp)
̈ Unscrew fog lamp-securing screws 4.
̈ Remove fog lamp 3.
Installing
̈ Insert fog lamp 3 and screw in fog
lamp-securing screws 4.
̈ Reinstall fog lamp trim panel 2 and
screw in securing screws 1.
Fog lamp bulb
6 Electrical connector
7 Retainer spring
8 Bulb socket
̈ Pull off electrical connector 6.
̈ Unclip retainer spring 7.
̈ Pull out bulb socket 8.
̈ Insert the new bulb so that the base lo-
cates in the recess on the holder.
̈ Clip in retainer spring 7.
̈ Plug electrical connector 6 together.
