Practical hints
Replacing bulbs

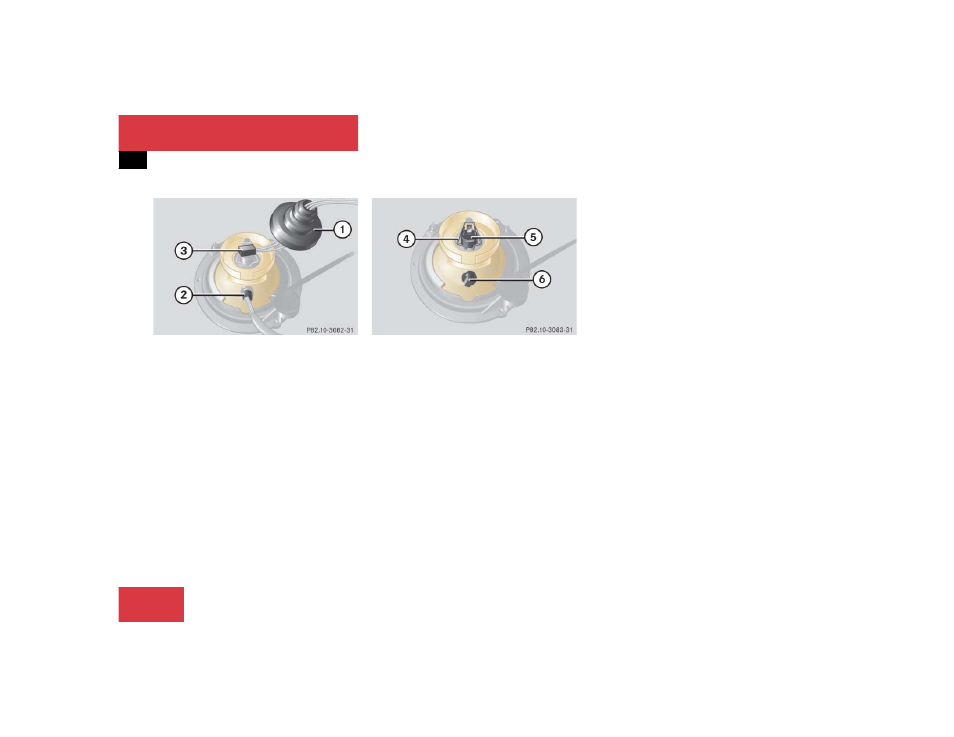

1 Protection cover
2 Electrical connector (parking and
standing lamps)
3 Electrical connector (high and low
beam)
4 Retainer spring
5 Bulb for high and low beam
6 Bulb socket for parking and standing
lamps
High and low beam bulb
̈ Remove protection cover 1.
̈ Pull off electrical connector 3.
̈ Unclip retainer spring 4.
̈ Remove bulb 5.
̈ Insert new bulb so that the base lo-
cates in the recess on the holder.
̈ Clip in retainer spring 4.
̈ Plug electrical connector 3 onto
bulb 5.
̈ Press on protection cover 1.
Parking and standing lamp bulb
̈ Pull off electrical connector 2 from
bulb socket 6.
̈ Push bulb into bulb socket 6, turn
counterclockwise and remove.
̈ Insert new bulb in bulb socket 6, push
in and turn clockwise until it clicks in.
̈ Plug electrical connector 2 onto bulb
socket 6.
