Port Replicator
Using Options
69

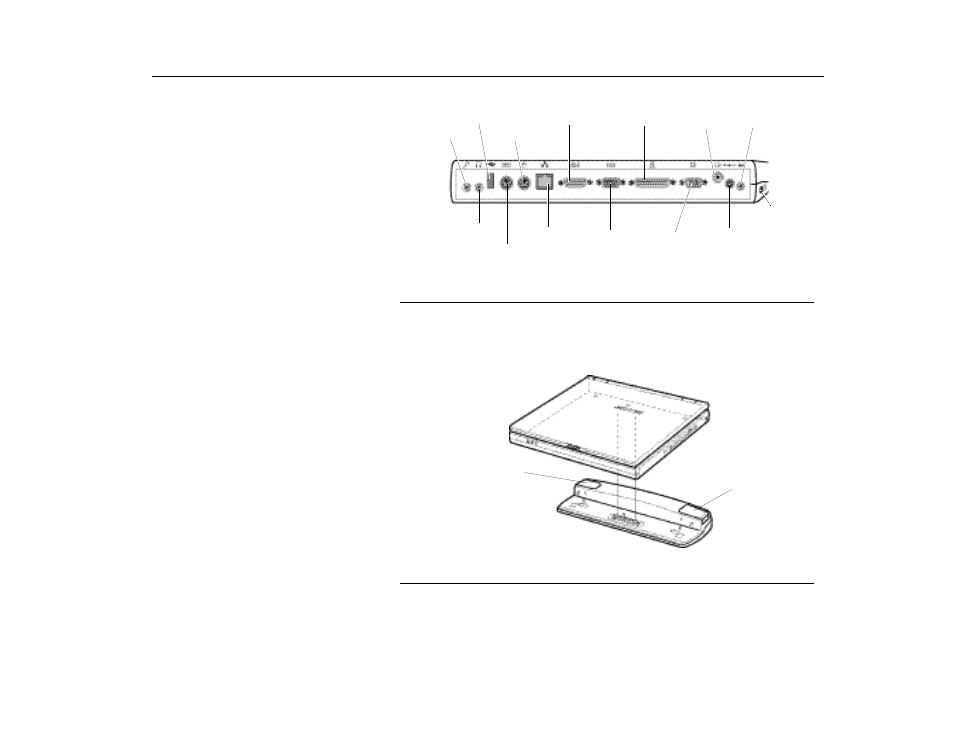

Figure 27. Back view of the port replicator
Installing a Port Replicator
1. Turn off your system and disconnect all the devices.
2. Adjust the connecting part of the system and the port replicator.
Figure 28. Connecting a Port Replicator
3. Push the system firmly to install a port replicator properly.
4. Connect an AC adapter to a power connector and cables from peripheral
devices.
Microphone
USB device
PS/2 Mouse
Joystick/MIDI
Printer
TV-Out
Line-In
Kensington
Lock
Monitor
AC Adapter
LAN
Serial port
PS/2 Keyboard
Headphone
Eject button
Eject button
