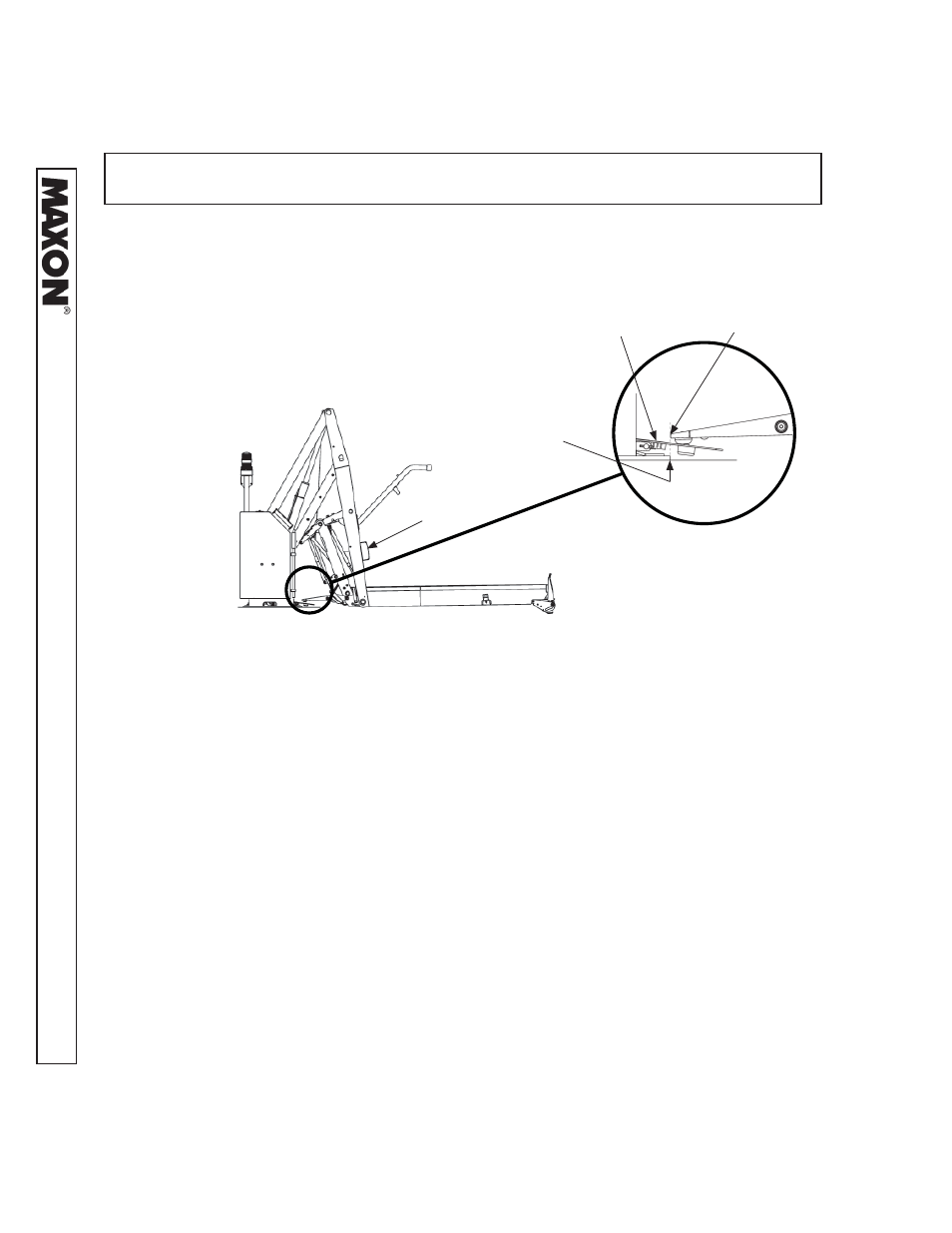

FLOOR POSITION ADJUSTMENT (MANDATORY)
1. Unfold the platform until the
lights illuminate at fl oor level or
raise the platform to fl oor level
as shown in FIG.
52 -1A.
2. Inspect the threshold plate. The
edge of the inboard rollstop should
line up with the edge of the base
plate as shown in FIG.
52 -1B.
EDGE OF
INBOARD
ROLLSTOP
INBOARD ROLLSTOP LINES
UP WITH BASE PLATE
FIG. 52-1B
PLATFORM AT FLOOR LEVEL
(LH SIDE SHOWN)
FIG. 52-1A
THRESHOLD
PLATE
EDGE OF
BASE PLATE
PLATFORM
LIGHT
NOTE: Do the following procedure to ensure the inboard rollstop rests on threshold
plate and lines up approximately with edge of base plate.
