To prevent vehicle access door from pinching and damaging the hand pendant
cable, secure cable away from the door frame. Also, be sure that the hand
pendant cable does not interfere with or bind against moving parts.
CAUTION
10. Connect the hand pendant cable as follows.
Feed the cable through the hole located
in the main frame (FIG.
34 -1). Secure cable
strain relief to main frame with plastic nut (FIG.
34 -1). Next, connect hand pendant connector
to wiring harness (FIG. 34 -1).

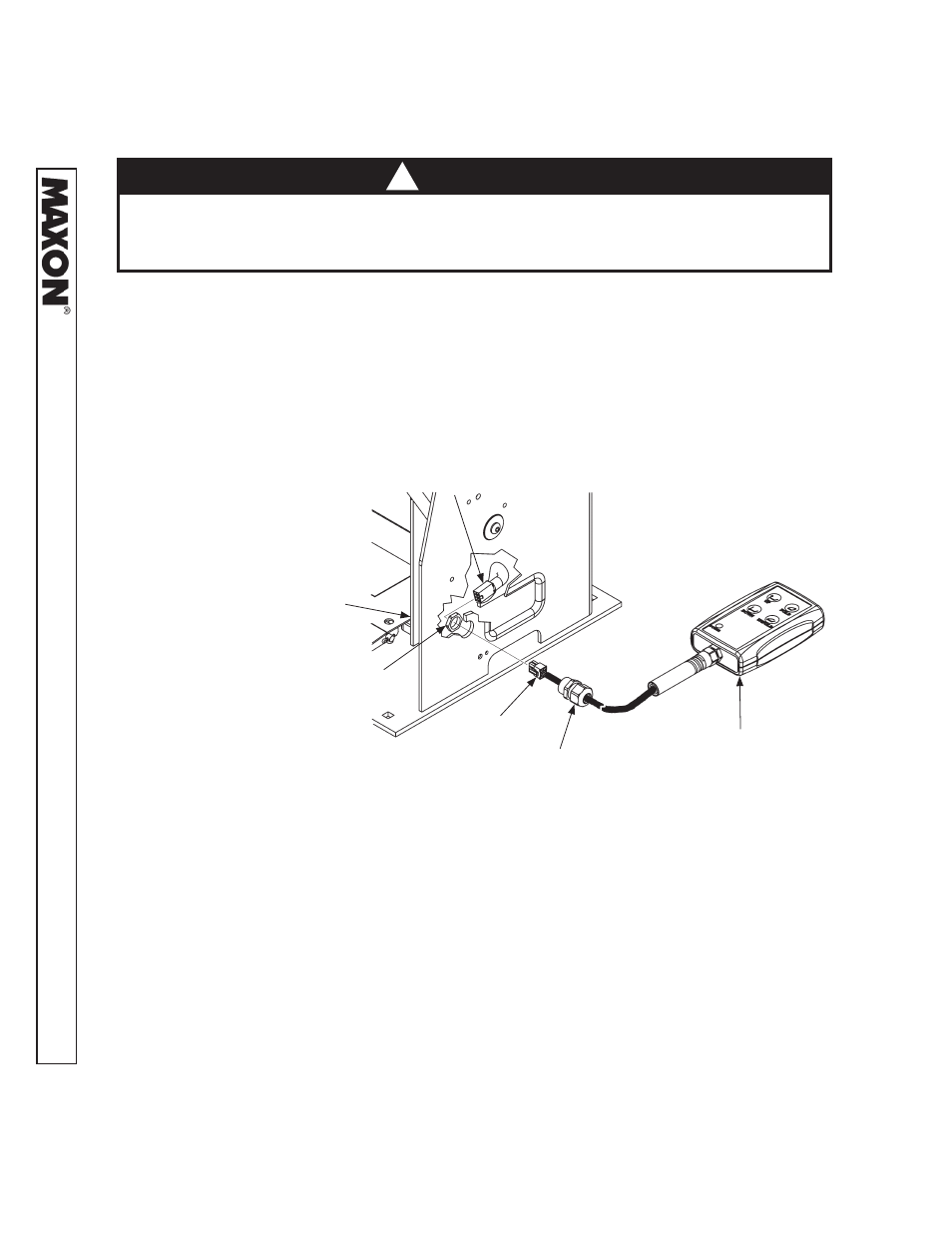

CONNECTING HAND PENDANT CABLE
(RH SIDE CONNECTION SHOWN)
FIG. 34-1
HAND
PENDANT
CONNECTOR
STRAIN
RELIEF
HEX NUT
MAIN
FRAME
WIRING
HARNESS
CONNECTOR
ROUTE/CONNECT CABLES & HAND PENDANT - Continued
!
