USING TEMPLATE TO POSITION LIFT
1. Fabricate template for base plate hole pattern
according to the dimensions shown in FIGS.
25-1, 25-2, 26-1 and 26-2. Use a suitable
material that maintains correct shape and
dimensions.

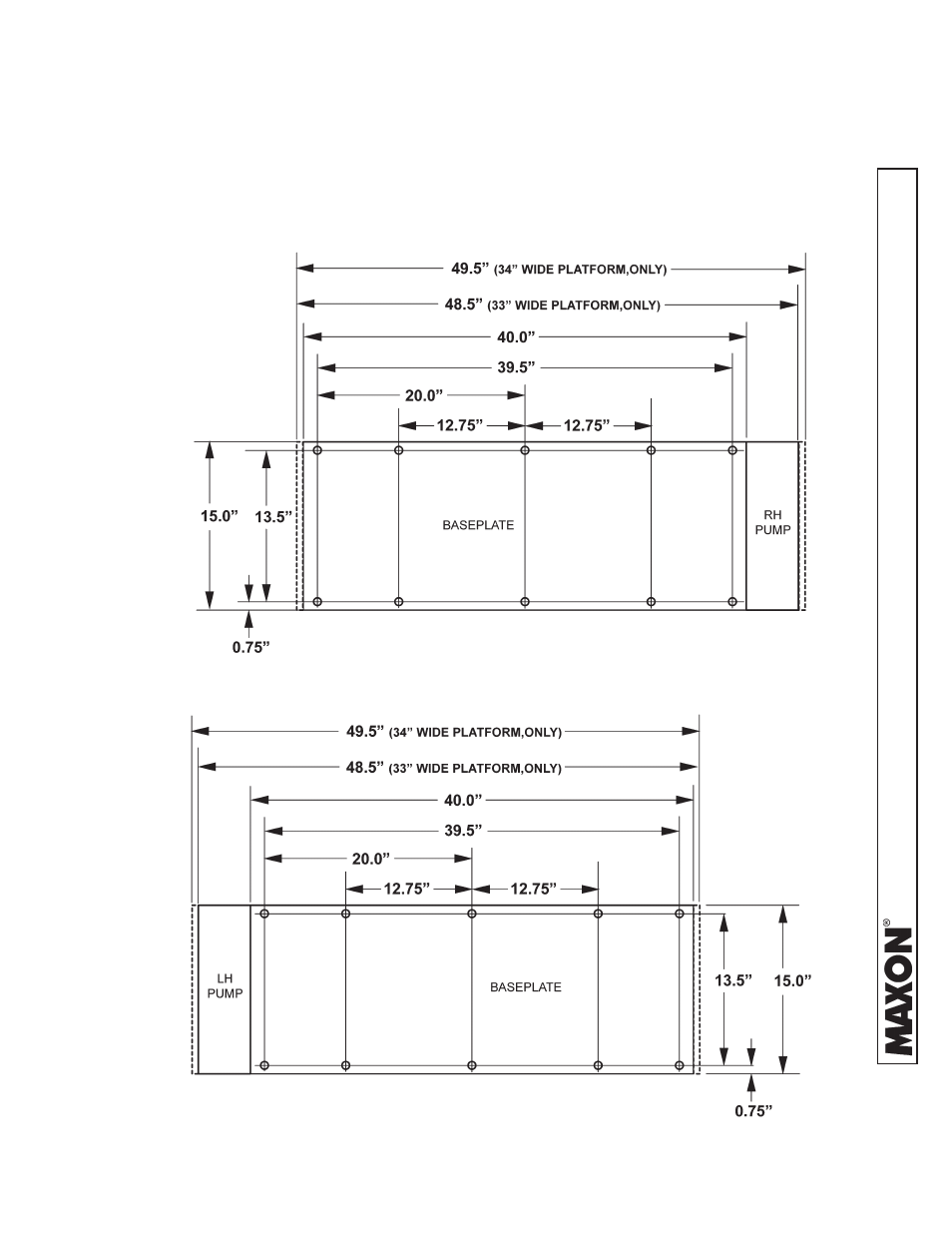

BASE PLATE HOLE PATTERN FOR LIFTS
WITH 33” & 34” WIDE PLATFORMS & RH PUMP
FIG. 25-1
BASE PLATE HOLE PATTERN FOR LIFTS
WITH 33” & 34” WIDE PLATFORMS & LH PUMP
FIG. 25-2
