OUTBOARD ROLLSTOP
(REF)
4. Manually lower the inboard
rollstop for access to the ad-
justment screws (FIG. 45-1).
To ensure proper leveling, turn
platform tilt adjustment screws
(FIG. 45-1) an equal amount
on both sides of platform. Turn
adjustment screws clockwise
(FIG. 45-2) to tilt the platform
up or counter-clockwise to tilt
platform down.

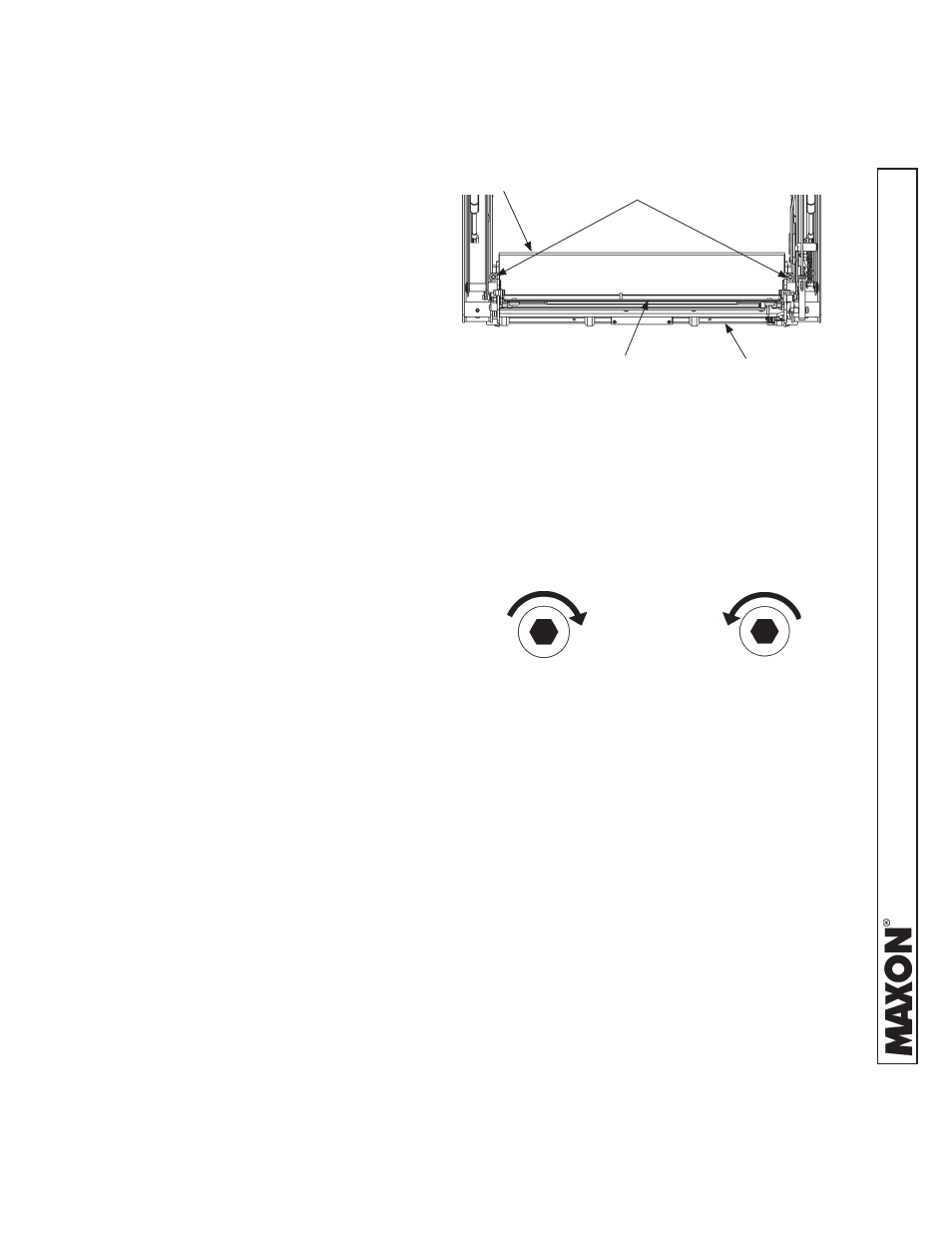

PLATFORM TILT ADJUSTMENT SCREW
(BACK VIEW OF PLATFORM SHOWN)
FIG. 45-1
PLATFORM TILT ADJUSTMENT SCREWS
FIG. 45-2
CW - PLATFORM
TILT UP
CCW - PLATFORM
TILT DOWN
PLATFORM
ADJUSTMENT
SCREW
INBOARD ROLLSTOP
