PATENTS PENDING 13
11921 Slauson
A
ve. Santa Fe Springs, CA. 90670 (800) 227-41
16 F
AX (888) 771-7713

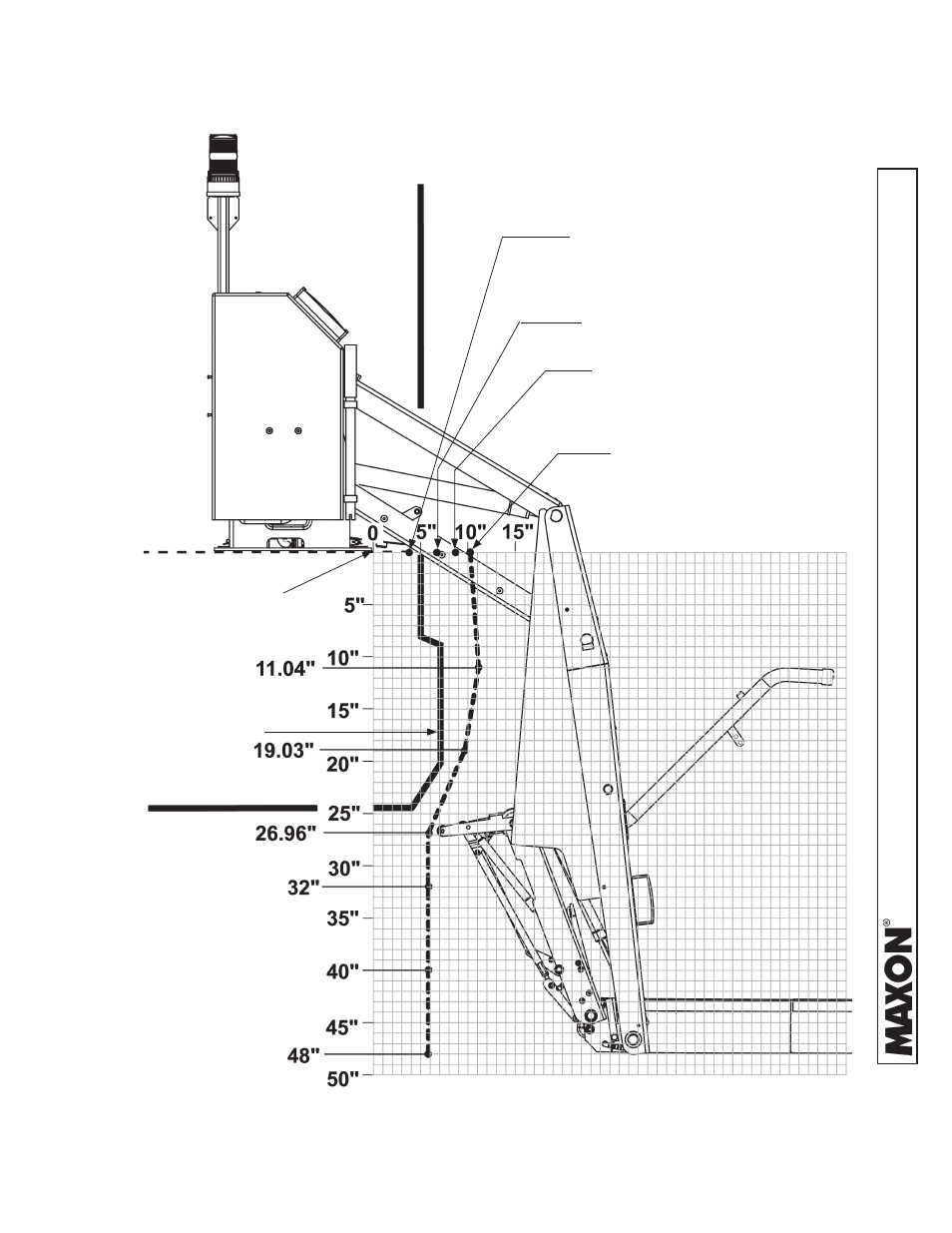

BODY CLEARANCE POINTS: 32”, 40”, 42”, 46” & 48” FLOOR HEIGHTS
FIG. 13-1
BASE PLATE
OUTBOARD
EDGE (REF)
TYPICAL
VEHICLE REAR
BUMPER
(BUS GND LVL)
(BUS GND LVL)
(VAN GND LVL)
3.75”
(48” FLOOR LEVEL - REF)
10.25”
(42” FLOOR LEVEL - REF)
6.75”
(46” FLOOR LEVEL - REF)
8.75”
(44” FLOOR LEVEL - REF)
