DA7000 SERIES GENERATORS • OPERATION AND PARTS MANUAL — REV. #5 (01/20/11) — PAGE 19
COMPONENTS (GENERATOR)

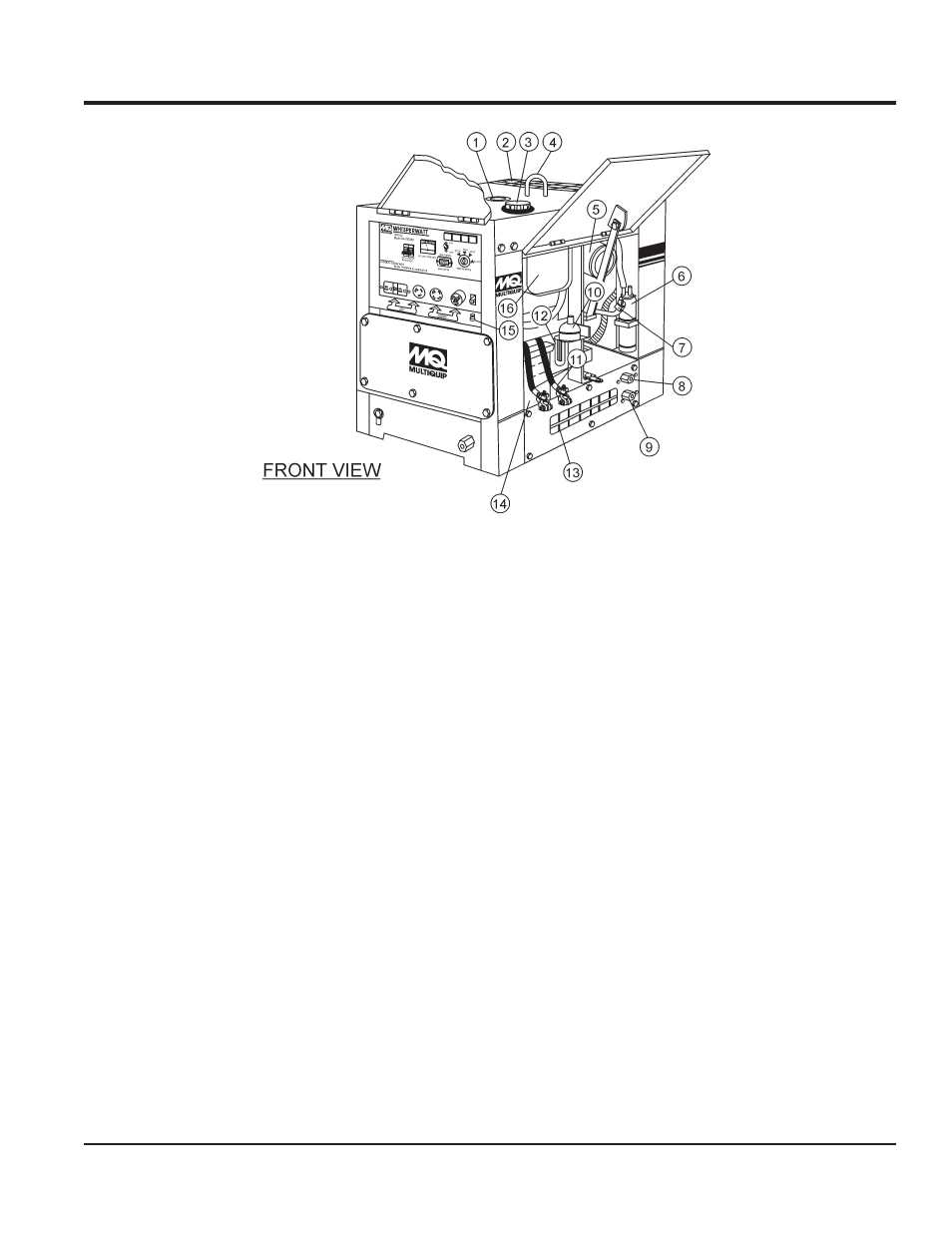

Figure 3. Generator Components
1. Fuel Gauge — Indicates the amount of fuel in the
fuel tank.
2. Air Outlet Exhaust — Allows engine exhaust to exit
the generator into the open air. NEVER block this
opening.
3. Fuel Cap — Remove this cap to add fuel. Add only
#2 Diesel Fuel. Always keep an adequate amount of
fuel in the tank. DO NOT top off. Wipe up any spilled
fuel immediately.
4. Lifting Hook — Use this hook to lift the generator.
5. Engine Air Cleaner — Prevents dirt and other debris
from entering the fuel system. Lift locking latch on air
fi lter cannister to gain access to fi lter element.
6. Overfl ow Bottle — Supplies coolant to the radiator
when radiator coolant level is low. Fill to indicated level
as shown on bottle.
7. Engine Oil Filler Port — Remove this cap to add
engine oil. Use only recommended type oil. See Table 5.
8. Coolant Drain Plug — Remove this plug to drain
coolant from the radiator.
9. Oil Drain Plug — Remove this plug to drain oil from
the engine.
10. Automatic Speed Control Solenoid — Automatically
regulates engine speed.
11. Battery Terminals — Connect these terminals to the
battery. Always pay close attention to the polarity of
the terminals when connecting to the battery, RED
(positive), and BLACK (negative).
12. Fuel Filter — Prevents dirt and other debris from
entering the fuel system. Change fuel filter as
recommended in the maintenance section of this
manual.
13. Air Inlet Vent — Allows outside air to enter the
generator. NEVER block this opening.
14. Battery — Provides +12 VDC power for the generator.
When replacing battery (12V 35 AH) use only
recommended type battery.
15. Ground Terminal — Use this terminal to connect
external equipment grounds so that the GFCI
receptacle will have a ground path.
16. Fuel Tank — Holds 6.6 gallons (25 liters) of diesel fuel.
