5.4 5.4GHz Specific Frequency Planning Considerations
Adjustment of the lower center frequency allows the operator to slide the available frequency
settings up and down the 5.4 GHz band. See Figure 14.

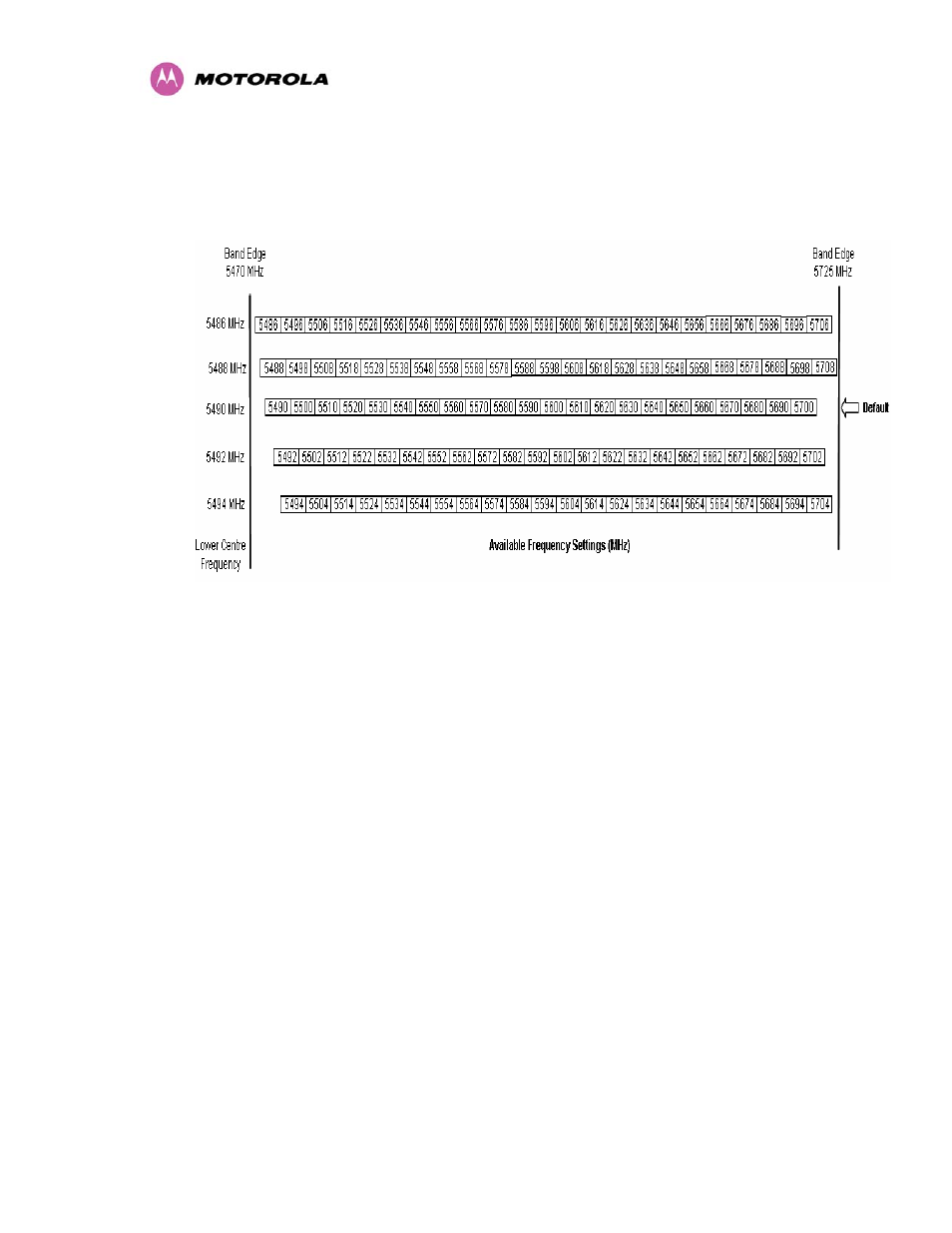

Figure 14 - 5.4 GHz Available Spectrum Settings
5.4.1 Raster Considerations
The PTP 600 Series Bridge 5.4 GHz variant operates on a 10 MHz channel raster that is set
to even center frequencies. See Figure 14.
5.4.2 Transmit Power Reduction at the Band Edges
The 5.4 GHz product variant does not apply any band edge power reduction.
