32

3.3.3

Redundancy and Alternate Powering Configurations

NOTE: The use of DC supplies of less than 55v will reduce the usable distance between the

PIDU Plus and ODU see Figure 7.

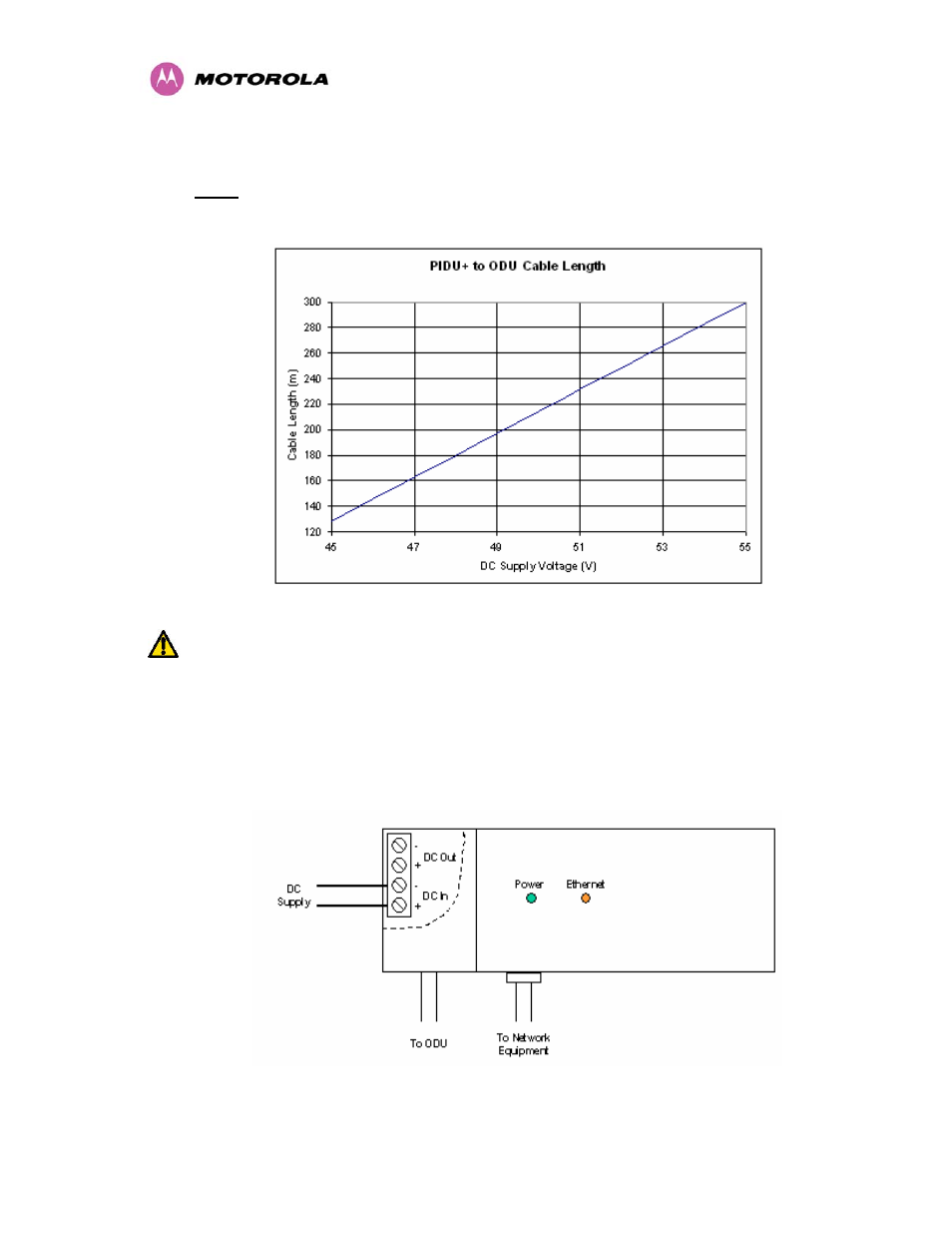

Figure 7 – PTP 600 Series Bridge PIDU Plus to ODU Cable Length Graph

WARNING: The maximum distance from the ODU to the connected network equipment is

100m (330 ft) when using 1000BaseT. Powering distances over 100m (330 ft) are only

applicable when using a 1000BaseSX (Fiber Optic) connection.

3.3.3.1

External DC Supply Only

For use where there is no mains supply.

Figure 8 - External DC Supply Only
