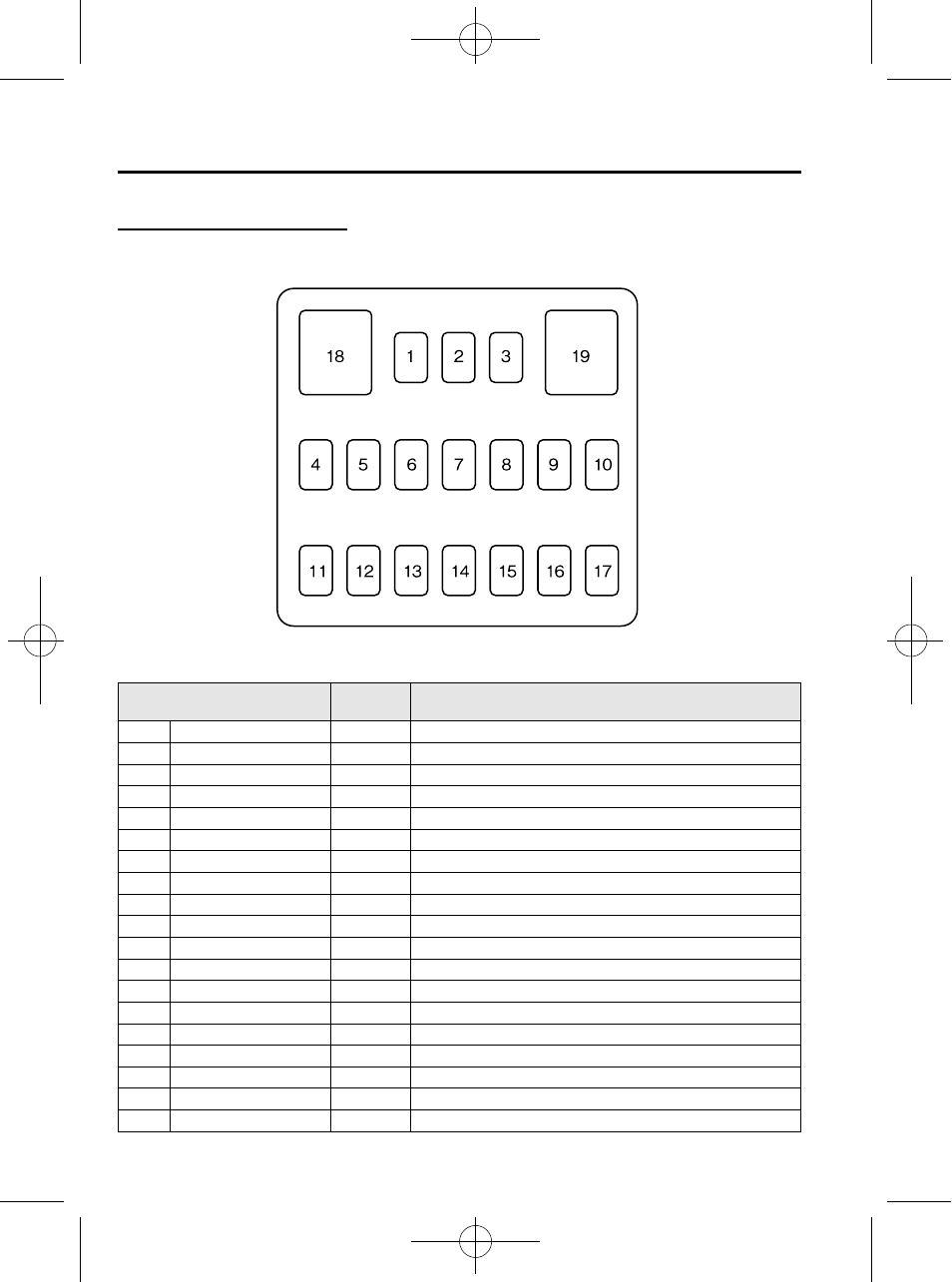

Fuse block (Passenger's side)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 M.DEF 7.5 A Mirror defroster
í
2
― ― ―
3 ENG3 20 A Ignition switch
4 P.OUTLET 15 A Accessory Socket
5 SHIFT/L 5 A AT shift
í
6 CIGAR 15 A Lighter
7 MIRROR 7.5 A Power control mirror, Audio system
í
8 A/C 10 A Air conditioner
9 F.WIP 25 A Windshield wipers and washer
10 R.WIP 15 A Rear window wiper and washer
11 ENG 5 A Main relay
12 METER 10 A Instrument cluster
13 SAS 10 A Supplemental restraint systems
14 S.WARM 15 A Seat warmer
í
15 ABS/DSC 5 A ABS
16 EHPAS 5 A EHPAS
17 ENG2 15 A
―
18 P/W 30 A Power windows
19 P/W
― ―
8-48
Maintenance and Care
í
Some models.
