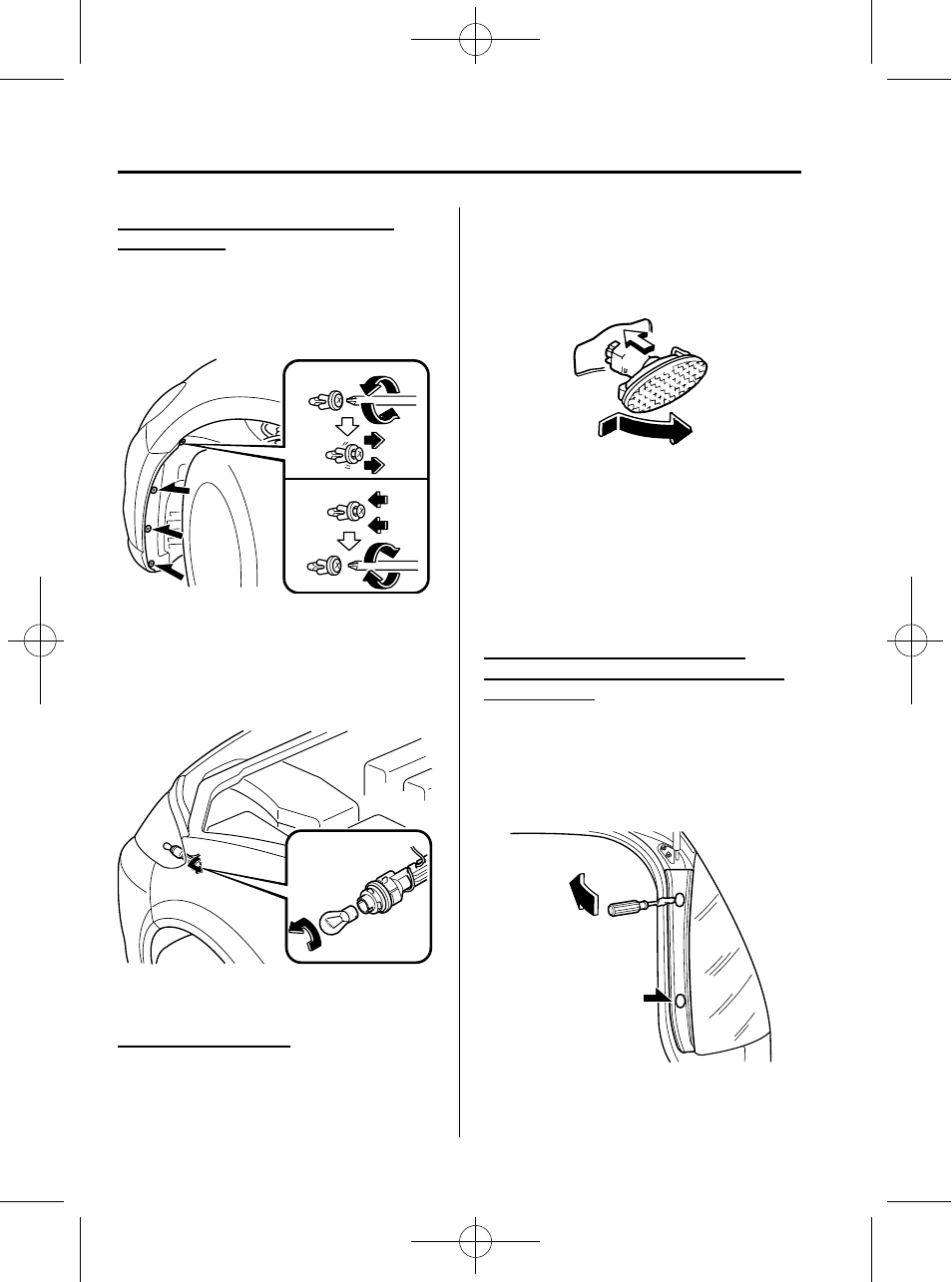

Front turn signal lights/Front side-
marker lights
1. Turn the center section of the plastic
retainers counterclockwise and remove
them, then partially peel back the
mudguard.
Removal
Installation
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Remove the bulb by pushing it in
slightly and turning it
counterclockwise.
4. Install the new bulb in the reverse order
of removal.
Side turn signal lights
1. Slide the unit as shown in the figure to
remove it.
2. Disconnect the electrical connector
from the unit.
3. Install the new side turn signal unit in
the reverse order of removal.
NOTE
Bulb replacement is not possible because it is
built into the unit. Replace the unit.
Brake lights/Taillights/Rear side-
marker lights, Rear turn signal lights,
Reverse lights
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the rear
combination component and gently
insert it in the cover as shown in the
figure, and then remove the cover.
2. Turn the screws counterclockwise and
remove them.
