qFuse Panel Description

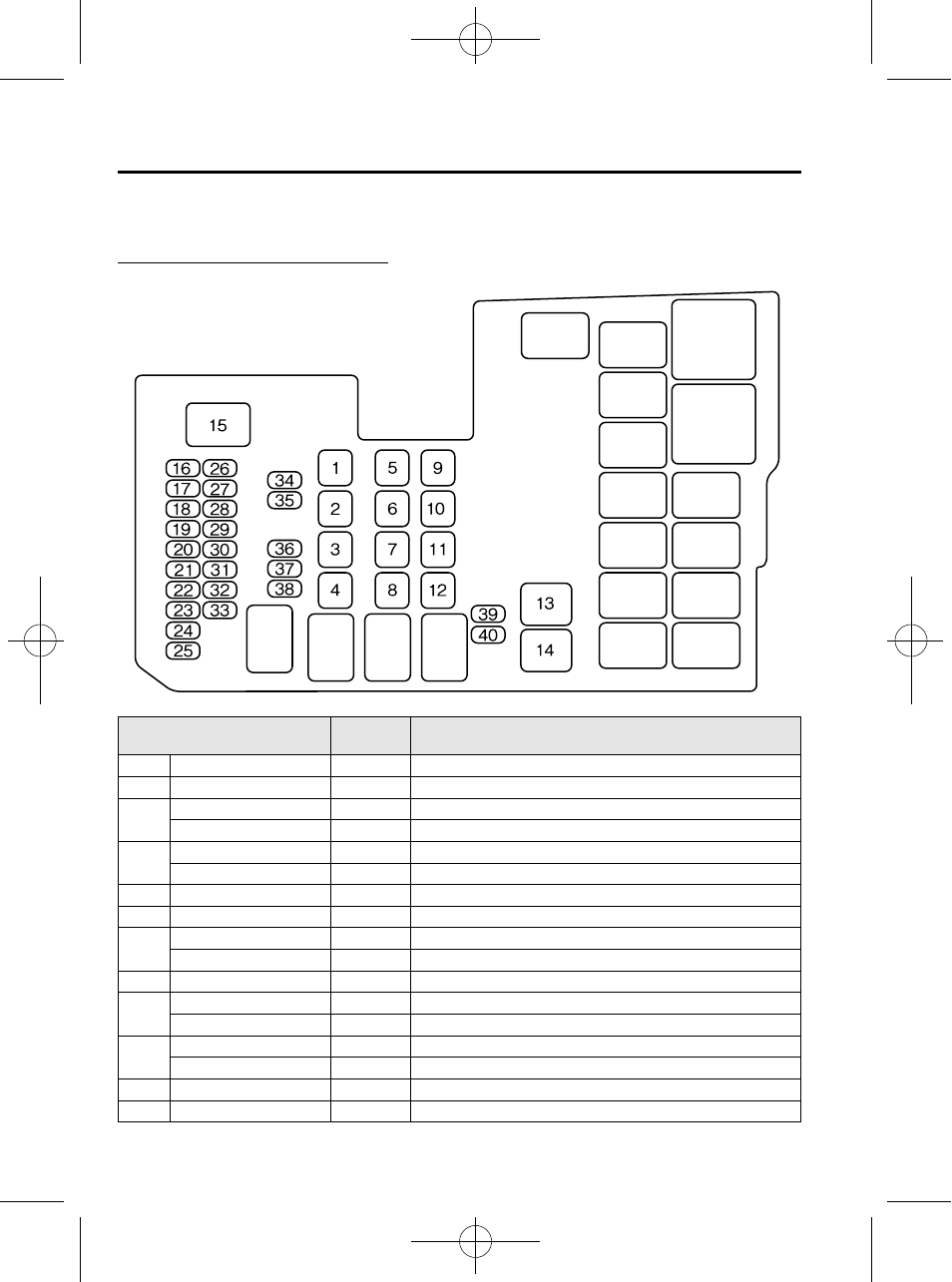

Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 FAN 30 A Cooling fan
2 FAN 30 A Cooling fan
3
P.WIND
*1
40 A Power windows
R.BLOWER *2 30 A Rear blower motor
4
IG KEY1 INJ *1 30 A For protection of various circuits
IG KEY2
*2
20 A
―
5 ABS-V 20 A ABS
6 ABS-P 30 A ABS
7
IG KEY2
*1
20 A
―
IG KEY1 *2 40 A For protection of various circuits
8 HEATER DEICER TCM 20 A
―
9
BLOWER
*1
40 A Blower motor
F.BLOWER *2 20 A Front blower motor
10
GLOW IG KEY1 *1 40 A For protection of various circuits
F.BLOWER *2 20 A Front blower motor
11 BTN 60 A For protection of various circuits
12 IG KEY2 40 A
―
8-46
Maintenance and Care
Owner Maintenance
