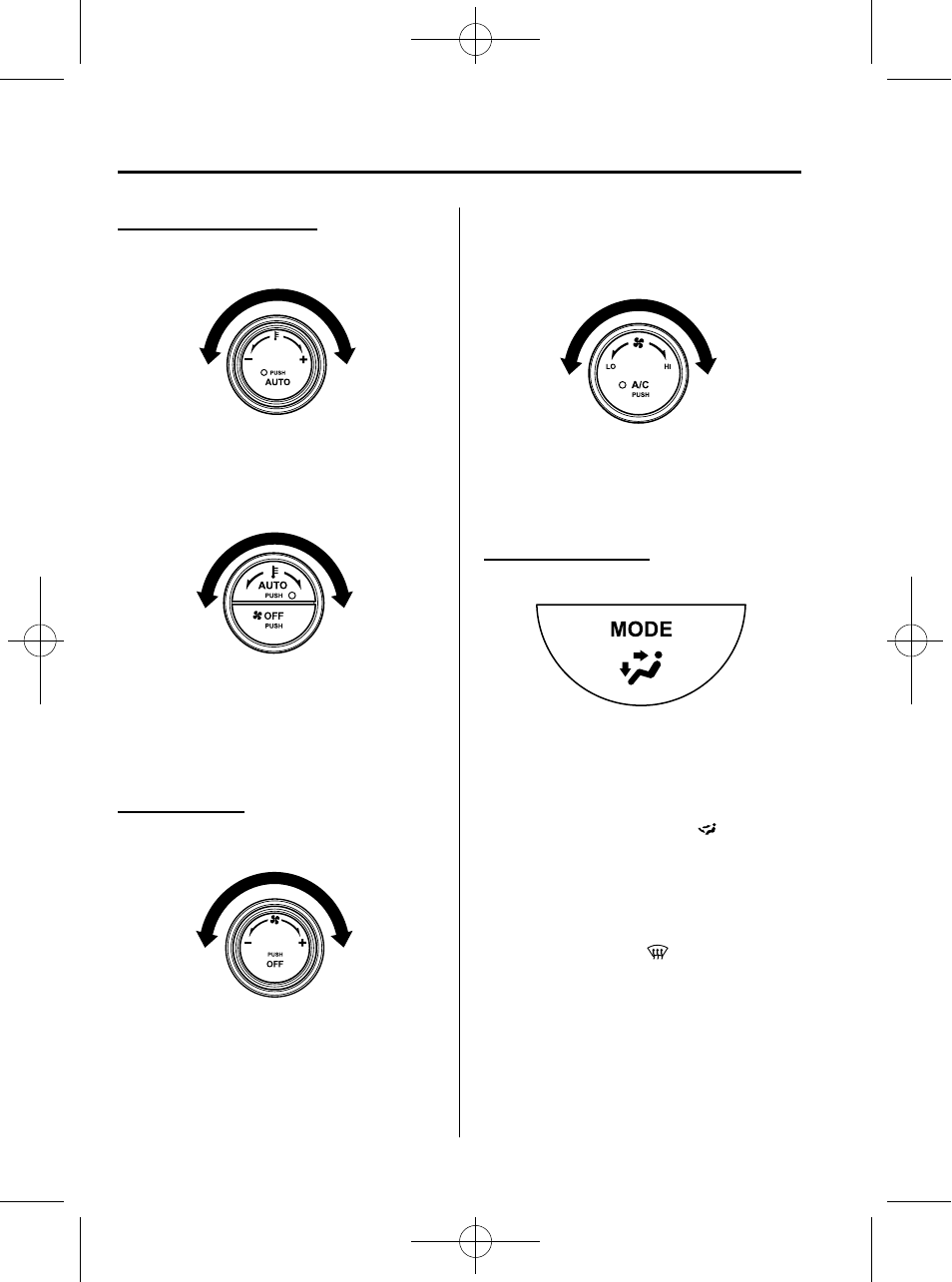

Temperature control dial
Without rear ventilation system
Cold Hot
With rear ventilation system
Cold Hot
This dial controls temperature.Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
Without rear ventilation system
Slow Fast
With rear ventilation system
Slow Fast
The fan has seven speeds. The selected
speed will be displayed.
Mode selector switch
The desired airflow mode can be selected
(page 6-4).
NOTE
l With the airflow mode set to position
and the temperature control dial set at a
medium temperature, heated air is directed
to the feet and a comparably lower air
temperature will flow through the central,
left and right vents.
l To set the air vent to , press the
windshield defroster switch.
6-12
Interior Comfort
Climate Control System
