page 18 — LT12 SerieS LigHT TOWer • parTS manuaL — rev. #17 (06/03/11)
PART OF
FRAME
2
1
4
5
7
6
8
9
10
11
19
18 21
17
16
20
15
14
13
12
NOTES:
SEE WINCH ASSY. A
A
23

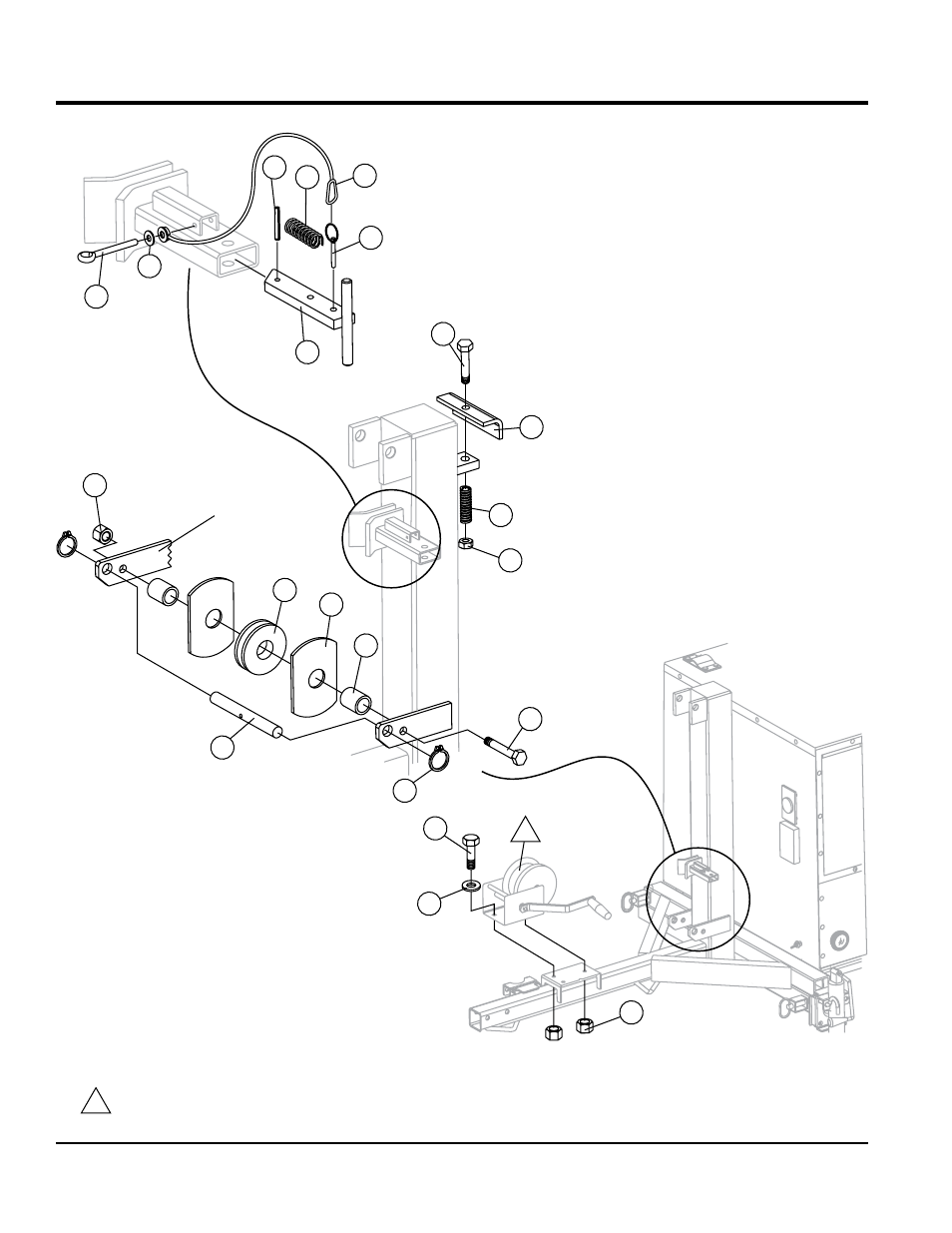

Mast raIsE/lOWEr assY.
