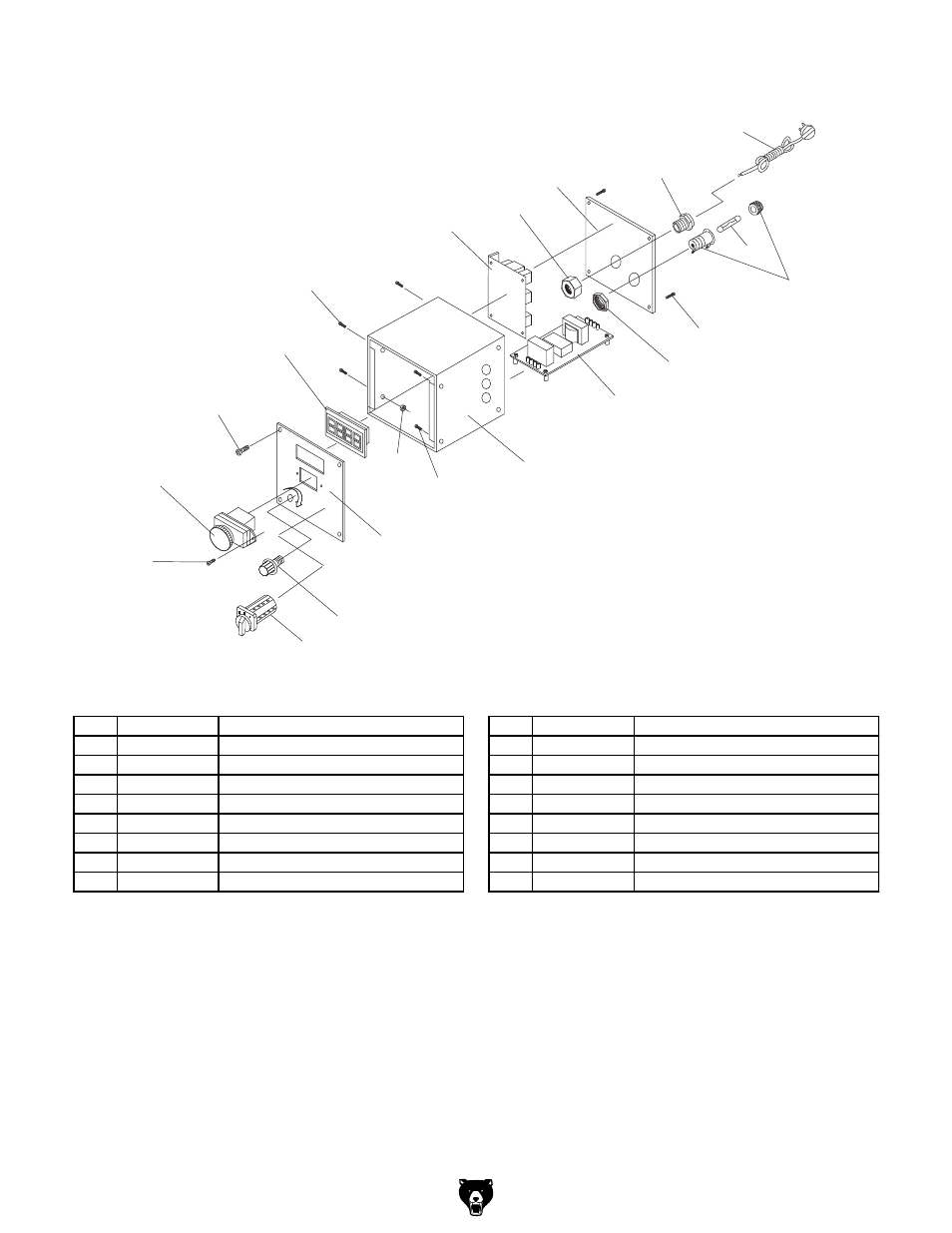

Electrical box breakdown & parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
78 P0704078 SPEED CONTROL CIRCUIT BOARD 87 P0704087 SPINDLE RPM READOUT
79 P0704079 VARIABLE SPEED KNOB 88 P0704088 ELECTRICAL BOX
80 PCAP158M CAP SCREW M3-.5 X 16 89 PCAP03M CAP SCREW M5-.8 X 8
80-1 PN07M HEX NUT M3-.5 90 P0704090 ELECTRICAL BOX COVER
81 P0704081 MAIN CIRCUIT BOARD 91 P0704091 FUSE HOLDER
83 P0704083 ON/OFF SWITCH 92 P0704092 FUSE 10A
84 PCAP17M CAP SCREW M4-.7 X 10 93 P0704093 POWER CORD 18AWG X 3C X 72"L
85 P0704085 CONTROL PANEL 94 P0704094 STRAIN RELIEF
86 PCAP110M CAP SCREW M4-.7 X 6 95 P0704095 FWD/REV SWITCH
