Page 79
KINO-LX Motherboard
Quantity Type
1 mini jumper pack
1 ATA 66/100 HDD cable
2 SATA cables
1 SATA power cable
1 Dual RS-232 cables
Table 4-1: IEI Provided Cables
4.5.1 IDE Disk Drive Connectors (CN29 Primary, CN28 Secondary)
The cable used to connect the CPU card to an IDE HDD is a standard 40-pin ATA66/100
flat cable. Follow the instructions below to connect an IDE HDD to the CPU card.
Step 1:
Step 2:
Step 3:
Step 4:
Find the ATA66/100 flat cable in the kit that came with the CPU card.
Connect one end of the cable to the CN29 (Primary IDE) connector on the CPU
card. A keyed pin on the IDE connector prevents IT from being connected
incorrectly.
Locate the red wire on the cable that corresponds to the pin 1 connector.
Connect the cable to the HDD making sure that the pin 1 cable corresponds to
pin 1 on the connector. Step 0:

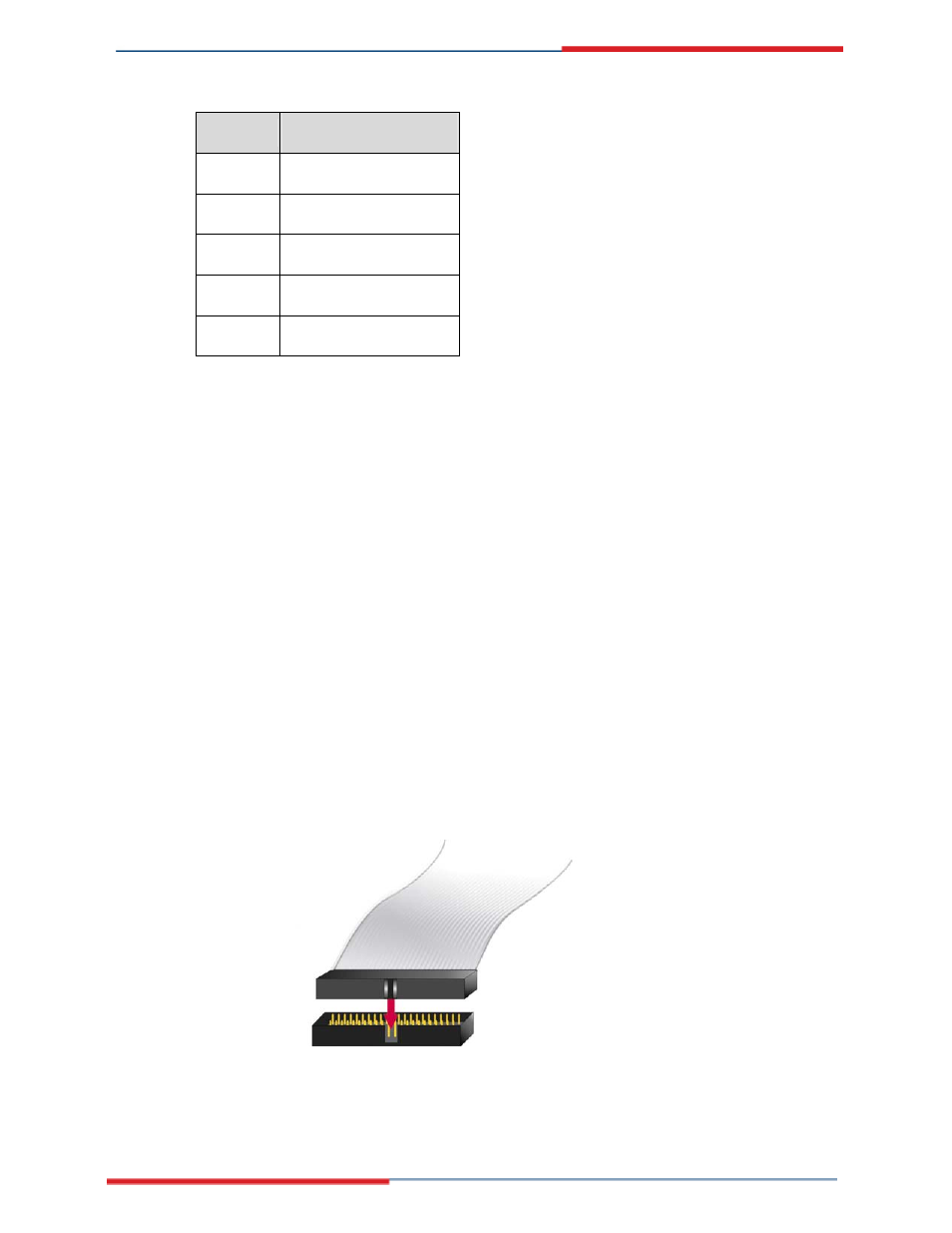

Figure 4-2: Connection of IDE1 Connector
