KINO-LX Motherboard
3.2.9 Inverter Power Connector
CN Label: CN12
CN Type: 5-pin wafer
CN Location: See Figure 3-10
CN Pinouts: See Table 3-12
The inverter connector is connected to the LCD backlight.

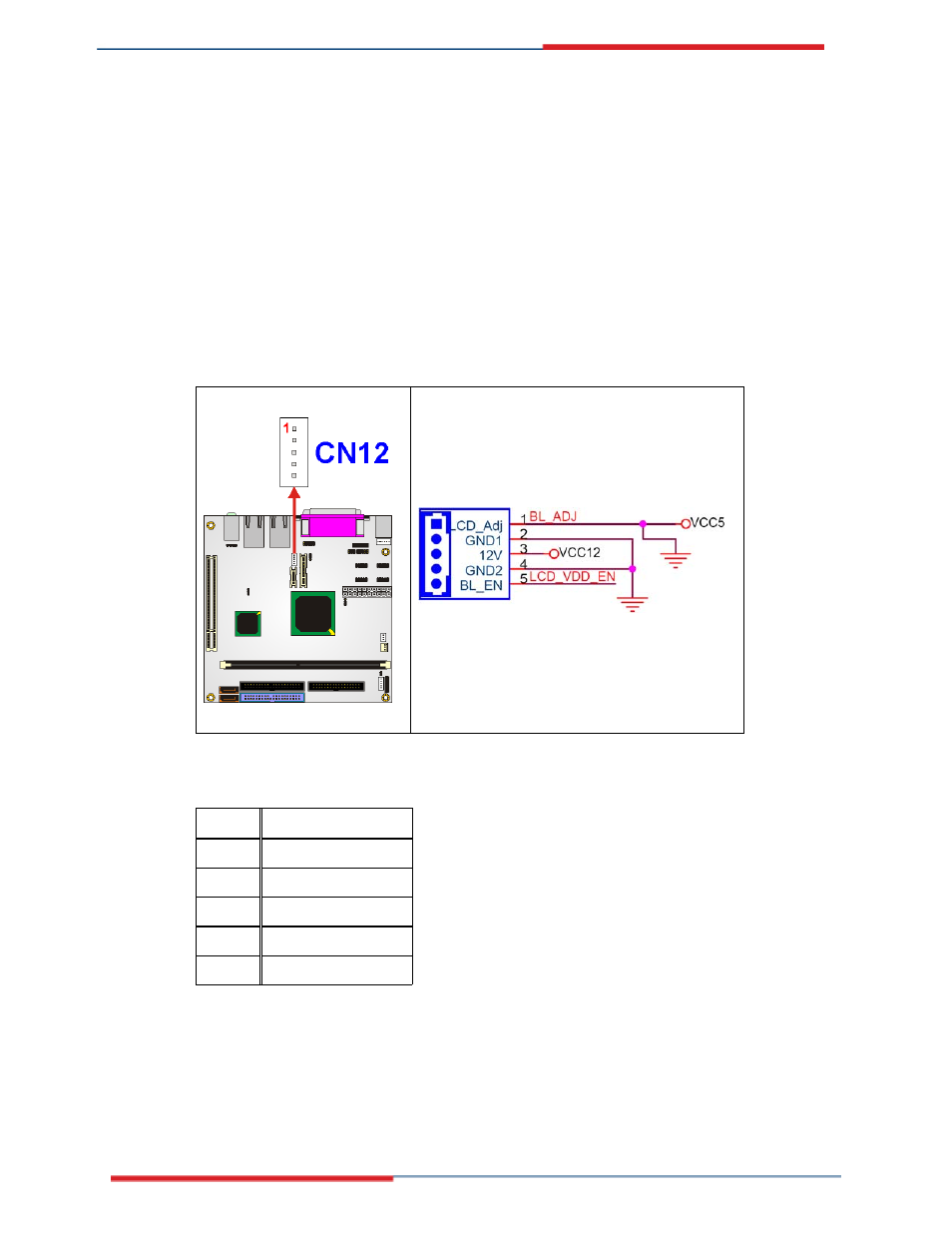

Figure 3-10: Inverter Connector Locations
PIN DESCRIPTION
1 ADJ (Def : GND)
2 GND
3 +12V
4 GND
5 BL_EN
Table 3-12: Inverter Power Connector Pinouts
