KINO-LX Motherboard
PIN DESCRIPTION
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
Table 3-19: SATA Drive Connector Pinouts

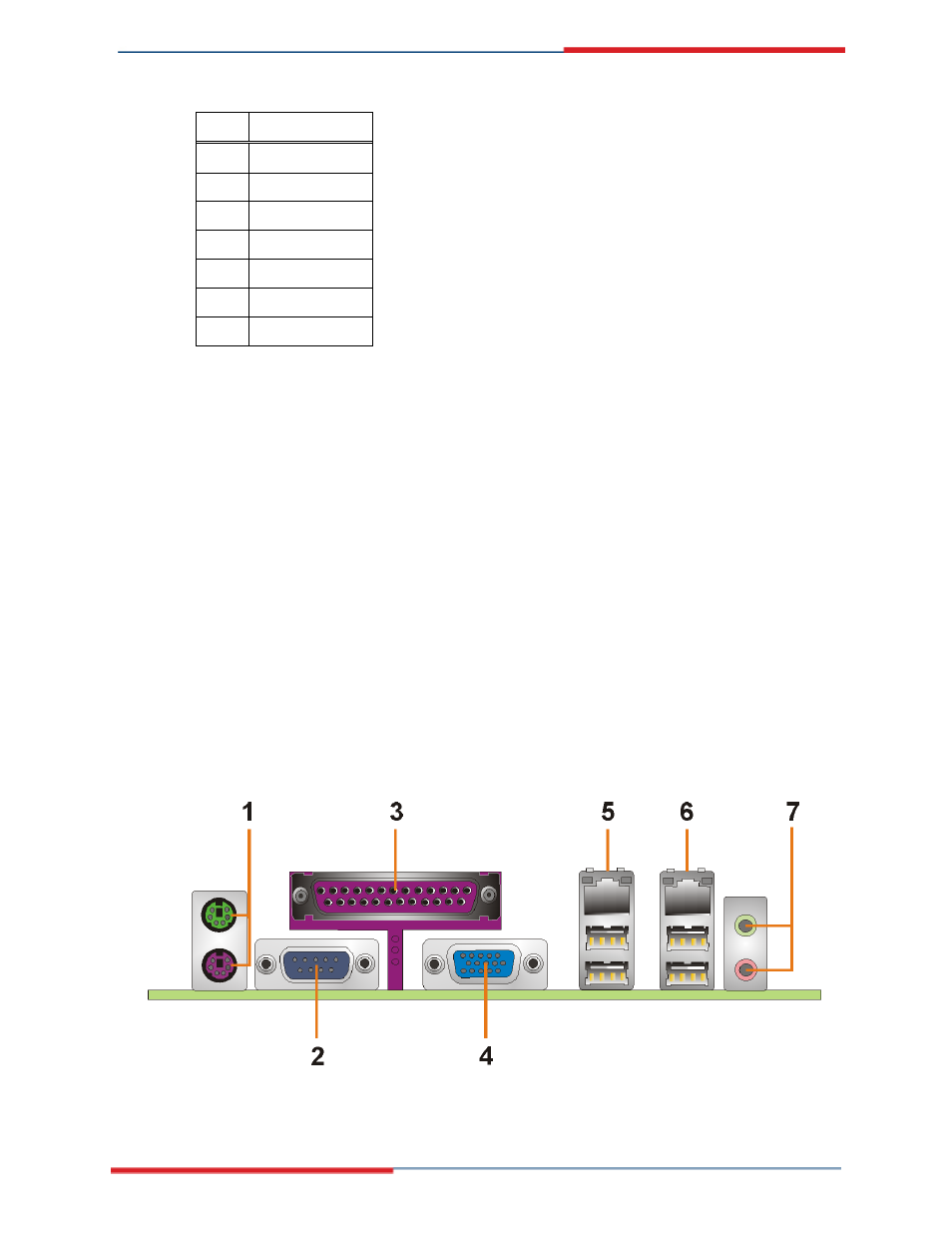

3.3 External Peripheral Interface Connector Panel
1 x PS/2 keyboard and mouse connector
1 x Serial port connector
1 x Parallel port connector
1 x VGA connector
2 x RJ-45 GbE connector
4 x USB connectors
1 x Audio connector (two audio jacks)
