Page 38
IEI® Technology, Corp.
KINO-LX Motherboard
3.1 Peripheral Interface Connectors
Section 3.1.1 shows peripheral interface connector locations. Section 3.1.2 lists all the
peripheral interface connectors seen in Section 3.1.1.
3.1.1 Layout

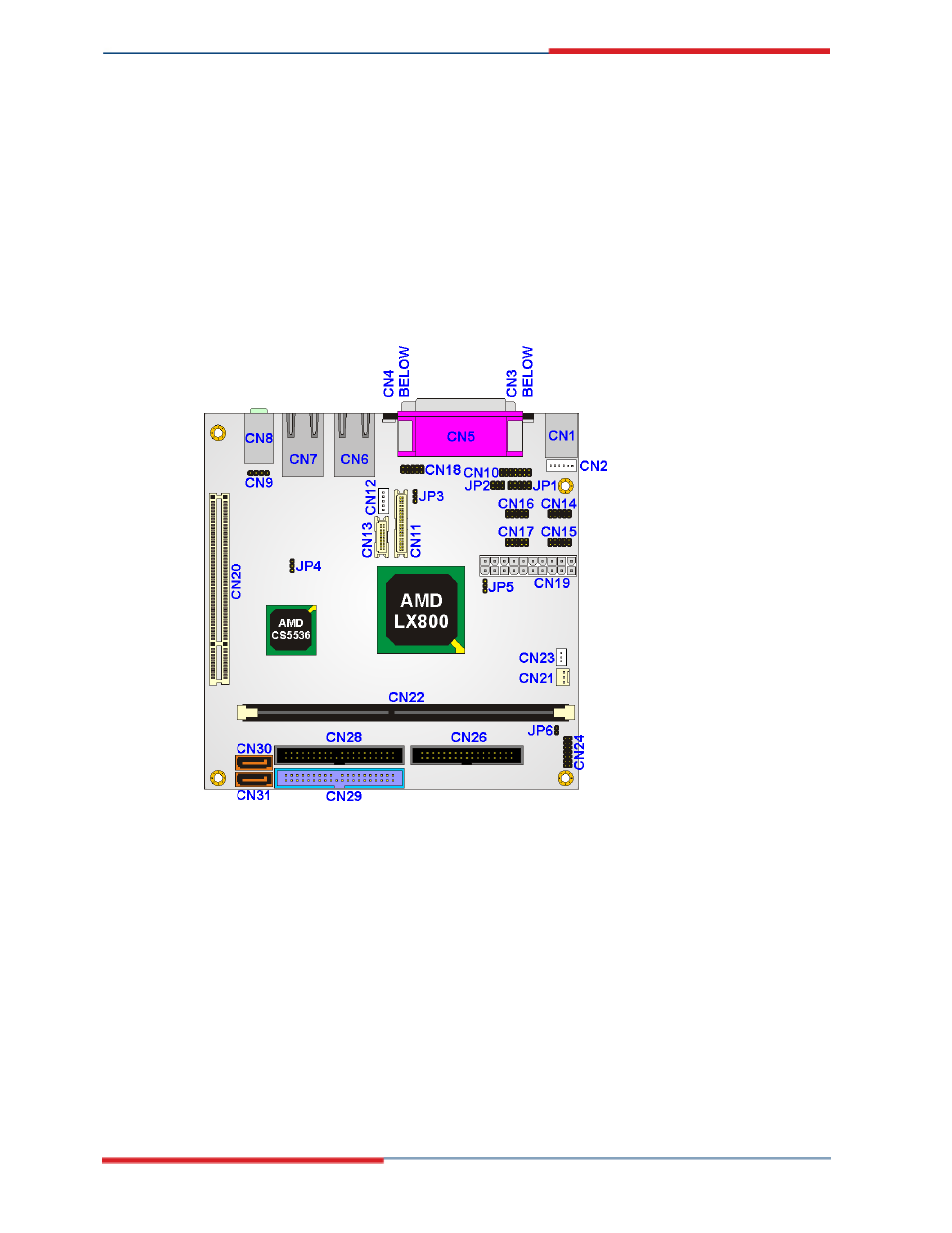

Figure 3-1 shows the on-board peripheral connectors and on-board jumpers.
Figure 3-1: Connector and Jumper Locations
3.1.2 Peripheral Interface Connectors
