Magnum “14” 10Mb Media Converters Installation and User Guide (04/01)
19
w w w G arrettC om com . .
enabling an installer to see the LINK (or no-LINK) status of each port and each piece of
cable independently. This is ideal for the installer. But it introduces a discontinuity for
the managed network software which wants to “see through” the media converter and
wants to treat it as part of the cable attached to a particular port.
The Link-Pass-through model, TF14-LP, provides the LINK “see-through”
feature desired for managed networks. On these models, either both LINK LEDs are lit
or neither is lit. And, the TF14-LP operates in transparent half- and full-duplex mode.

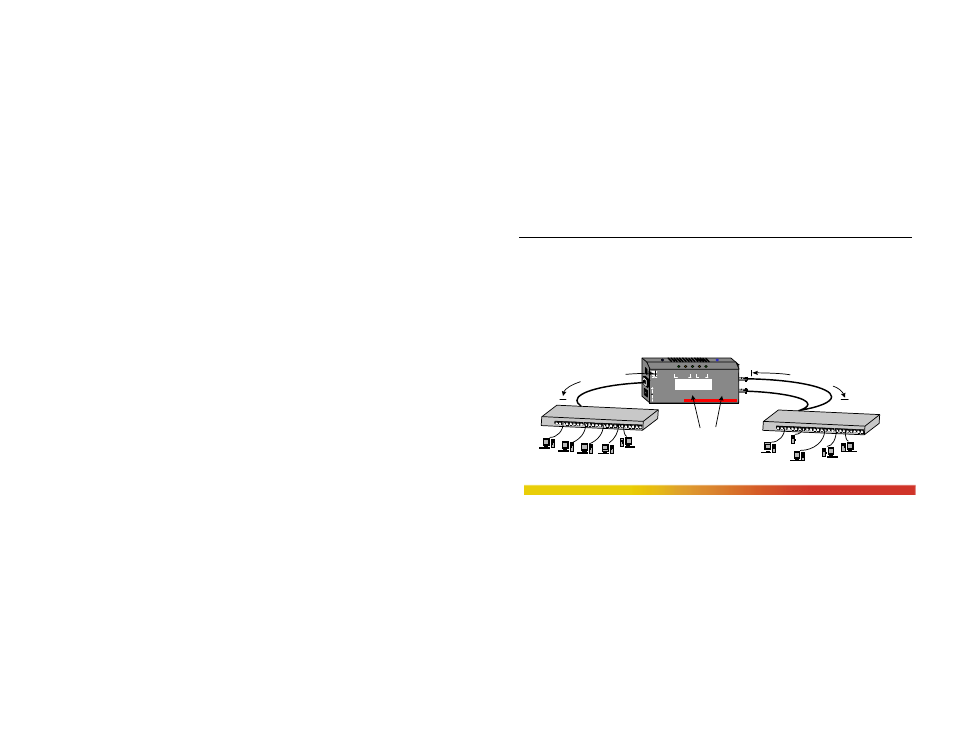

The following diagram illustrates the standard condition, no Link Pass-through.
This diagram illustrates the Link Pass-through feature.
G A R R E T T 9 V DC .
3 AM
P
M a gn u m TF 1 4
M e dia C on v e rte r
Li nk RX
TX
RX Li nk Pwr
RX T W I S T ED P A I R F IB ER U P LI N K
1 2 3 4 5 6 7 8 9 1 0 1 1 12 1 3 14 15 16 1 7 18 19 20 21 22 23 2 4
1 2 3 4 5 6 7 8 9 1 0 1 1 12 1 3 14 15 16 1 7 18 19 20 21 22 23 2 4
F iber
T w isted P air
T w o L IN K L ED ’s, one
for each C able Segm ent
L IN K Segm ent-2
