Magnum “14” 10Mb Media Converters Installation and User Guide (04/01)
12
w w w G arrettC om com . .
(or crossover) switch on the RJ-45 port simplifies cable installation and connection.
All fiber models operate in transparent full- or half-duplex mode, supporting
matched sets of either mode type, i.e., attached devices are either both full-duplex or both
half-duplex.

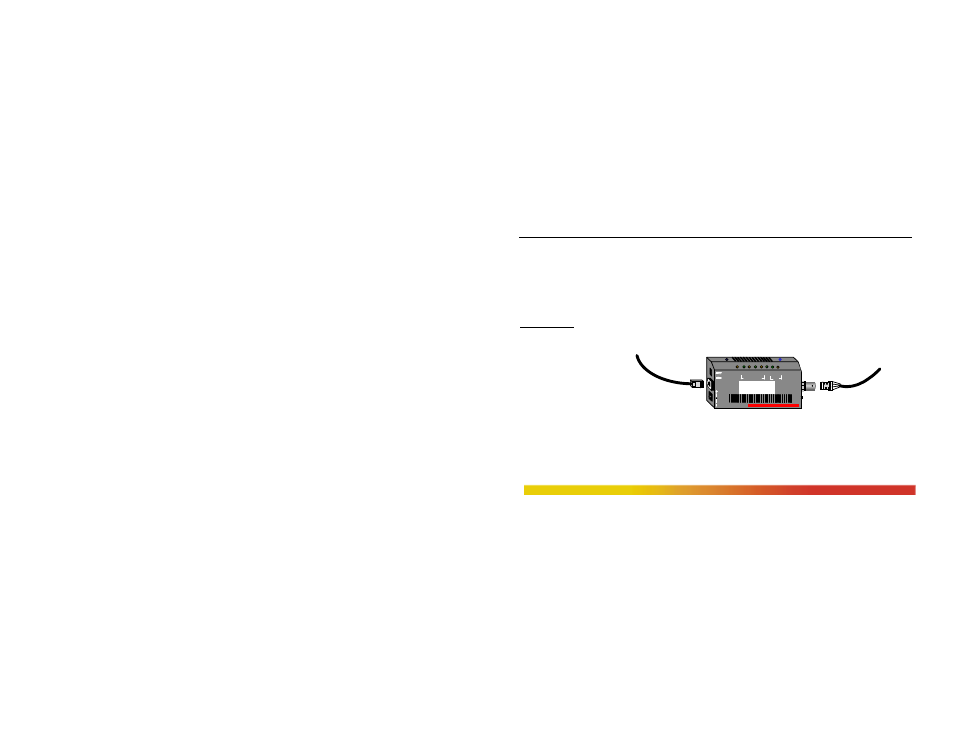

BNC model:
The
Magnum TB14 is
equipped with one
BNC and one RJ-45
port. The BNC port
has an internal
termination switch, allowing BNC attachment without a “T” connector. The BNC
connector complies with IEEE 802.3 10BASE2 specifications.
ThinNet-BNC
(10BASE-2)
Twisted Pair
(10BASE-T) Po
l
GARRETT
Magnum TB14
Media Converter
Co
l
RX Co
l RX Po
l
Li n k
Pw
r
Ja
b
TWISTED PAIR COAX
U P L IN K
INT E XT
