model g1183/g1276 (mfg. since 3/10)
-19-

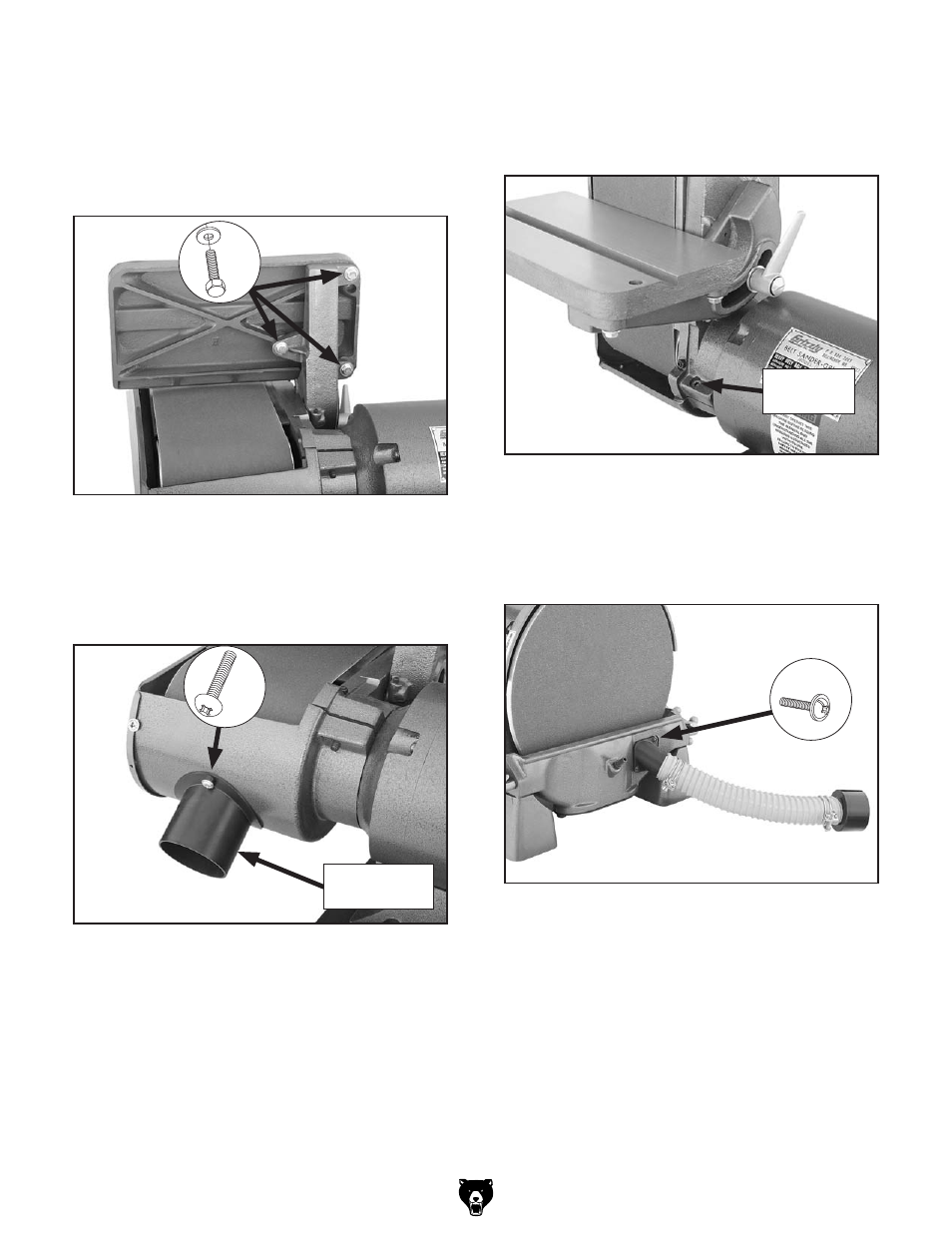

4. attach the sanding belt table to the trunnion
by finger tightening the (3) 5 ⁄
16
"-11 x 1" hex
bolts and 5 ⁄
16
" flat washers from underneath
the table, as shown in figure 14. the hex
bolts will be fully tightened when aligning the
tables in later steps.
figure 14. sanding belt table installed.
x 3
5. attach the 3" dust port to the bottom of
the sanding belt housing with the (2) 1 ⁄
4
"-
20 x 1 ⁄
2
" phillips head screws, as shown in
figure 15.
6. loosen the sanding belt pivot cap screw
shown in figure 16, rotate the sanding belt
assembly to the vertical position, then re-
tighten the cap screw to hold it place.
7. attach the dust hose assembly to the lower
disc bracket with the (2) #10-24 x 3 ⁄
8
" flange
screws, as shown in figure 17.
figure 15. sanding belt dust port attached.
sanding Belt
dust port
x 2
figure 16. location of the sanding belt pivot cap
screw.
pivot
Cap screw
figure 17. sanding disc dust hose assembly
attached.
x 2
