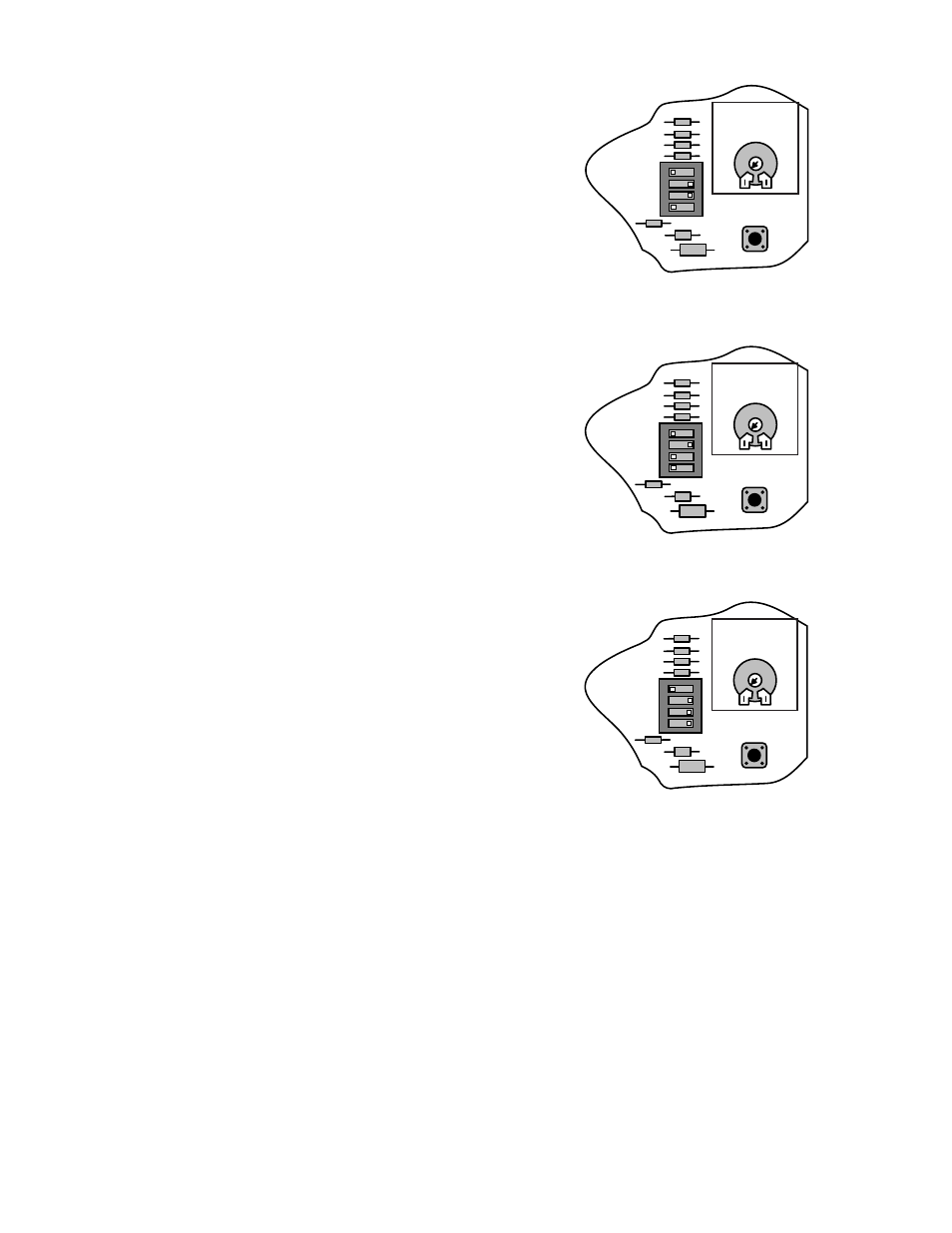

Your automatic gate operator system is configured for dual pull-to-open gates.
FIRST OPERATOR OPENS FIRST,
SECOND OPERATOR CLOSES FIRST
SEQ1 = OFF SEQ2 = ON
If SEQ1 is set to OFF, and SEQ2 is set to ON, the FIRST
OPERATOR will open first, and the SECOND OPERATOR
will close first (see illustration).
FIRST OPERATOR OPENS FIRST,
FIRST OPERATOR CLOSES FIRST
SEQ1 = ON SEQ2 = ON
If SEQ1 is set to ON, and SEQ2 is set to ON, The FIRST
OPERATOR opens and closes first.
BOTH OPERATORS OPEN SIMULTANEOUSLY
SECOND OPERATOR CLOSES FIRST
SEQ1 = OFF SEQ2 = OFF
If both SEQ1 and SEQ2 are set to OFF, the FIRST OPERATOR and
SECOND OPERATOR open simultaneously. The SECOND
OPERATOR will close first.
STEP D-11
Replace the control box cover. Turn the control box power switch to ON. Set the closed
gate positions for the first and second operators by adjusting the limit switch
(review step 30).
