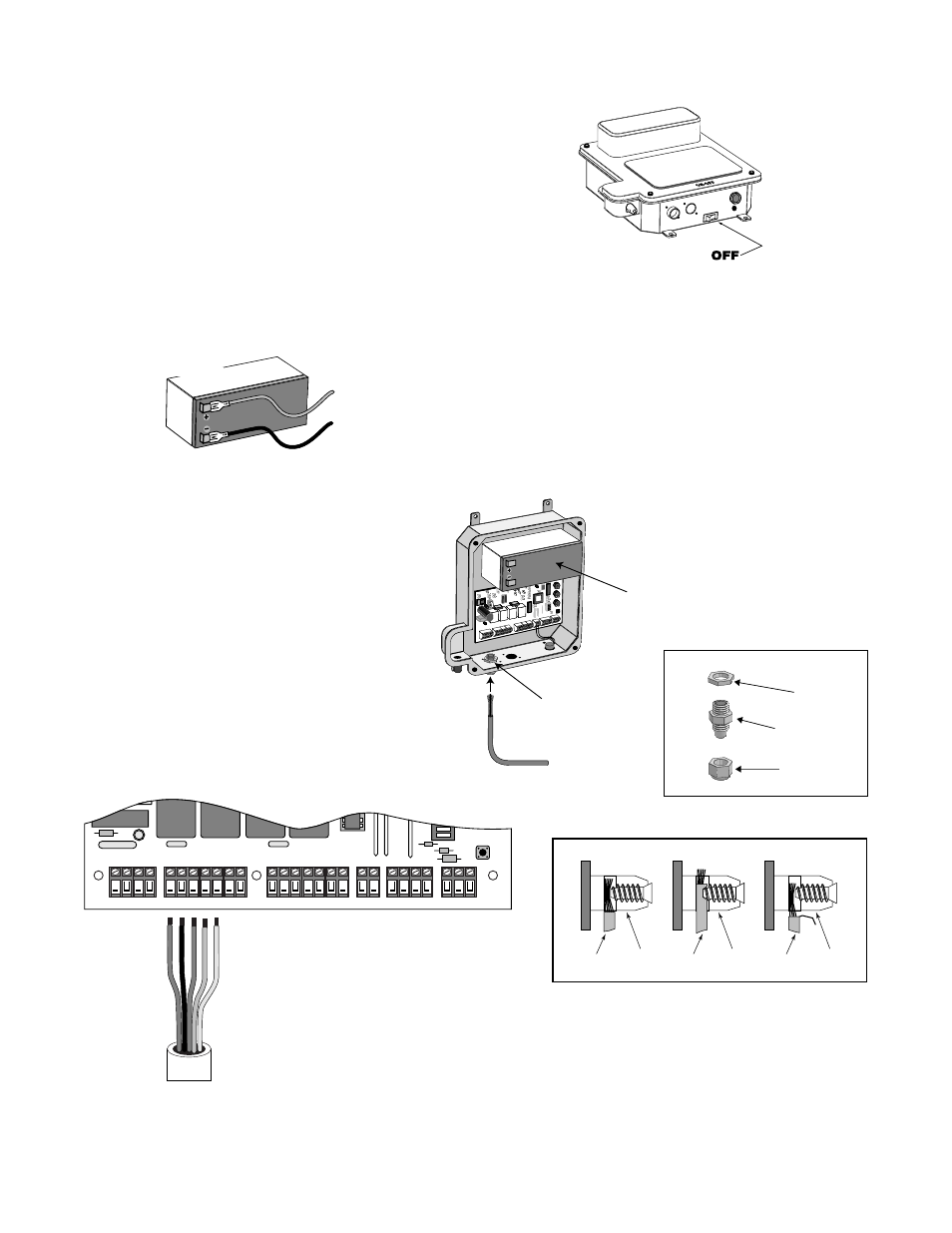

Step 17
Make sure the control box power switch is in the OFF
position. Unscrew and remove the control box cover and
slide the battery into position with its terminals to the left (see
illustration). Push battery down until it fits snugly in control
box. Connect the BLACK battery wire to the NEGATIVE
(–) battery terminal. Connect the RED battery wire to the
POSITIVE (+) terminal.
Pay close attention to the color of the wires. If the wires are
connected incorrectly, the control board will be damaged.
NEVER insert the battery with the terminals to the right.
Step 18
Strip approximately 3/16" of insulation from each
wire of the power cable. Twist each exposed wire
tightly (there are five [5] wires inside the power
cable sheath). Remove lock nut from strain relief
hub. Insert strain relief hub and sealing nut (along
with power cable) into hole on bottom of control
box. Thread approximately 4" of the power cable
into the control box and retighten lock nut and
sealing nut until the power cable locks into place.
RED wire to POSITIVE (+) terminal
BLACK wire to NEGATIVE (–) terminal
RED
BLACK
Operator Power Cable
R E D B L K O R G B L U G R N C L S E D G
O P N E D G
R E D G R N O R G B L U W H T
B L K O R G B L U G R N C L S E D G
O P N E D G
LEARN
AUTO
CLOSE
INERTI A
STATU S STATUS
BATT BATT + –
OBSTR . SENS.
RCVR
R G B
ALARM
SECOND OPERATOR
FIRST OPERATOR POWE R IN
18VAC SOLA R ~ ~ – + ACCESSORY
PWR. S W. PWR. SW.
Strain Relief
12 V Battery
Step 19
Insert the stripped power cable wires into the
appropriate terminals on the FIRST OPERATOR
terminal block. The green wire should be inserted
into the GRN terminal, the blue wire into BLU, the
orange wire into ORG, black wire into BLK, and
the red wire into the RED terminal.
Tighten the set screws against the end of the wires.
A dab of petroleum jelly on each terminal will help
prevent corrosion.
HINT: A dab of household petroleum jelly
on the battery terminals will help prevent
corrosion.
Sealing Nut
Hub
Lock Nut
Strain Relief
Correct Wrong Wrong
Wire
Terminal
Block
Terminal
Block
Terminal
Block Wire Wire
ON
SECOND OPERATOR FIRST OPERATOR POWER IN ALARM ACCESSORY RCVR
SEQ1
SEQ2
LEARN
18VAC SOLAR ~ ~ – +
RED BLK ORG BLU GRN CLS EDG OPN EDG RED BLK BLU ORG ORG BLU WHT GRN GRN CLS EDG OPN EDG R B G
Power Cable
from First Operator
Step 20: Verify that the control box power switch is OFF before proceeding to the next step!
