Step 14:

Remove the hairpin clip and clevis pin
from the gate bracket and move the
gate so that you can install the open
position stop post. Secure stop post in
the ground (and seat in concrete).

Installing the Open and Closed Position Stops

Step 13:

With the gate still in the open position, measure approxi-
mately 3/4 of the distance to the end of the gate from the
hinges and place a mark on the ground directly under the gate
(refer to the overview illustration below for positioning). You
will install an open-position stop post at this point. The open
position stop post can be made of wood, metal, or concrete.

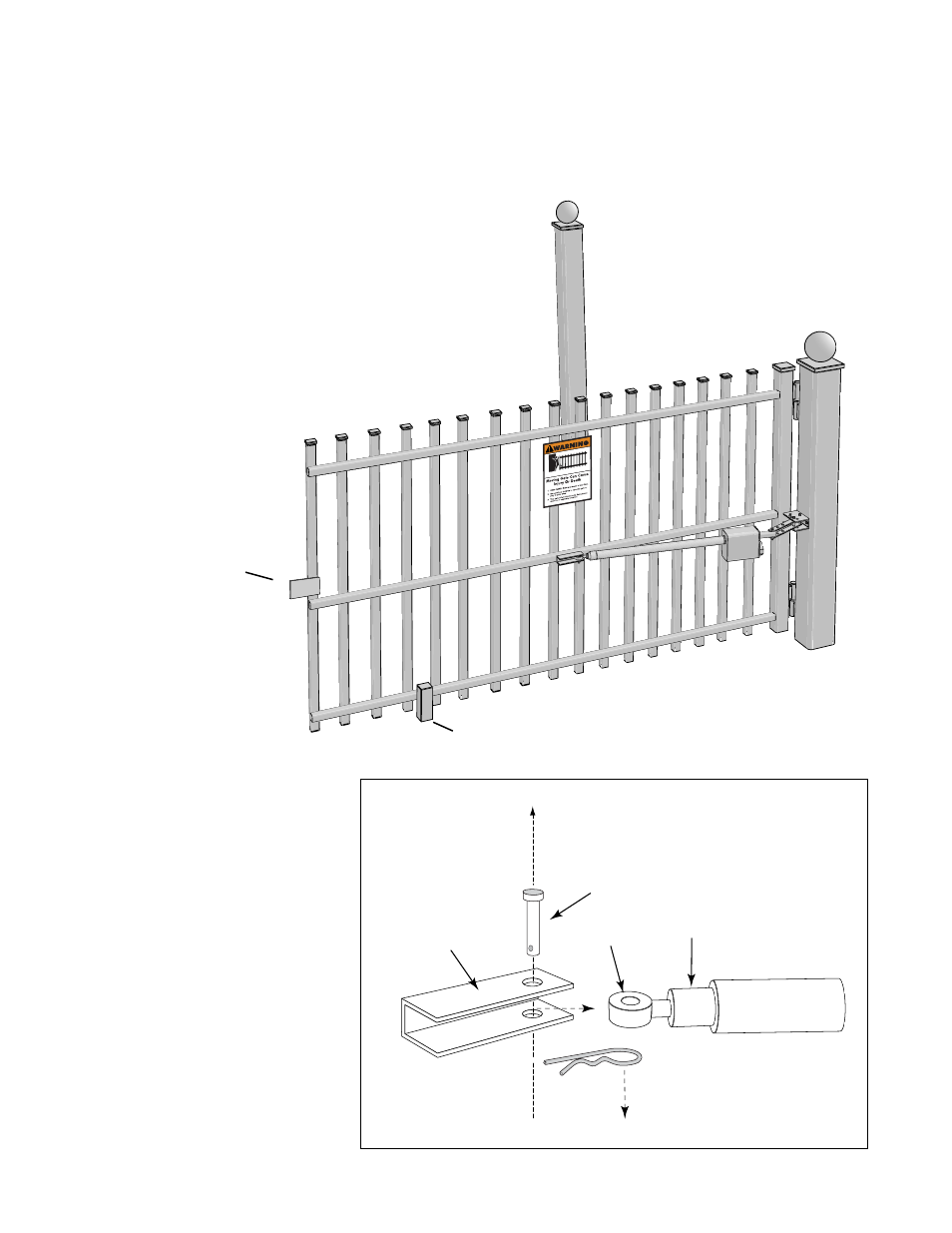

Closed Position Stop

Open Position Stop

Hairpin Clip

Clevis Pin

Gate Bracket

Front Mount

Push-Pull Tube

The positive stops hold the gate firmly in the open and closed positions. The positive stops also form the boundaries of the gate
operating arc and help stabilize the gate. Moreover, a stable gate helps to maintain the long life of your automatic gate opener
system. To further enhance the stability and security of your gate, install the optional GTO Automatic Gate Lock (see
Accessory Catalog
).
