CONTROL BOARD SETTINGS
The four DIP switches on the control board match the operator with the type of gate on which it is
installed. For example, gates may pull-to-open or push-to-open. Prior to packaging, the GTO/PRO
2000 series control board was configured for single swing gates that pull-to-open (open into the prop-
erty). If your gate type matches this configuration, you DO NOT need to adjust the DIP switches;
Proceed to the Potentiometers section on the next page.
NOTE: To change the DIP switch settings, you must turn
the control box power switch OFF; move the switch; then
turn the power back ON. Use a small screwdriver to move
the switches.
PULL/PUSH: Set to PULL for swing gates that pull-to-
open [factory setting]; PUSH for swing gates that push-to-
open (see Push to Open Installation on pages 31-32).
NOTE: The direction a gate opens is determined by standing
inside the property and facing toward the gate.
SNGL/DUAL: Set to SNGL for a single gate leaf [factory
setting]; DUAL for dual gate leaves.
SEQ1: Controls the opening order of dual gate leaves. See
Dual Gate System Installation on page 40 for more infor-
mation. (the factory setting is OFF).
SEQ2: Controls the opening order of dual gate leaves. See Dual
Gate System Installation on page 40 for more information
(the factory setting is OFF).

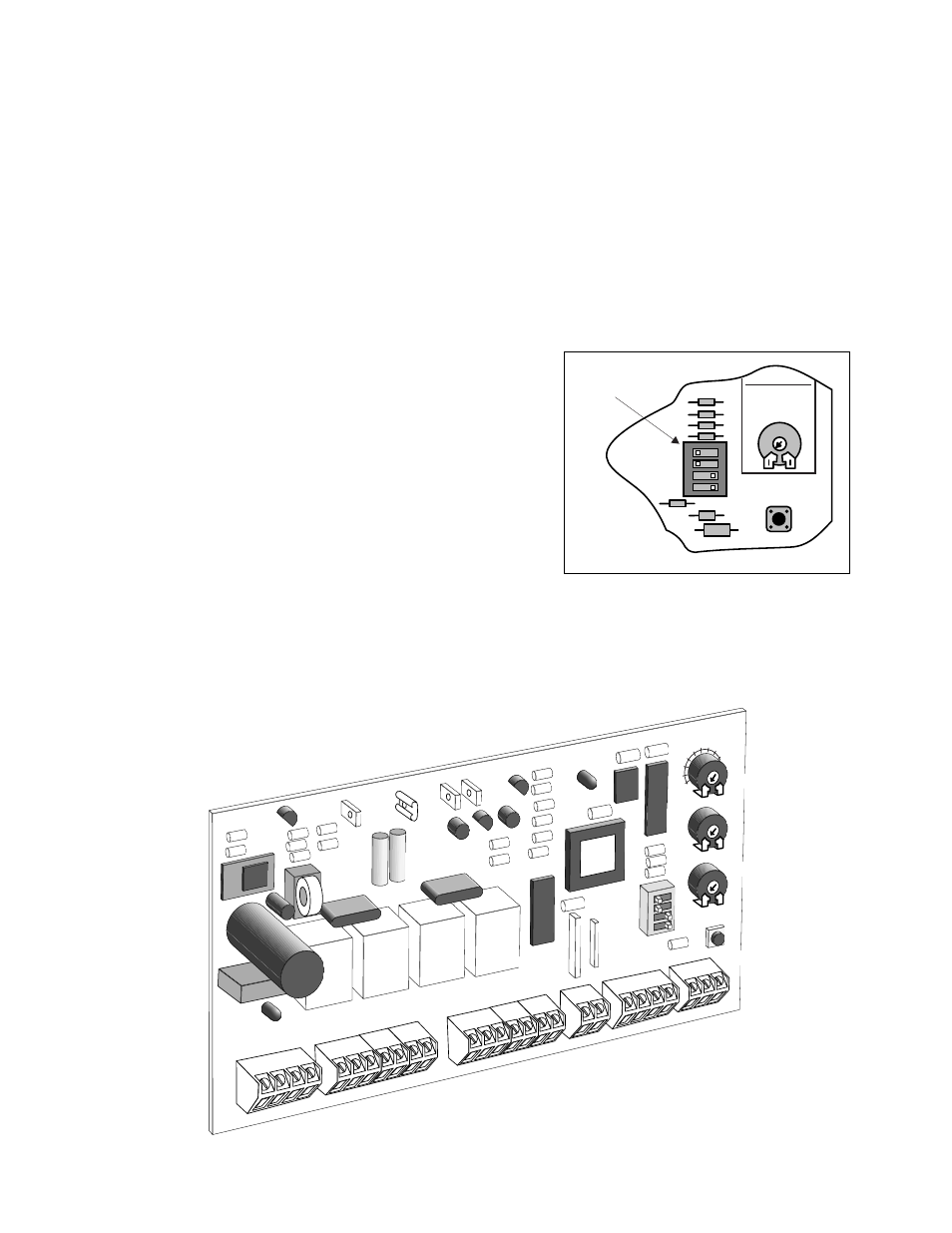

DIP Switches
RED
BLK
ORG
BLU
GRN
CLS EDG
OPN EDG
RED
GRN
ORG
BLU
WHT
BLK
ORG
BLU
GRN
CLS EDG
OPN EDG
LEARN
AUTOCLOSE
INERTIA
STATUS
PULL/P
USH
SNGL/D
UAL
SEQ1
SEQ2
MIN
MAX
MIN
MAX
OFF
60
120
BATT
+
–
OBSTRUCT
SENS.
RCVR
R B
G
ALARM
SECOND OPERATOR
FIRST OPERATOR
POWER IN
18VAC
SOLA
R
~ ~
– +
ACCESSORY
PWR. SW.
1234
ON
OBSTRUCT
SENS.
PULL/PUSH
SEQ1
SNGL/DUAL
SEQ2
LEARN
DIP switches
MIN
MAX
