Hardware Installation Process
English

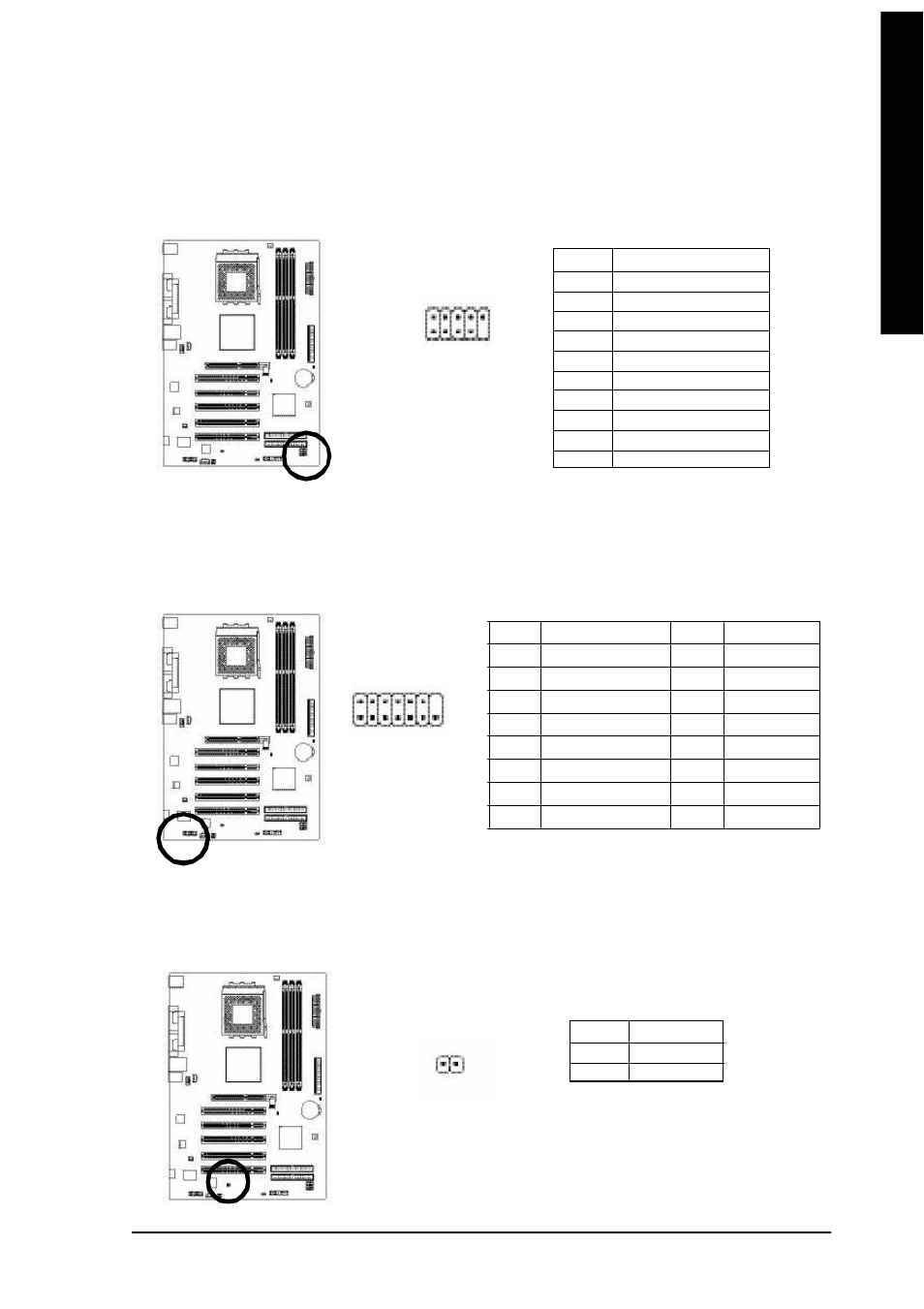

15) GAME (Game Connector)
This connector supports joystick, MIDI keyboard and other relate audio devices. Check the pin
assignment while you connect the game cables. Please contact your nearest dealer for optional
gam e cables.
14) F_ USB1 / F_USB2 (Front USB Connector)
Be careful with the polarity of the F_USB connector. Check the pin assignment carefully while you
connect the F_USB cable, incorrect connection between the cable and connector will make the
device unable to work or even damage it. For optional F_USB cable, please contact your local
dealer.
1
2
9
1 0
Pin No.
Definition
1
Power
2
Power
3
USB0 DX-/USB2 DX-
4
USB1 Dy-/USB3 Dy-
5
USB0 DX+/USB2 DX+
6
USB1 Dy+/USB3 Dy+
7
GND
8
GND
9
No Pin
10
NC
1
2
1 5
1 6
Pin No.
Definition
1
VCC
2
GRX1_R
3
GND
4
GPSA2
5
VCC
6
GPX2_R
7
GPY2_R
8
MSI_R
Pin No.
Definition
9
GPSA1
10
GND
11
GPY1_R
12
VCC
13
GPSB1
14
MSO_R
15
GPSB2
16
No Pin
16) CI (Chassis Intrusion, Case Open)
This 2-pin connector allows your system to enable or disable the "case open" item in BIOS if the
system case begin rem ove.
1
Pin No.
Definition
1
Signal
2
GND
